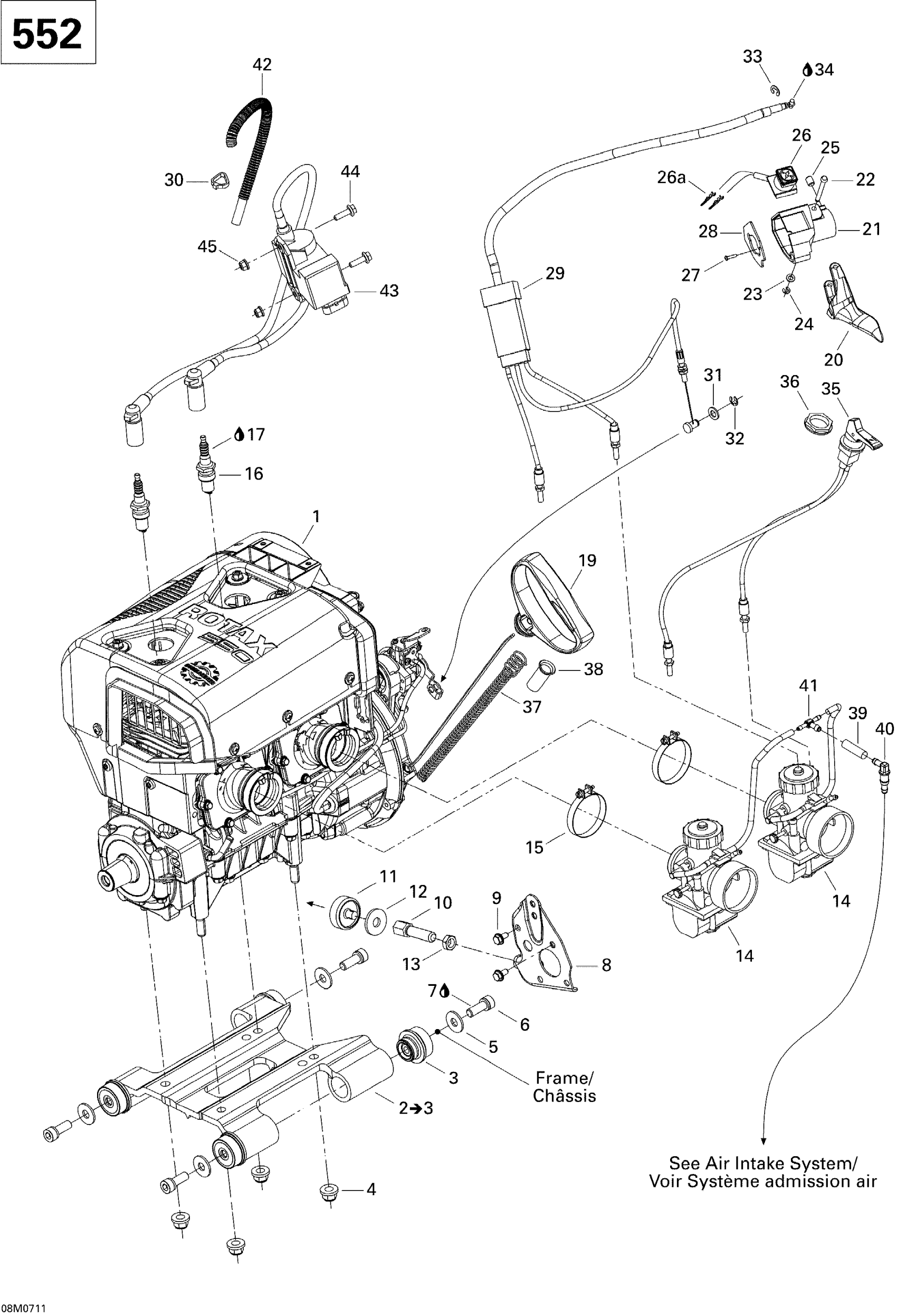

Ski-Doo Summit 550F, 2007 Engine And Engine Support Diagram

#

Description
Price

1

Engine 552

400509770

Unavailable

2

ENGINE SUPPORT - Call your local BRP dealership | Includes 2 to 3

512060034

Unavailable

3

Rubber Mount

512059691

$43.25

4

Hex. Flange Elastic Nut M10

233201414

$1.45

5

Flat Washer M10 | 4X4

250200014

$1.34

6

TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership

235202544

Unavailable

7

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

8

Support Plate

512059910

Unavailable

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

10

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

11

STOPPER - Call your local BRP dealership

512059610

Unavailable

12

WASHER - Call your local BRP dealership

512059057

Unavailable

13

Nut Hexagonal RH.

232026414

$1.43

14

CARBURETOR VM34-617 - Call your local BRP dealership

403138772

Unavailable

14

CARBURATOR VM34-616 - Call your local BRP dealership

403138773

Unavailable

15

Gemi Clamp | Not Shown

512059834

$10.21

16

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.63

17

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

19

Starter Grip

572084400

$14.10

20

Handle Ass'y

512060214

$114.15

21

Throttle Housing

512060603

$10.25

22

Lever Pin

414438700

$10.81

23

Flat Washer M5, Stainless

234051600

$0.73

24

Circlip

293370050

$0.45

25

Socket Set Screw M8 X 10

414440800

$3.88

26

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

26a

Male Terminal

515175232

$1.45

27

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

28

Plate

512060390

$9.03

29

THROTTLE CABLE - Call your local BRP dealership

512059973

Unavailable

30

Tie-Rap 180 mm

414115200

$0.10

31

Flat Washer 8 mm, Nylon

234081100

$1.15

32

Circlip

414753500

$0.67

33

Circlip

414274500

$0.85

34

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

35

CHOKE CABLE - Call your local BRP dealership

512059914

Unavailable

36

Plastic Nut

512060671

$0.96

37

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

38

TUBE - Call your local BRP dealership

512059536

Unavailable

39

Polyurethane Hose 10000Mm Long

219704410

$52.96

40

Elbow Male Connector

414580600

$4.01

41

T-Fitting

572045500

$7.09

42

Was 409901700 Tubing (9 mm)

219704399

$77.58

43

Calibrated Module

512060040

$479.99

43

Calibrated Module

512060042

$479.99

44

Hex. Flange Screw M6 X 20

207662044

$1.91

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
