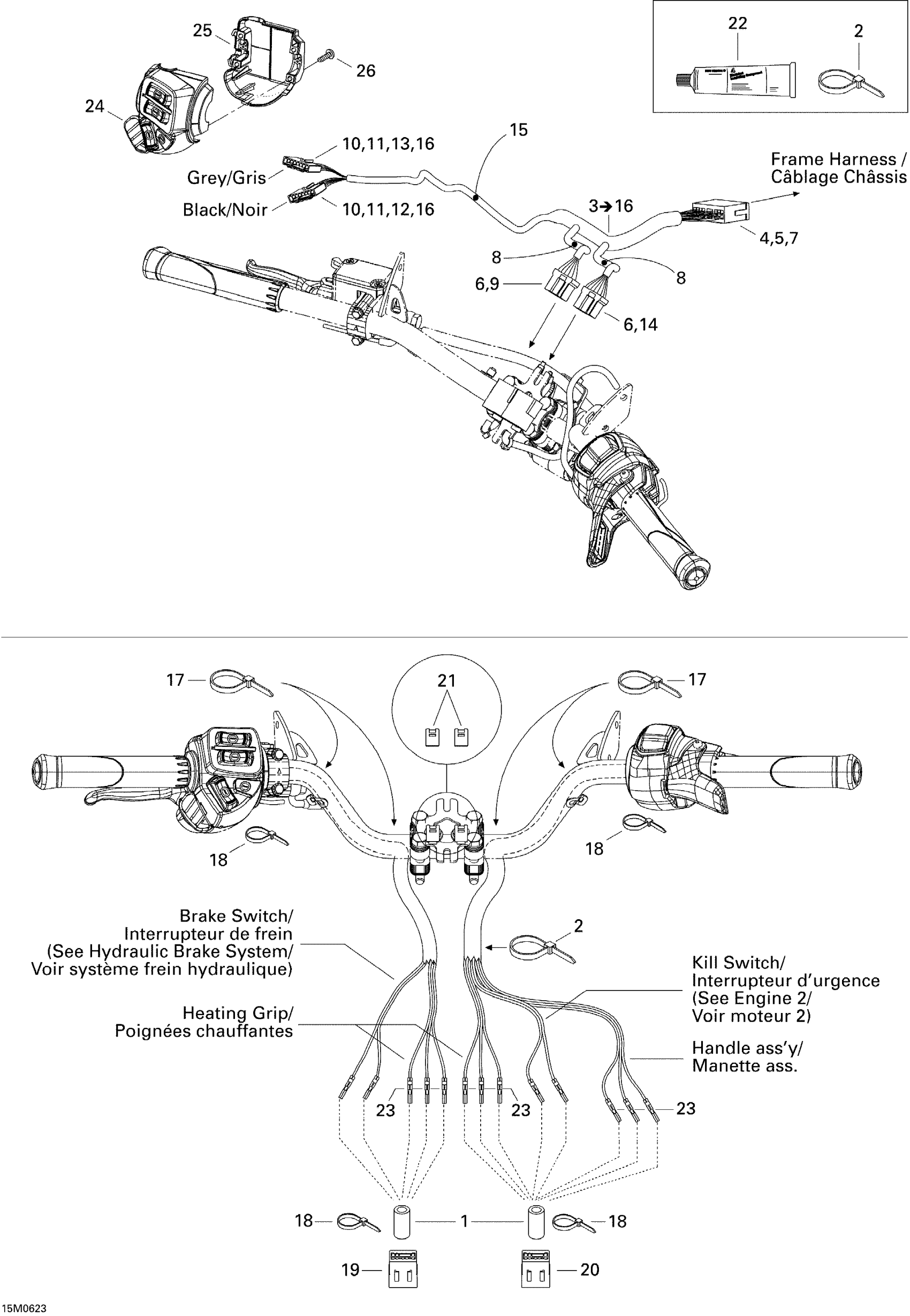

Ski-Doo Summit 550F, 2006 10- Steering Wiring Harness Diagram

#

Description
Price

1

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

2

Tie Wrap 368 mm

293750008

$1.04

3

STEERING WIRING HARNESS - Call your local BRP dealership | Includes 16 to 29

515176309

Unavailable

4

Male Terminal

515175232

$1.58

5

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

6

Female Terminal

515175231

$4.39

7

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

8

Tubing 10 MM 1000MM Long

219704407

$2.79

9

Female Terminal Housing, 6 Circuits

515175543

$9.49

10

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

11

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

12

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

13

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

14

Female Terminal Housing, 8 Circuits

515175819

$7.62

15

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

16

Female Terminal

515175941

$2.69

17

Tie-Rap 180 mm

414115200

$0.11

18

Tie Wrap 142 mm

293750002

$1.25

19

Male Terminal Housing, 6 Circuits

515175662

$8.79

20

Male Terminal Housing, 8 Circuits

515175817

$8.79

21

HOUSING SUPPORT - Call your local BRP dealership

515175944

Unavailable

22

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

23

Male Terminal

515175232

$1.58

24

LH Housing

515177021

$229.99

25

Switch Housing Plate

515175926

$20.99

26

Torx Screw #8-18

250000263

$1.04
