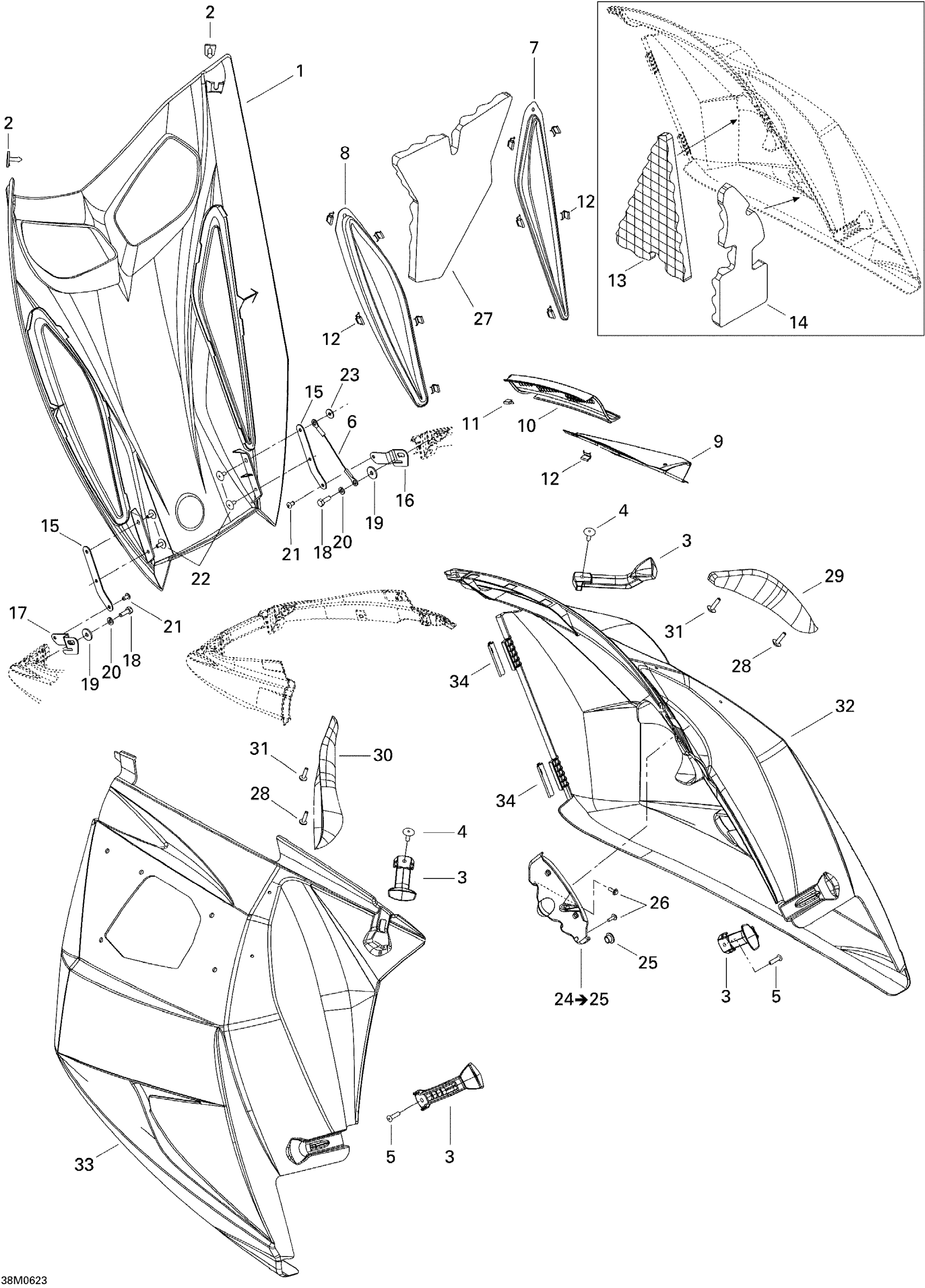

Ski-Doo Summit 550F, 2006 09- Hood Diagram

Hood, Black

517302788

$234.99

ROD_RETAINING - Call your local BRP dealership

517302543

Unavailable

Panel Latch

517302448

$14.99

Pop Rivet 3/16”

293150087

$0.93

Pop Rivet 3/16”

390410100

$0.57

RETAINER CABLE - Call your local BRP dealership

517302673

Unavailable

RH HOOD GRILL - Call your local BRP dealership

517302936

Unavailable

LH HOOD GRILL - Call your local BRP dealership

517302937

Unavailable

RH PANEL GRILL - Call your local BRP dealership

517302938

Unavailable

AIR INTAKE GRILL - Call your local BRP dealership

509000333

Unavailable

Clip | Europe Models

517306751

$2.09

CLIP - Call your local BRP dealership

517302789

Unavailable

RH PANEL FRONT FOAM - Call your local BRP dealership

517303082

Unavailable

RH PANEL REAR FOAM - Call your local BRP dealership

517303492

Unavailable

UPPER HALF-HINGE - Call your local BRP dealership

517302544

Unavailable

RH HINGE ASS'Y - Call your local BRP dealership

517303668

Unavailable

LH Lower Half-Hinge

517302445

Unavailable

Hex. Screw M6 X 18

207161844

$0.76

Flat Washer

224061121

$0.53

Lock Washer M6, Black

234161471

$0.53

Avex Rivet

390909200

$0.30

Pop Rivet 3/16"

390406500

$0.88

Flat Washer

517225900

$0.18

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

Black, Cap

275500241

$3.49

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

Hood Foam

517303466

Unavailable

Phillips Screw K40 X 16

250000723

$0.98

RH AIR DEFLECTOR - Call your local BRP dealership

517302800

Unavailable

LH AIR DEFLECTOR - Call your local BRP dealership

517302801

Unavailable

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

RH PANEL, BLACK - Call your local BRP dealership

517303254

Unavailable

LH PANEL, BLACK - Call your local BRP dealership

517303255

Unavailable

Hinge Lock

517302823

$13.99
