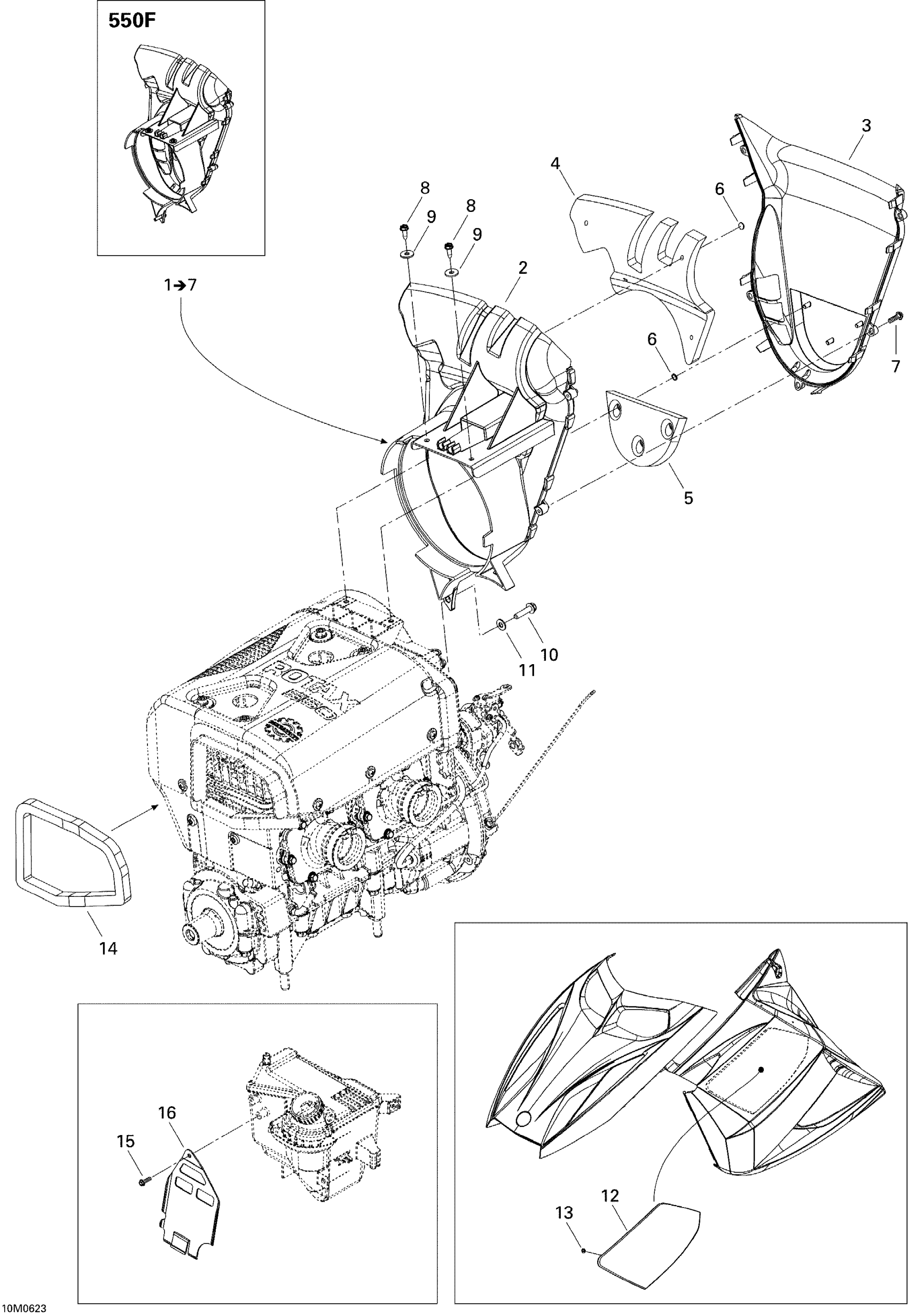

Ski-Doo Summit 550F, 2006 01- Cooling System Diagram

#

Description
Price

1

Duct Inlet Ass'y | Includes 1 to 7

509000274

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Push Nut

389804300

$0.53

7

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

8

Self Tapping Screw #8 X 5/8

250000202

$1.48

9

Washer | DS 650 X

391301600

$0.48

10

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

11

Flat Washer

224061121

$0.53

12

AIR OUTLET DEFLECTOR - Call your local BRP dealership

509000318

Unavailable

13

Push Nut

732610072

$2.19

14

Engine Foam

508000450

Unavailable

15

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

16

DEFLECTOR - Call your local BRP dealership

509000257

Unavailable
