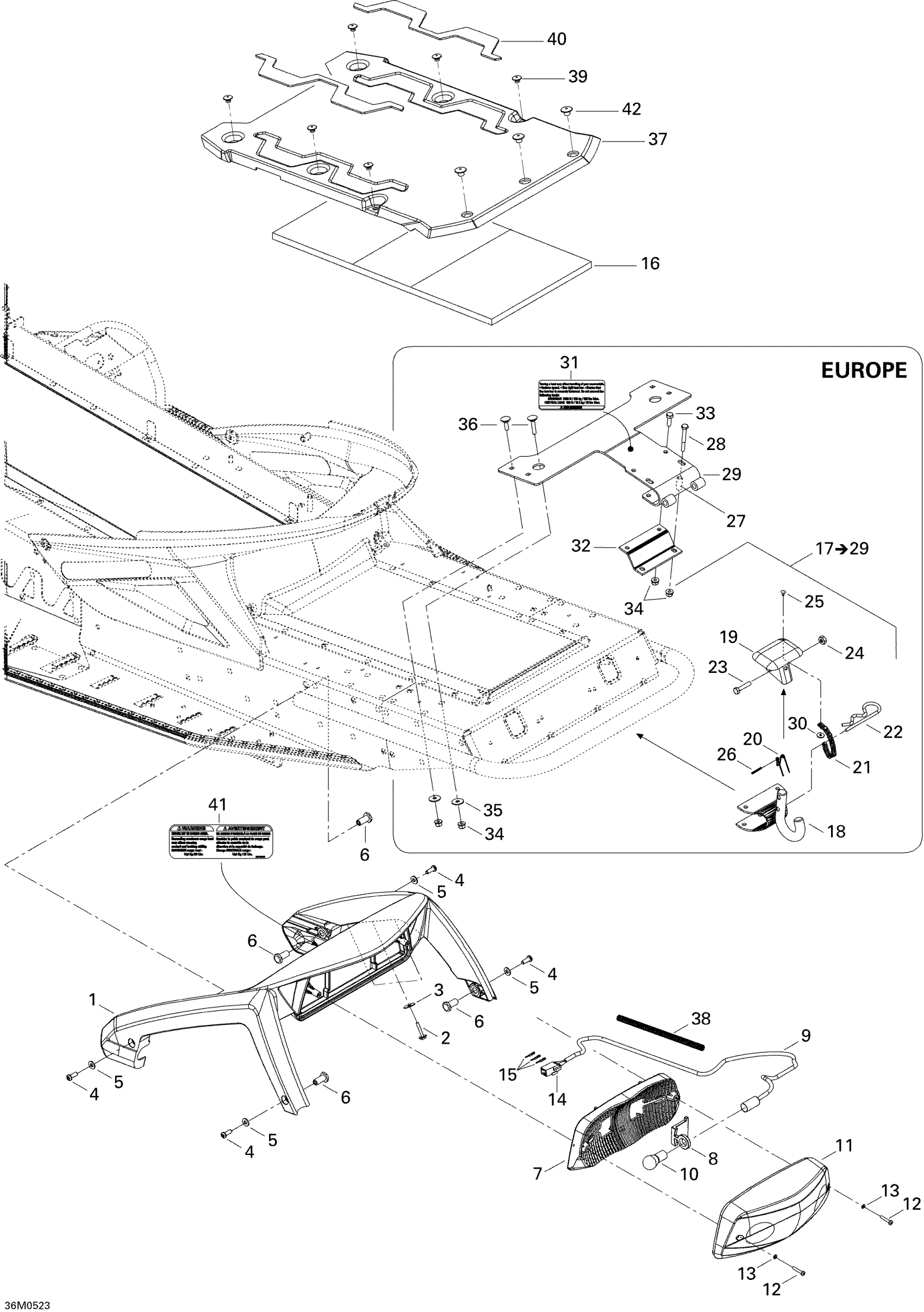

Ski-Doo Summit 550F, 2005 09- Luggage Rack Diagram

#

Description
Price

1

Luggage Rack | Europe

511000424

Unavailable

1

Luggage Rack

511000425

Unavailable

2

Self Tapping Screw #8 X 5/8

250000202

$1.48

3

Flat Washer

250200040

$1.90

4

SOCKET SCREW M6 X 16 - Call your local BRP dealership

250000168

Unavailable

5

Flat Washer

250200039

$0.74

6

INSERT - Call your local BRP dealership

511000398

Unavailable

7

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

8

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

9

Bulb Socket

511000428

Unavailable

10

Bulb

520000758

$9.10

11

Lens

511000315

$36.99

12

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Male Housing, 3 Circuits

515175494

$16.18

15

Male Terminal

515175232

$1.58

16

RADIATOR COVER SHIM - Call your local BRP dealership

511000364

Unavailable

17

HITCH ASS'Y KIT - Call your local BRP dealership | Europe, Includes 16 To 28

861789600

Unavailable

18

Hitch | Europe

517199300

Unavailable

19

Hitch Protector | Europe

517152700

Unavailable

20

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Hair Pin

114045200

$11.11

23

Hex. Screw M6 X 30

207063044

$1.26

24

Elastic Stop Nut M6

232561414

$0.55

25

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

26

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

27

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

28

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

29

FIXATION - Call your local BRP dealership

511000251

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

32

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

33

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Flat Washer

224061201

$1.37

36

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

37

RADIATOR COVER - Call your local BRP dealership

511000436

Unavailable

37

Radiator Cover | Europe

511000437

Unavailable

38

Tubing 6 Mm 3000Mm Long

219704425

$13.75

39

Pop Rivet 3/16"

293150103

$0.55

40

Carpet

511000396

Unavailable

41

Warning Label, Maximum Cargo Load

516002666

Unavailable

42

Black, Dart

293730006

$0.99
