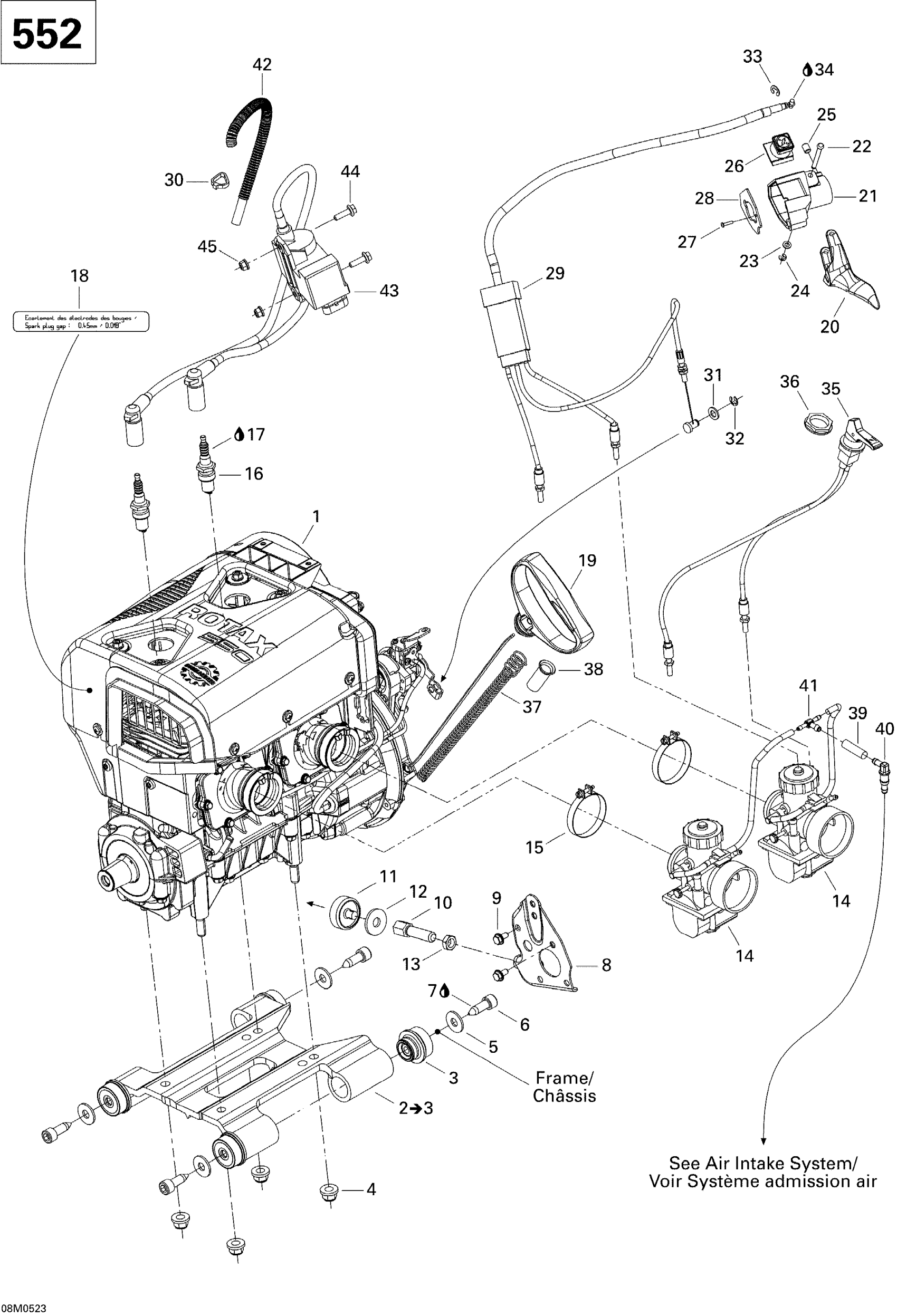

Ski-Doo Summit 550F, 2005 01- Engine And Engine Support Diagram

#

Description
Price

1

552 Engine

400509755

Unavailable

2

Engine Support | Includes 2 to 3

512059885

Unavailable

3

Rubber Mount

512059691

$47.99

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Flat Washer M10 | 4X4

250200014

$1.49

6

Screw M10 X 30

250000094

$24.49

7

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

8

Support Plate

512059910

Unavailable

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

10

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

11

STOPPER - Call your local BRP dealership

512059610

Unavailable

12

WASHER - Call your local BRP dealership

512059057

Unavailable

13

Nut Hexagonal RH.

232026414

$1.48

14

CARBURETOR VM34-617 - Call your local BRP dealership

403138772

Unavailable

14

CARBURATOR VM34-616 - Call your local BRP dealership

403138773

Unavailable

15

Gemi Clamp | Not Shown

512059834

$11.60

16

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

Spark Plug Decal

516000986

Unavailable

19

Starter Grip

572084400

$14.83

20

Handle Ass'y

512060214

$124.99

21

Throttle Housing

512060603

$12.49

22

Lever Pin

414438700

$11.64

23

Flat Washer M5, Stainless

234051600

$0.77

24

Circlip | Model-RS

414439000

$4.23

25

Socket Set Screw M8 X 10

414440800

$4.12

26

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

27

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

28

Plate

512060390

$10.33

29

THROTTLE CABLE - Call your local BRP dealership

512059973

Unavailable

30

Tie-Rap 180 mm

414115200

$0.11

31

Flat Washer 8 mm, Nylon

234081100

$1.39

32

Circlip

414753500

$0.71

33

Circlip

414274500

$0.90

34

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

35

CHOKE CABLE - Call your local BRP dealership

512059914

$82.99

36

Plastic Nut

512060671

$1.01

37

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

38

TUBE - Call your local BRP dealership

512059536

Unavailable

39

Polyurethane Hose 10000Mm Long

219704410

$56.99

40

Elbow Male Connector

414580600

$4.23

41

T-Fitting

572045500

$7.51

42

Was 409901700 Tubing (9 mm)

219704399

$84.99

43

Calibrated Module

512060040

$479.99

43

Calibrated Module

512060042

$479.99

44

Hex. Flange Screw M6 X 20

207662044

$2.00

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
