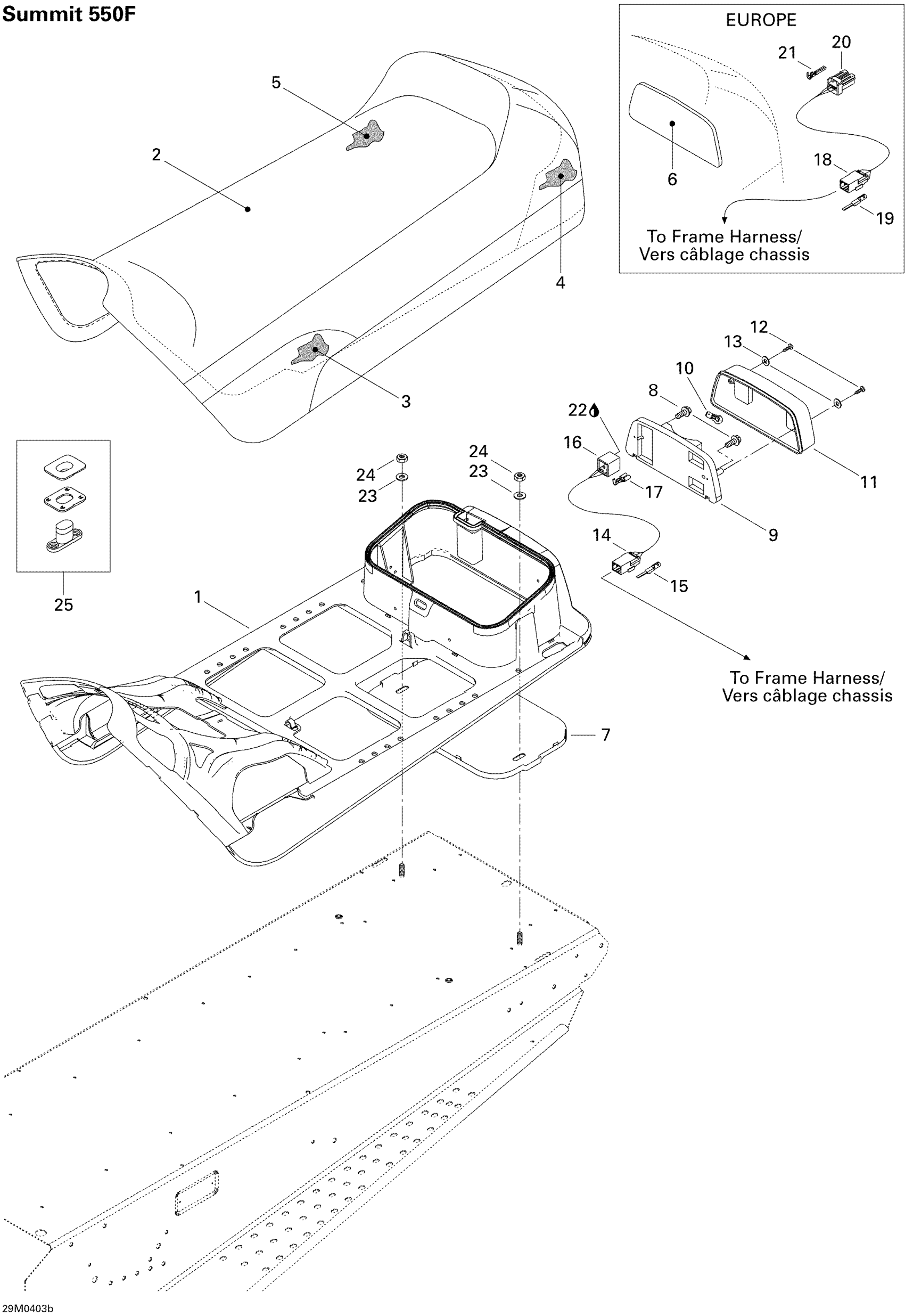

Ski-Doo Summit 550F, 2004 Seat SUMMIT 550F Diagram

#

Description
Price

1

Seat Base

510003983

Unavailable

2

Seat Cover

510004102

Unavailable

Seat Cover | EUROPE MODELS

510004128

Unavailable

3

SEAT FOAM - Call your local BRP dealership

510003944

Unavailable

4

Rear Seat Foam

510003945

Unavailable

5

Seat Foam

510004255

Unavailable

6

Tail Lamp Foam | EUROPE MODELS

510003989

Unavailable

7

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

8

Hex. Screw #10 X 1"

732603006

Unavailable

9

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

10

Bulb

520000758

$8.60

11

Lens

414513700

$26.09

12

Phillips Tapping Screw M3.9 X 25

209632540

$1.12

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Male Housing, 3 Circuits

515175494

$14.90

15

Male Terminal

515175232

$1.45

16

Female Terminal Housing, 3 Circuits

515175250

Unavailable

17

Female Terminal

561503100

Unavailable

18

Male Housing, 3 Circuits

515175494

$14.90

19

Male Terminal

515175232

$1.45

20

Female Housing, 3 Circuits

515175495

$14.90

21

Female Terminal

515175231

$4.00

22

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

23

Flat Washer 8 mm

234082410

$1.27

24

Hex. Elastic Stop Nut M8

232581414

$0.54

25

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable
