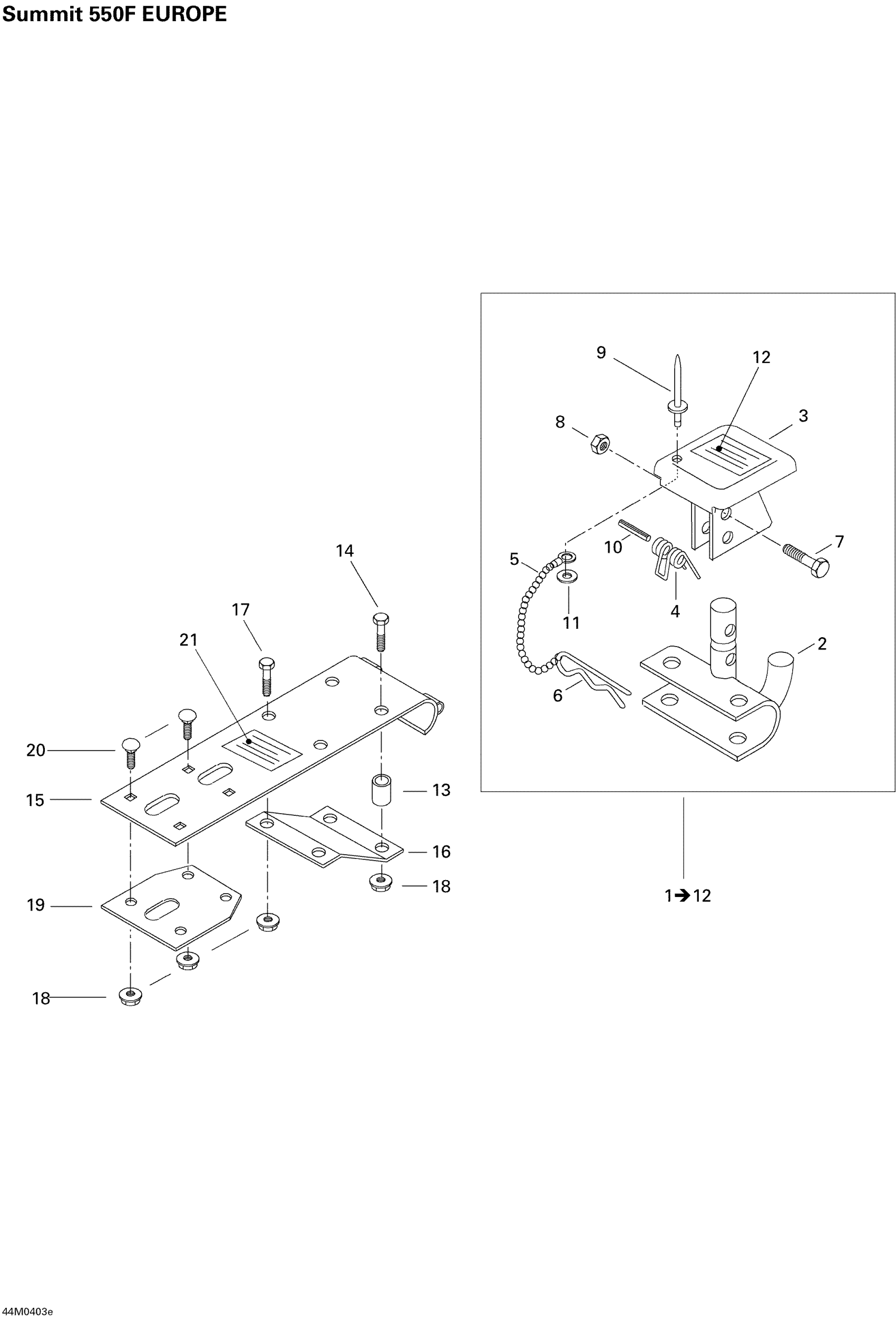

Ski-Doo Summit 550F, 2004 Hitch (Europe) Diagram
#
Description
Price
1
HITCH ASS?Y KIT - Call your local BRP dealership | Includes 49 to 60 / Europe
861778700
Unavailable
2
Hitch | Europe
517199300
Unavailable
3
Hitch Protector | Europe
517152700
Unavailable
4
SPRING - Call your local BRP dealership | Europe
517152800
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Hair Pin
114045200
Unavailable
7
Hex. Screw M6 X 30
207063044
Unavailable
8
Elastic Stop Nut M6
232561414
Unavailable
9
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe
390409400
Unavailable
10
SPRING PIN M3 X 24 - Call your local BRP dealership | Europe
732804000
Unavailable
11
Flat Washer
391303100
Unavailable
12
Security Label, Hitch
516001243
Unavailable
13
SPACER - Call your local BRP dealership | Europe
517191700
Unavailable
14
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership
207065044
Unavailable
15
Support
511000019
Unavailable
16
REINFORCEMENT - Call your local BRP dealership | Europe
511000022
Unavailable
17
Hex. Screw M6 X 18
207161844
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
Inner Plate
517256100
Unavailable
20
Carriage Bolt M6 X 20 | DS 650 X
207762044
Unavailable
21
Security Label, Hitch | Europe
516001709
Unavailable
