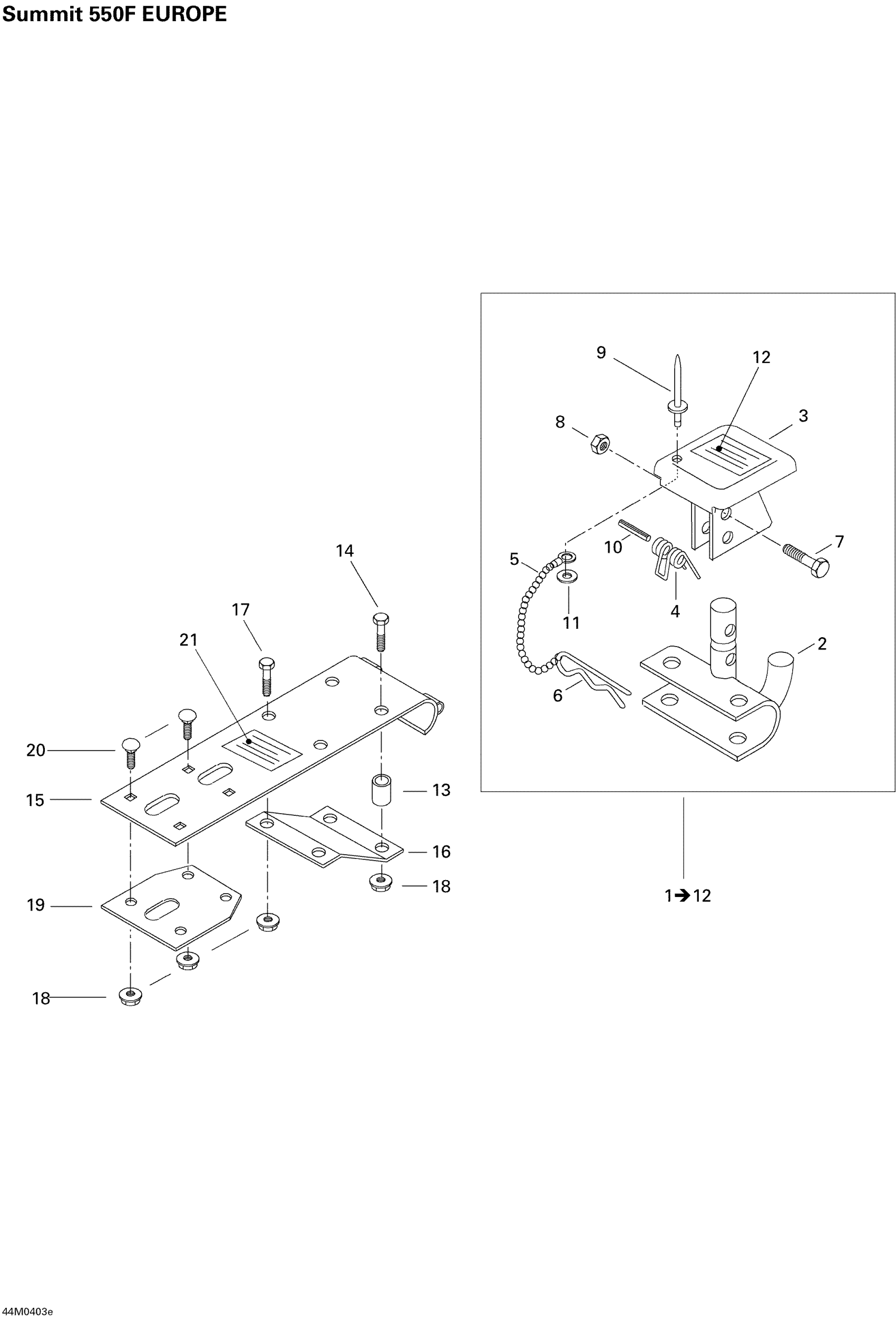

Ski-Doo Summit 550F, 2004 09- Hitch (Europe) Diagram

#

Description
Price

1

HITCH ASS?Y KIT - Call your local BRP dealership | Includes 49 to 60 / Europe

861778700

Unavailable

2

Hitch | Europe

517199300

Unavailable

3

Hitch Protector | Europe

517152700

Unavailable

4

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Hair Pin

114045200

$11.11

7

Hex. Screw M6 X 30

207063044

$1.26

8

Elastic Stop Nut M6

232561414

$0.55

9

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

10

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

11

Flat Washer

391303100

Unavailable

12

Security Label, Hitch

516001243

Unavailable

13

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

14

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

15

Support

511000019

Unavailable

16

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

17

Hex. Screw M6 X 18

207161844

$0.76

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Inner Plate

517256100

Unavailable

20

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

21

Security Label, Hitch | Europe

516001709

Unavailable
