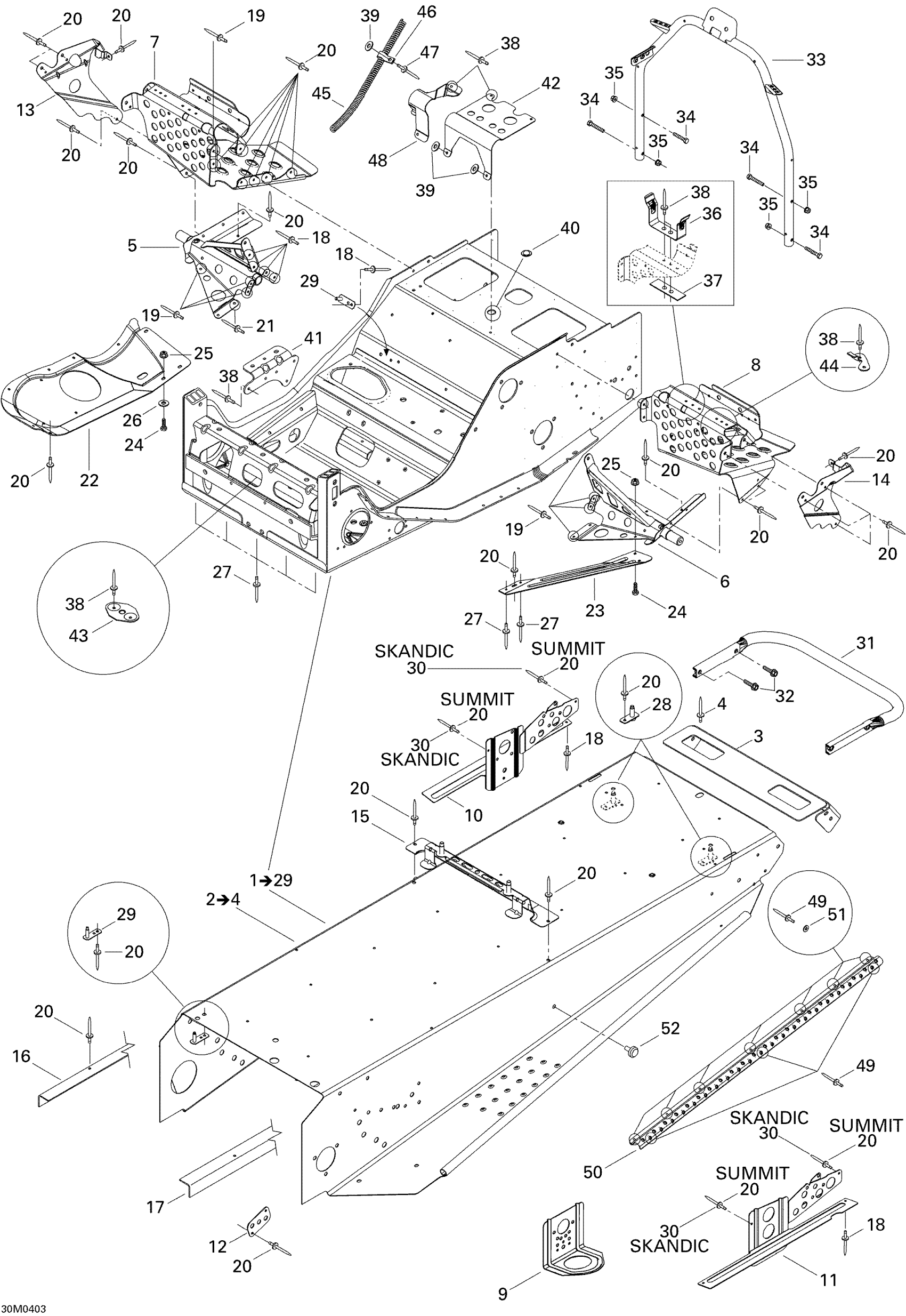

Ski-Doo Summit 550F, 2004 09- Frame And Accessories SUMMIT 550F Diagram

#

Description
Price

1

Frame | INCLUDES 1 TO 29

415128759

Unavailable

2

Tunnel | GT, Includes Items 2 to 4

415128616

Unavailable

3

REAR CAP - Call your local BRP dealership

518321303

Unavailable

4

Pop Rivet 3/16"

390402200

$0.35

5

RH Footrest Support

518320506

Unavailable

6

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

7

RH Footrest

518323563

Unavailable

8

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

9

Front Bracket

518321495

Unavailable

10

RH Slide Bracket, Black

518323280

Unavailable

11

LH Slide Bracket, Black

518323283

Unavailable

12

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

13

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

14

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

15

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

16

RH Frame Reinforcement

518316769

Unavailable

17

LH Frame Reinforcement

518316768

Unavailable

18

Avex Rivet

390909200

$0.30

19

Avex Rivet

390909100

$0.30

20

Pop Rivet 3/16"

390402200

$0.35

21

Pop Rivet 3/16"

390402300

$0.75

22

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

23

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

24

Hex. Screw M5 X 20

207152044

$0.90

25

Hex. Flange Elastic Nut M5

233251414

$1.04

26

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

27

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

28

Seat Bracket

518323321

Unavailable

29

Double Bracket

518323173

Unavailable

31

Rear Bumper

517243800

Unavailable

REAR BUMPER - Call your local BRP dealership

518322708

Unavailable

32

Hex. Flange Screw M8 X 20

207682044

$1.15

33

Handle Support

518322755

Unavailable

34

Hex. Flange Screw M6 X 35

207663544

$0.90

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Belt Guard Bracket

518202100

$17.49

37

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

38

Pop Rivet 3/16"

390402200

$0.35

39

Flat Washer

517225900

$0.18

40

CAP - Call your local BRP dealership

414859400

Unavailable

41

Muffler Support

518322635

Unavailable

42

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

43

Plate Bracket

518201307

Unavailable

44

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

45

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

46

Open Clamp

518321570

$7.69

47

Pop Rivet 3/16"

293150103

$0.55

48

Hose Support

518322699

Unavailable

49

Pop Rivet 3/16"

390402200

$0.35

50

STRIP - Call your local BRP dealership

518319405

Unavailable

51

Flat Washer

517225900

$0.18

52

Panel Fastener

518321954

$7.69
