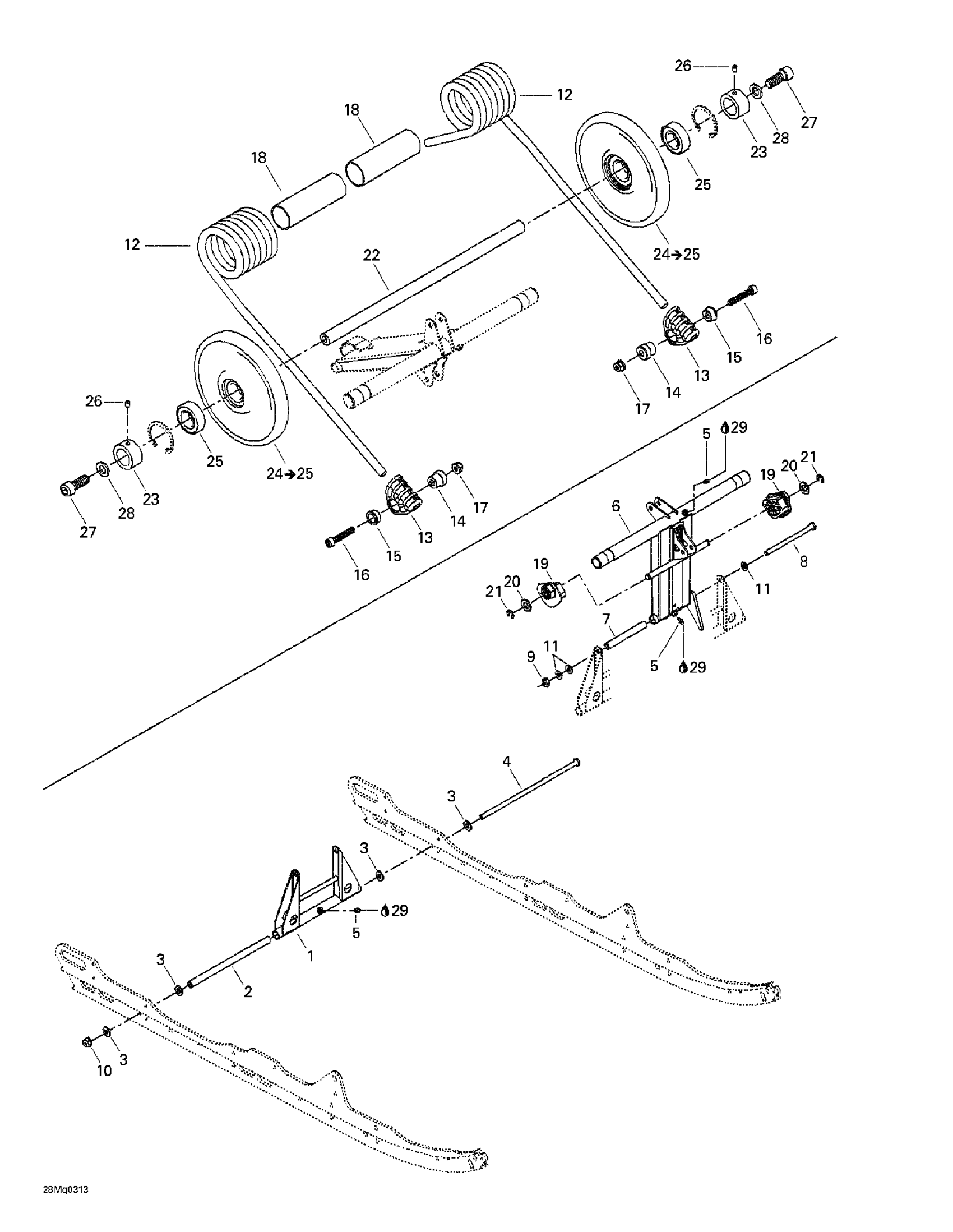

Ski-Doo Summit 550 F, 2003 Rear Arm Diagram
#
Description
Price
1
Pivot Arm
503189793
Unavailable
2
Pivot Arm Axle
503189156
Unavailable
4
Bolt M8 X 248mm
503192440
Unavailable
5
Grease Fitting
408200700
Unavailable
6
Rear Arm
503190275
Unavailable
7
Upper Axle, Pivot Arm
503144300
Unavailable
8
Bolt M8, Short
732601197
Unavailable
9
Hex. Elastic Stop Nut M8
232581414
Unavailable
10
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
Flat Washer 8 mm
234081410
Unavailable
12
RH Spring
503189902
Unavailable
LH SPRING - Call your local BRP dealership
503189904
Unavailable
13
Spring Support
503189657
Unavailable
14
Spring Guide Axle
503188934
Unavailable
15
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
16
Socket Head Screw M8 X 45
205084544
Unavailable
17
Hex. Flange Elastic Nut M8
233281414
Unavailable
18
BUSHING - Call your local BRP dealership
572086000
Unavailable
19
LH CAM ADJUSTER - Call your local BRP dealership
503190023
Unavailable
RH CAM ADJUSTER - Call your local BRP dealership
503190022
Unavailable
21
E-Circlip
293370013
Unavailable
22
Rear Cross Shaft
503189711
Unavailable
24
Wheel 165 Ass’Y | Includes 24 to 25
503190269
Unavailable
25
Ball Bearing
293350115
Unavailable
27
Socket Head Screw M12 X 35, Scotch Grip
205523544
Unavailable
28
Washer
503189276
Unavailable
29
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
