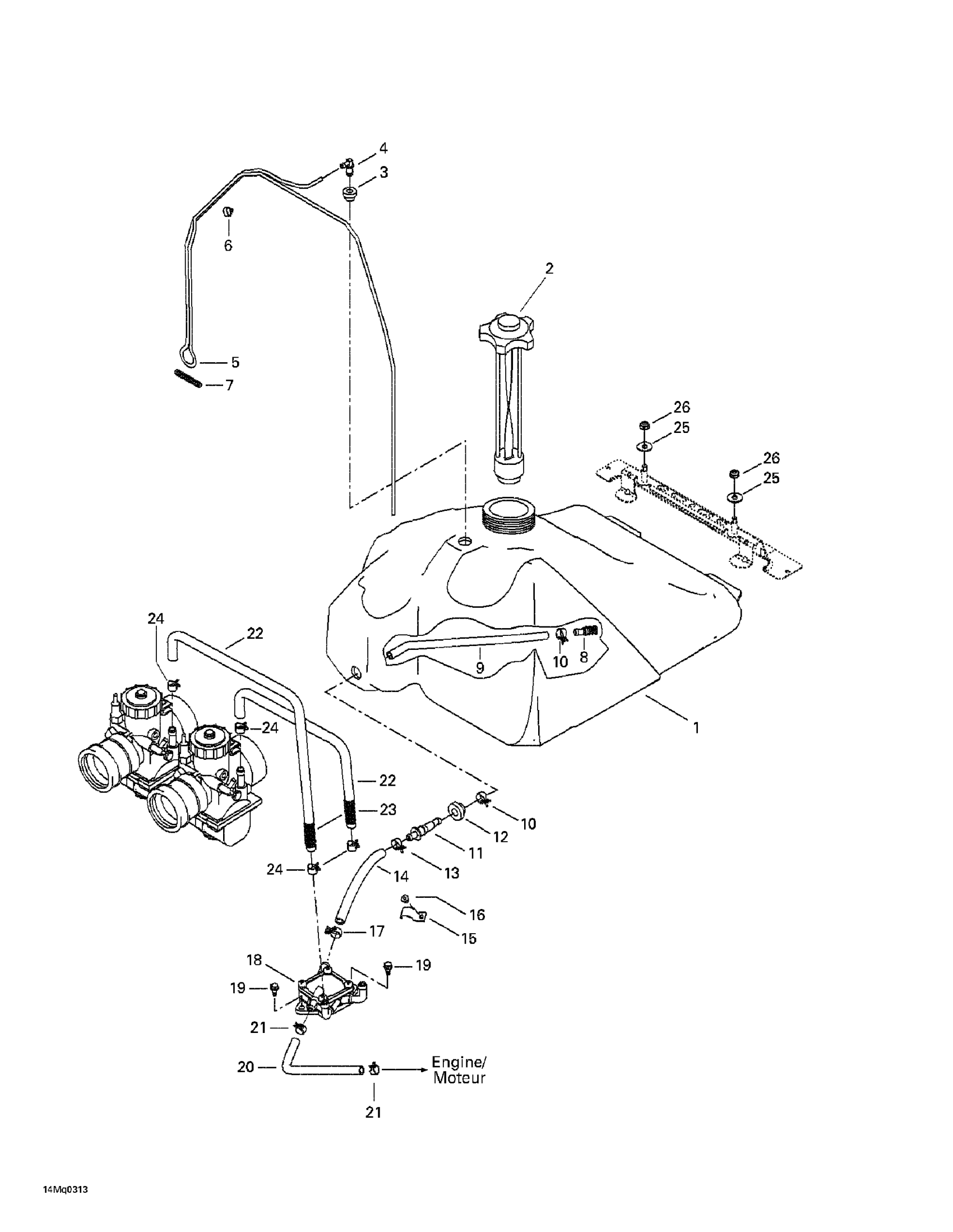

Ski-Doo Summit 550 F, 2003 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513032987

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$35.35

3

Grommet

513032908

$8.74

4

Male Connector

414814100

$2.18

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

9

Hose

415005700

$5.49

10

Norma Spring Clamp

513033010

Unavailable

11

Male Connector

414872700

Unavailable

12

Grommet | Europe

707800347

Unavailable

13

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

14

Formed Hose

513032903

$28.43

15

CLIP - Call your local BRP dealership

415018200

$2.89

16

Pop Rivet 3/16"

293150103

Unavailable

17

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

18

Fuel Pump

403901813

Unavailable

19

Hex. Flange Screw M6 X 16

210261650

$1.22

20

Hose

219704549

Unavailable

21

Spring Clamp

414415200

$0.83

22

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

23

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

24

Universal Spring Clamp

513033029

Unavailable

25

Flat Washer 8 mm

234082410

$1.11

26

Hex. Elastic Stop Nut M8

232581414

Unavailable
