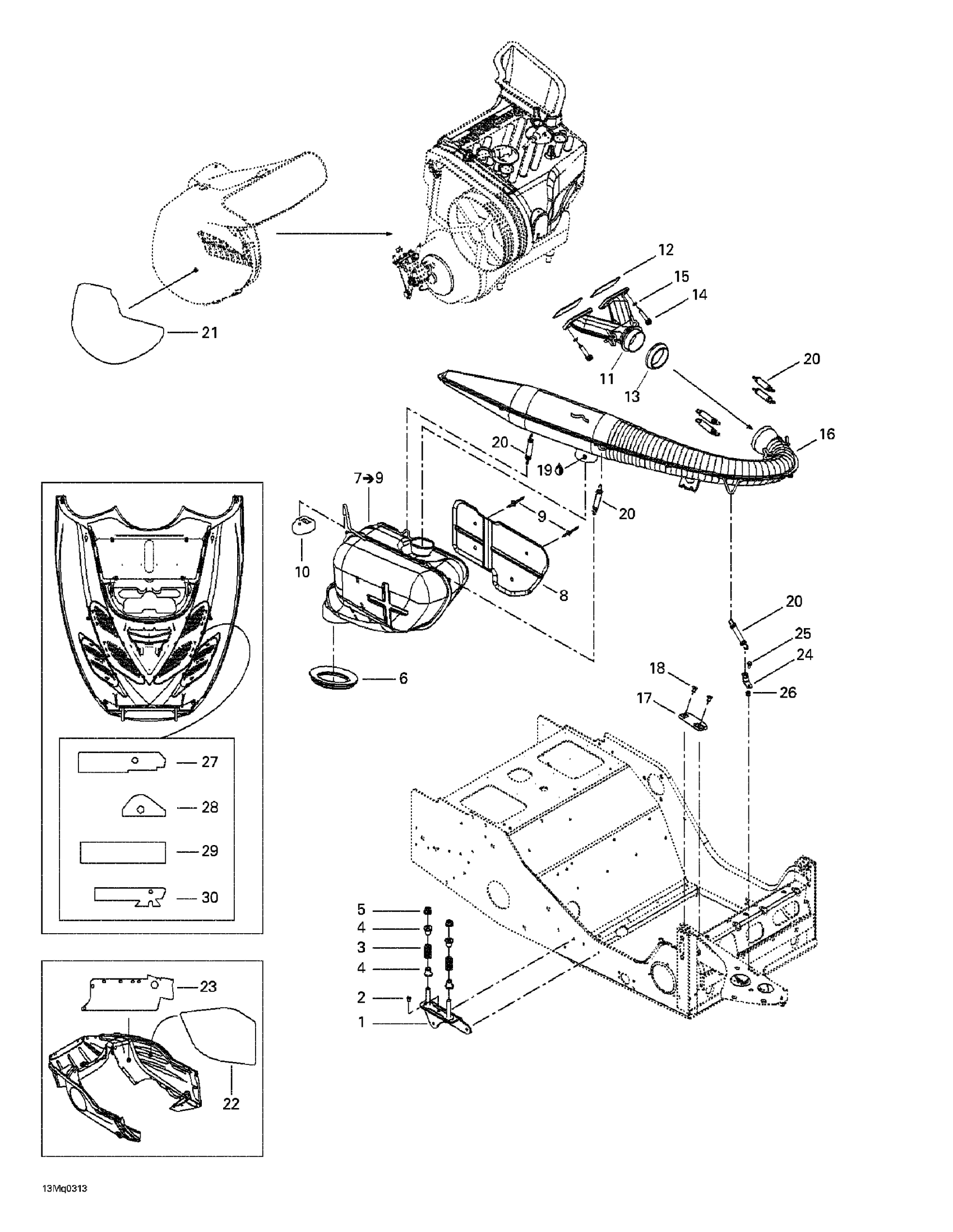

Ski-Doo Summit 550 F, 2003 Muffler Diagram
#
Description
Price
1
Muffler Bracket
514053263
Unavailable
5
Lock Spring Nut M8
233481413
Unavailable
6
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
7
Muffler Ass’Y | 550F, Includes Items 27 to 29
514053648
Unavailable
8
Heat Shield
514053389
Unavailable
11
Exhaust Manifold
420673065
Unavailable
12
Gasket 1.0 mm
420831849
Unavailable
14
Socket Head Screw M8 X 30
205083044
Unavailable
15
Lock Washer 8 mm
234181401
Unavailable
16
Calibrated Tube | 550F
514053645
Unavailable
17
Rubber Pad
570044100
Unavailable
18
Pop Rivet 3/16"
293150103
Unavailable
19
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
21
Reflective Sheet
514053363
Unavailable
22
Reflective Sheet
514052718
Unavailable
23
REFLECTIVE SHEET - Call your local BRP dealership
514053390
Unavailable
25
Hex. Screw M5 X 12
207151244
Unavailable
26
Hex. Flange Elastic Nut M5
233251414
Unavailable
27
Reflective Sheet, Black Cab
514053435
Unavailable
28
Reflective Sheet, Black Cab
514053446
Unavailable
29
Reflective Sheet
514053392
Unavailable
30
Reflective Sheet | FOR RIM CAB ONLY
514053391
Unavailable
