Description

Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Pivot Arm Axle

503189156

$21.99

6

Bolt M8 X 248mm

503192440

$30.49

7

Washer

503189157

$3.28

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Rear Arm | Includes 3000a to 3000a7

503191762

$98.49

10

Bushing

572080700

$17.39

11

Swivel Bushing

503191555

$7.83

12

LH Cam Adjuster

503191565

$16.49

13

RH Cam Adjuster

503191566

$16.49

14

E-Circlip

293370013

$0.65

15

Upper Axle, Pivot Arm

503144300

$11.65

16

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

17

Washer

503189157

$3.28

18

Bolt M8, Short

732601197

$15.36

19

Hex. Elastic Stop Nut M8

232581414

$0.56

20

Grease Fitting

408200700

$3.49

21

Extended Bushing

503191556

$7.83

22

Washer

503191651

$8.32

23

Upper Shaft

503191215

$38.99

24

Bushing

503191262

$15.79

25

Socket Set Screw M6 X 8

206260844

$1.48

26

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

27

Ball Bearing

503193548

$17.99

28

Retaining Ring

503168800

$14.99

29

Washer

503189564

$0.74

30

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

31

RH Spring

503192080

$67.99

32

LH Spring

503192081

$67.99

33

ROD_LINK - Call your local BRP dealership

503191148

Unavailable

34

Axle Bar (Long)

503190643

$17.39

35

Hex. Flange Screw

207688544

$1.69

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Rear Shock

503191534

Unavailable

38

Bushing

414936000

$13.99

39

Hex. Flange Screw M8 X 40

207684044

$1.48

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

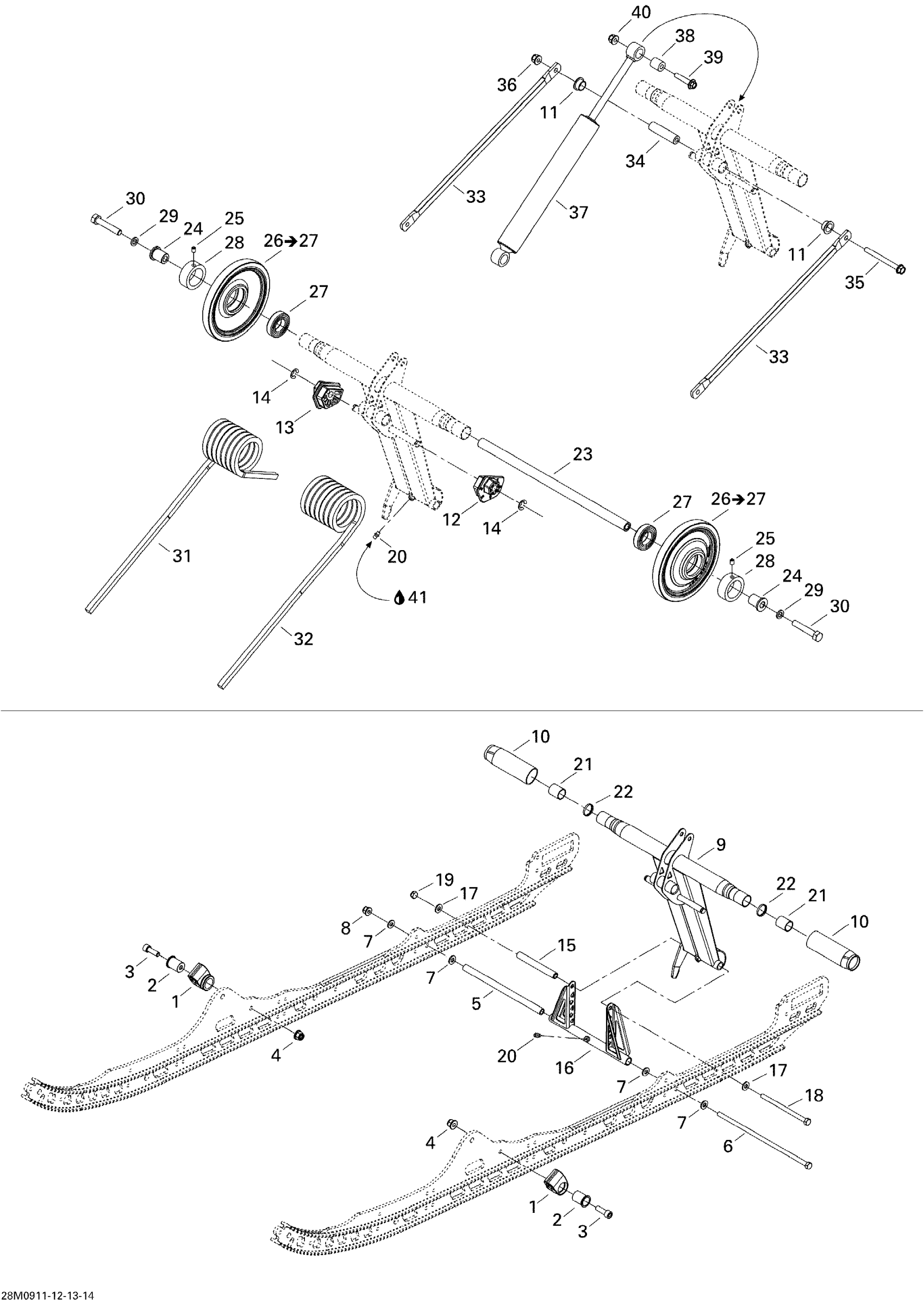

Ski-Doo Summit 50TH Anniversary, 2009 08- Rear Arm Diagram

Spring Support Kit

Spring Support Kit

Socket Head Screw M8 X 25

Hex. Flange Elastic Nut M8

Pivot Arm Axle

Bolt M8 X 248mm

Washer

Hex. Flange Elastic Nut M8

Rear Arm | Includes 3000a to 3000a7

Bushing

Swivel Bushing

LH Cam Adjuster

RH Cam Adjuster

E-Circlip

Upper Axle, Pivot Arm

Pivot Arm | Includes 3000j to 3000j3

Washer

Bolt M8, Short

Hex. Elastic Stop Nut M8

Grease Fitting

Extended Bushing

Washer

Upper Shaft

Bushing

Socket Set Screw M6 X 8

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

Ball Bearing

Retaining Ring

Washer

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

RH Spring

LH Spring

ROD_LINK - Call your local BRP dealership

Axle Bar (Long)

Hex. Flange Screw

Hex. Flange Elastic Nut M8

Rear Shock

Bushing

Hex. Flange Screw M8 X 40

Hex. Flange Elastic Nut M8

SYNTHETIC GREASE, 400 G - Call your local BRP dealership
