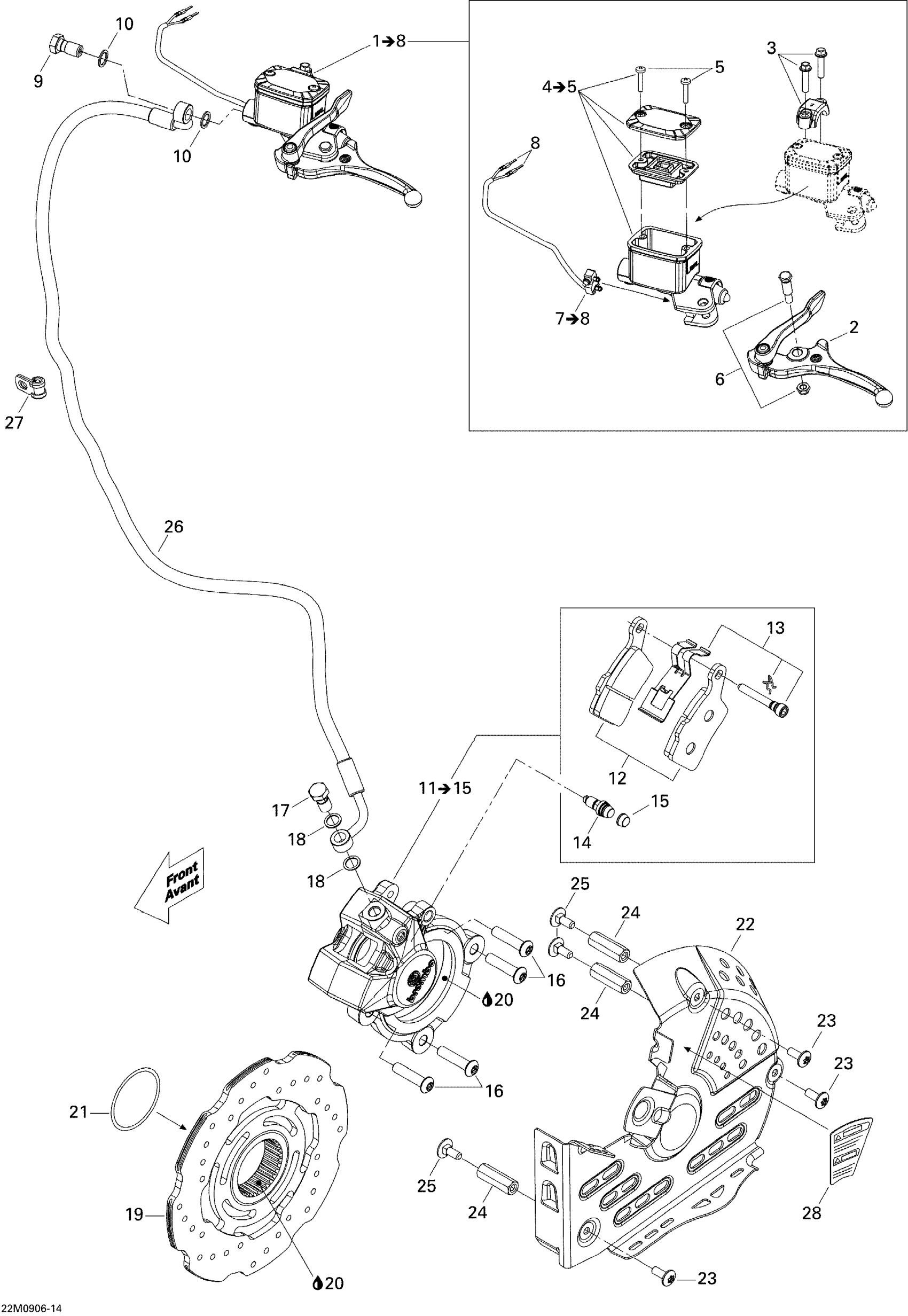

Ski-Doo Summit 50TH Anniversary, 2009 06- Hydraulic Brakes Diagram

#

Description
Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$319.99

2

Lever With Parking Lock

507032476

$99.99

3

Clamp And Screw Kit

507032477

$23.99

4

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

5

Screw M4 X 20

415129356

$2.22

6

Pin Ass'y

415030000

$19.99

7

Microswitch | Grand Touring

507032479

$99.49

8

Male Terminal

515175232

$1.58

9

Banjo Bolt

414920500

$8.68

10

Washer

414920600

$1.90

11

Brake Caliper | Includes 200 to 200c

507032720

$349.49

12

Brake Pads Kit

507032473

$52.99

13

Brake Spring Kit

507032722

$37.99

14

Bleeder

507032475

$19.99

15

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

16

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

17

Banjo Bolt

414920500

$8.68

18

Washer

414920600

$1.90

19

Disc

507032487

$185.49

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

O-Ring

293300134

$2.32

22

Black Disk Protector

507032492

$48.99

23

Torx Screw M6 X 16

250000223

$2.11

24

Threaded Tube

507032497

$15.72

25

Carriage Bolt M6 X 1.0 X 16

207761644

$2.11

26

BRAKE HOSE - Call your local BRP dealership This part replaces 507032494.

507032534

Unavailable

27

Clamp

293650256

$5.49

28

WARNING DECAL, GUARD IN PLACE - Call your local BRP dealership | SE

516003803

Unavailable
