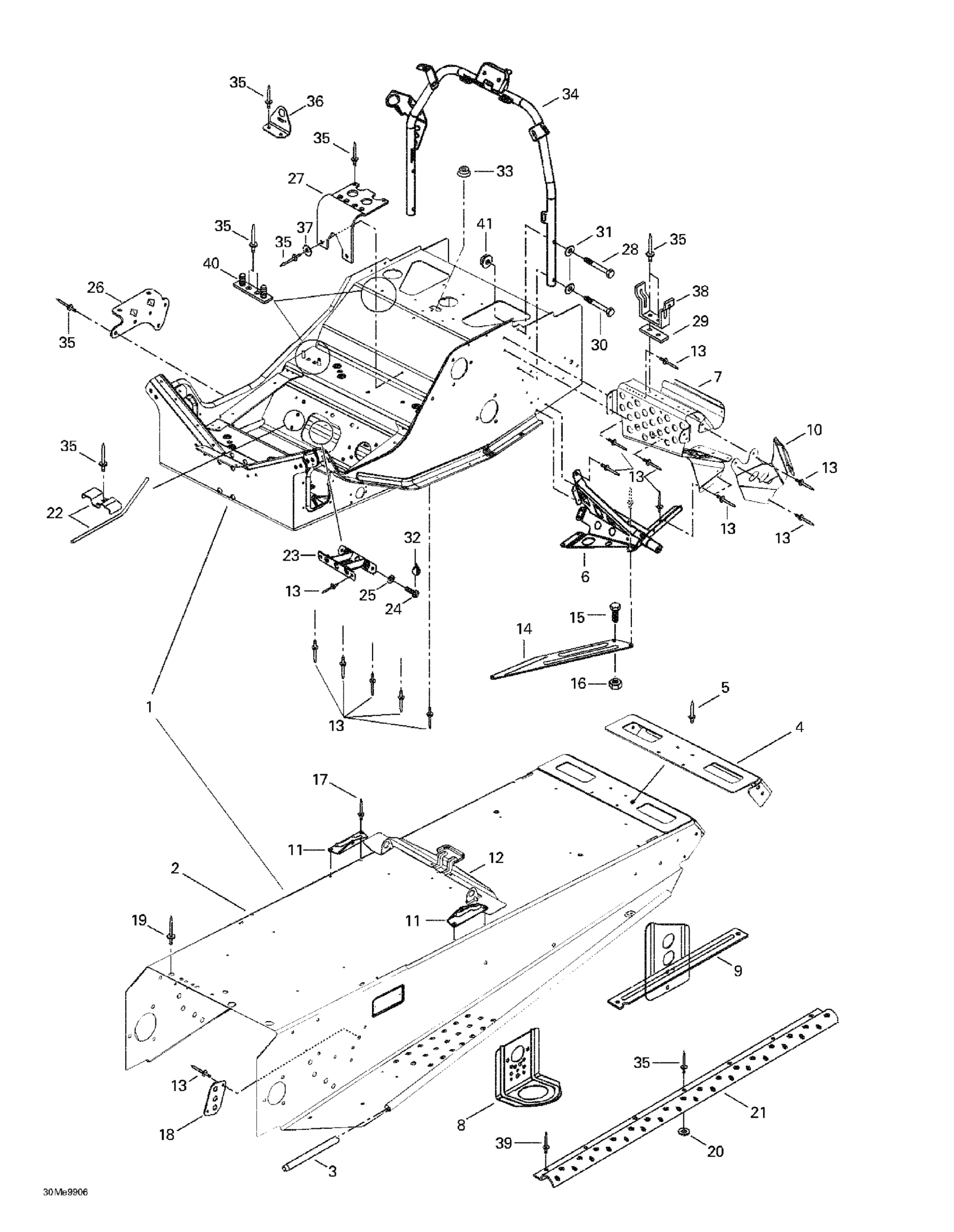

Ski-Doo Summit 500/X 670, 1999 09- Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 21. Summit 500.

518321643

Unavailable

Frame Ass'y | Summit X670.

518321642

Unavailable

2

Forming Frame | Includes 2 - 5.

518321665

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Rear Cap

518321619

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

RH Footrest Support

518320506

Unavailable

7

RH Front Footrest

518321417

Unavailable

LH Front Footrest

518321418

Unavailable

8

Front Bracket

518321495

Unavailable

9

LH Rear Bracket

518321506

Unavailable

RH Rear Bracket

518321502

Unavailable

10

Upper Plate L.H

518308714

Unavailable

Upper Plate R.H

518308715

Unavailable

11

RH Tank Bracket

517266900

Unavailable

RH Tank Bracket

518304747

Unavailable

LH Tank Bracket

517267000

Unavailable

LH Tank Bracket

518304748

Unavailable

12

Seat Bracket

518317506

Unavailable

13

Pop Rivet 3/16"

390402200

$0.35

14

RH Reinf. Plate

518321698

Unavailable

LH Reinf. Plate

518321700

Unavailable

15

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

Pop Rivet 3/16"

390402400

$0.35

18

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

19

Pop Rivet 3/16"

390402300

$0.75

20

Washer

517124300

$0.19

21

STRIP - Call your local BRP dealership

518319405

Unavailable

22

Guide Rope

518313700

Unavailable

23

Reinf. Plate

518304741

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.74

25

Lock Washer 8 mm

234181401

$0.92

26

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

27

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

28

Hex. Flange Screw M6 X 35

207063544

$1.37

29

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

30

Hex. Screw M6 X 40

207064044

$1.48

31

Flat Washer 6 mm

234061410

$1.36

32

Loctite 271, 10 ml

293800005

$26.99

33

CAP - Call your local BRP dealership

414859400

Unavailable

34

Handle Support

518321689

Unavailable

35

Pop Rivet 3/16"

390402200

$0.35

36

Valve Bracket | MX Z 670 HO.

518310206

Unavailable

37

Washer

517124300

$0.19

38

Belt Guard Bracket

518202100

$17.49

39

Pop Rivet 3/16"

390402300

$0.75

40

Support Plate

518315300

Unavailable

41

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
