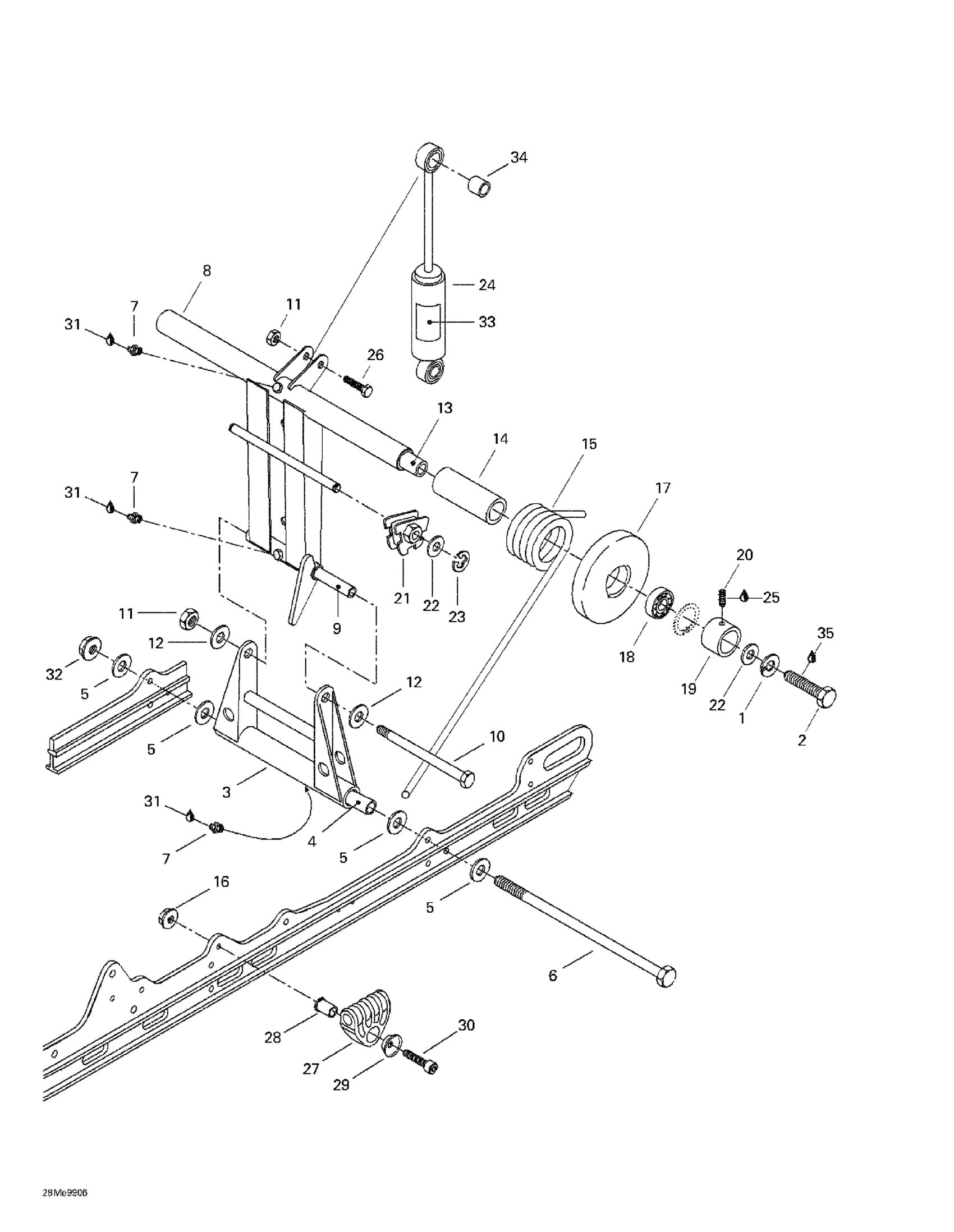

Ski-Doo Summit 500/X 670, 1999 08- Rear Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Screw M10 X 35

207103544

$1.58

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$30.49

7

Grease Fitting

408200700

$3.49

8

Rear Arm

503170700

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.65

10

Bolt M8, Short

732601197

$15.36

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Flat Washer 8 mm

234081410

$0.83

13

Rear Cross Shaft

503168700

Unavailable

14

BUSHING - Call your local BRP dealership

572086000

Unavailable

15

RH Spring

414866200

Unavailable

RH SPRING - Call your local BRP dealership

414943500

Unavailable

RH SPRING - Call your local BRP dealership

414943500

Unavailable

LH Spring

414866300

Unavailable

LH SPRING - Call your local BRP dealership

414943600

Unavailable

LH SPRING - Call your local BRP dealership

414943600

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

18

Ball Bearing

293350115

$12.11

19

Retaining Ring

503168800

$14.99

20

Socket Set Screw M6 X 8

206260844

$1.48

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$1.26

23

e Circlip

371907100

Unavailable

24

Shock | Summit 500.

414975800

Unavailable

Shock (Europe) | Summit 500.

415076600

Unavailable

Rear Shock Kayaba (EUROPE) | Includes 24 - 28.

503188917

Unavailable

25

Loctite 271, 10 ml

293800005

$26.99

26

Hex. Screw M8 X 40

207084044

$1.15

27

Spring Support

503189657

$11.99

28

Spring Guide Axle

503188934

Unavailable

29

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

30

Socket Head Screw M8 X 45

205084544

$0.90

31

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

HPG Decal (Europe)

516000182

Unavailable

Shock Decal

516000183

Unavailable

34

Bushing

414936000

$13.99

Bushing

414936000

$13.99

35

Loctite 243, 10 ml

293800060

$21.49
