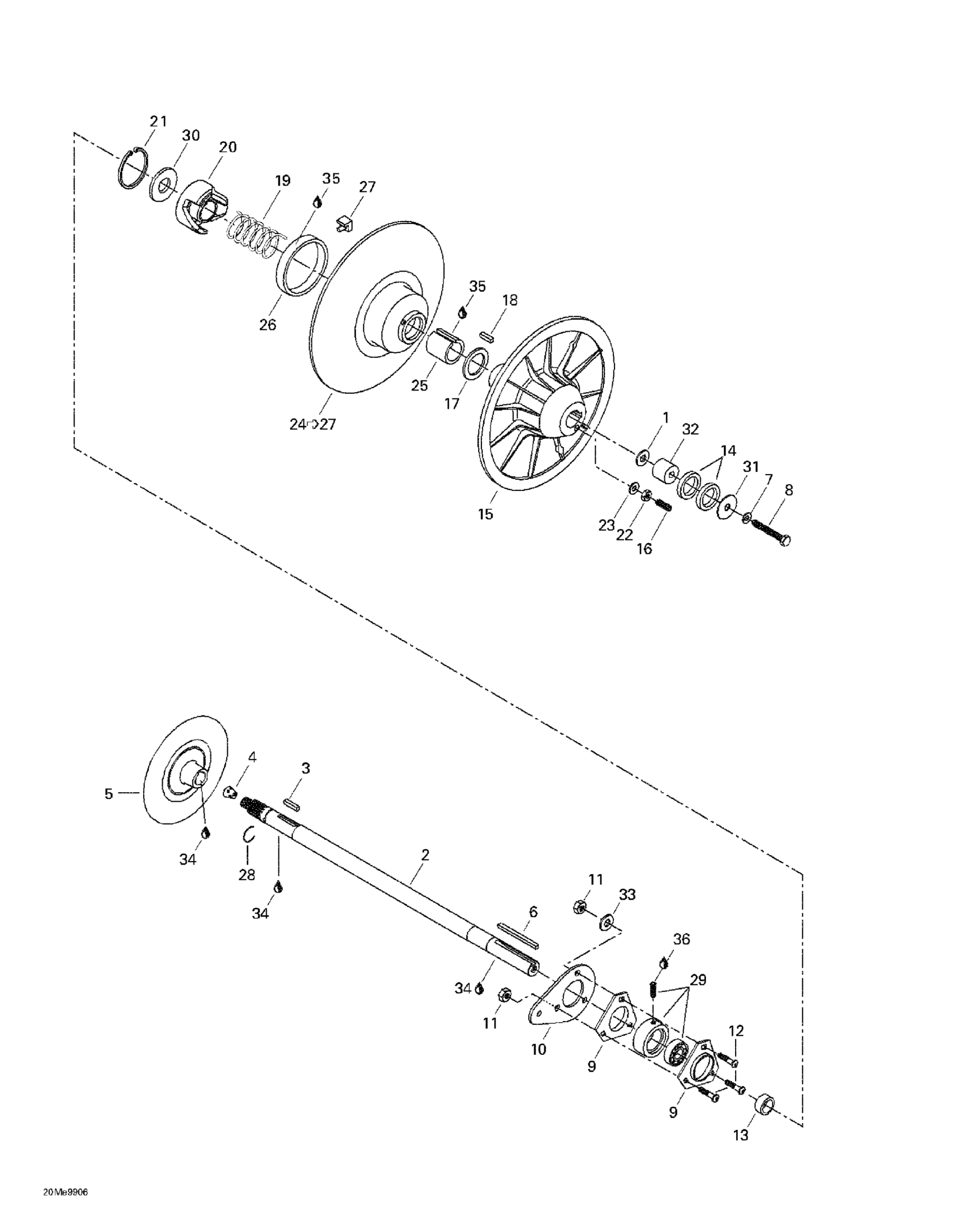

Ski-Doo Summit 500/X 670, 1999 05- Driven Pulley Diagram
#
Description
Price
1
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
2
Countershaft
504149300
Unavailable
Countershaft | Formula Deluxe 670.
504149400
Unavailable
3
KEY - Call your local BRP dealership
507021300
Unavailable
4
CORK - Call your local BRP dealership
414784800
Unavailable
5
Brake Disk
507032203
Unavailable
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
6
Key
414581300
Unavailable
9
FLANGE - Call your local BRP dealership
501025000
Unavailable
10
Spacer
501022300
Unavailable
12
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205482546
Unavailable
13
Shim
504128300
Unavailable
14
SHIM - Call your local BRP dealership
504108200
Unavailable
15
Fixed Flange
504141600
Unavailable
16
Allen Screw M6 x 30
223563065
Unavailable
17
Thrust Washer
504141900
Unavailable
18
Key
414820800
Unavailable
19
RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige
414558900
Unavailable
20
Cam 44 Deg. (Summit 600 (Sport)) | Summit 600.
417126333
Unavailable
Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.
417126337
Unavailable
21
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
23
WASHER - Call your local BRP dealership
420245370
Unavailable
24
Sliding Pulley | Includes 24 - 27.
504143400
Unavailable
25
BUSHING - Call your local BRP dealership
415011200
Unavailable
26
GARLOCK BUSHING - Call your local BRP dealership
414876600
Unavailable
27
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
29
BALL BEARING WITH COLLAR - Call your local BRP dealership
405408300
Unavailable
30
Washer
504141800
Unavailable
31
WASHER - Call your local BRP dealership
517078700
Unavailable
32
Counter Shaft Extension
504091600
Unavailable
34
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
