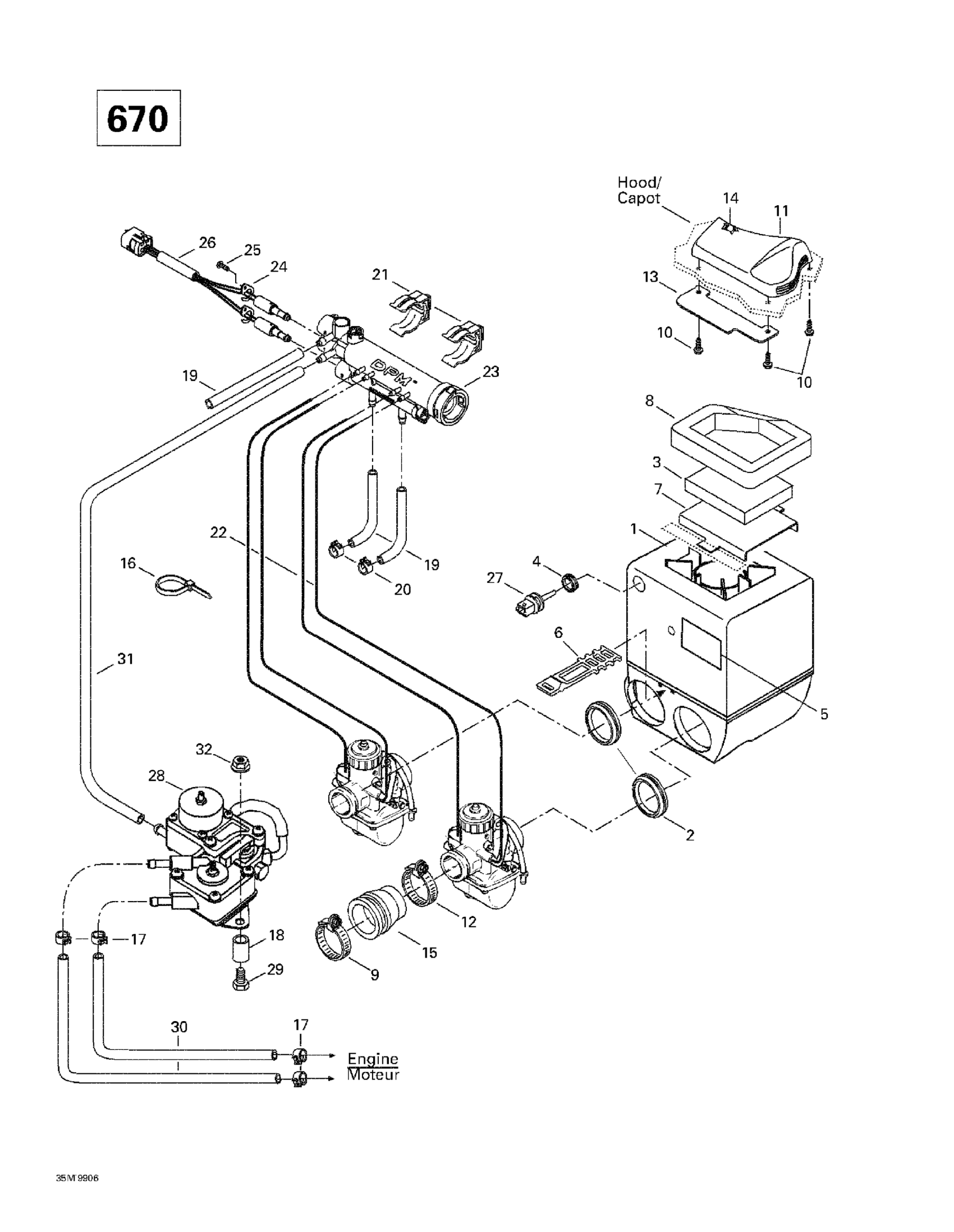

Ski-Doo Summit 500/X 670, 1999 02- Air Intake System (670) Diagram

#

Description
Price

1

Air Intake Ass'y | Includes 1 - 8. Summit X670.

508000028

Unavailable

2

Intake Adaptor VM 40 | Formula Deluxe 670.

570049000

Unavailable

3

Air Filter

415014800

$12.49

4

GROMMET - Call your local BRP dealership

570065500

Unavailable

5

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

6

LATCH - Call your local BRP dealership

570069700

Unavailable

7

Grill Intake

517283900

Unavailable

8

Lower Foam | Summit X670.

415125500

Unavailable

9

Collar | Skandic 600.

414532800

Unavailable

10

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

11

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

12

Collar | Skandic 600.

414532800

Unavailable

13

Deflector | MX Z 670 HO.

517292800

Unavailable

14

Air Filter

414972600

$63.99

15

Adaptor Carburetor | Summit X670.

570070100

Unavailable

16

Tie Wrap 94 mm | 4X4

293750001

$1.03

17

Spring Clamp

414415200

$0.88

18

Spacer | MX Z 670 HO.

512058934

Unavailable

19

Polyurethane Hose 10000Mm Long

219704410

$56.99

20

Spring Clamp

414554800

$0.88

21

SUPPORT - Call your local BRP dealership

512058919

Unavailable

22

Hose | MX-Z 600.

404161814

Unavailable

23

Pressure Manifold Ass'y | Includes 23 - 26. MX Z 670 HO.

512058922

Unavailable

24

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

25

Screw K40 X 10

241140060

$1.48

26

Collector Harness | Includes 24 - 27.

515175219

Unavailable

27

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

28

Air Pump | MX Z 670 HO.

415109000

Unavailable

29

Hex. Screw M5 X 30

207053044

$1.16

30

Hose

219704549

$50.99

31

Hose 4.5 mm

270000306

Unavailable

32

Hex. Flange Elastic Nut M5

233251414

$1.04
