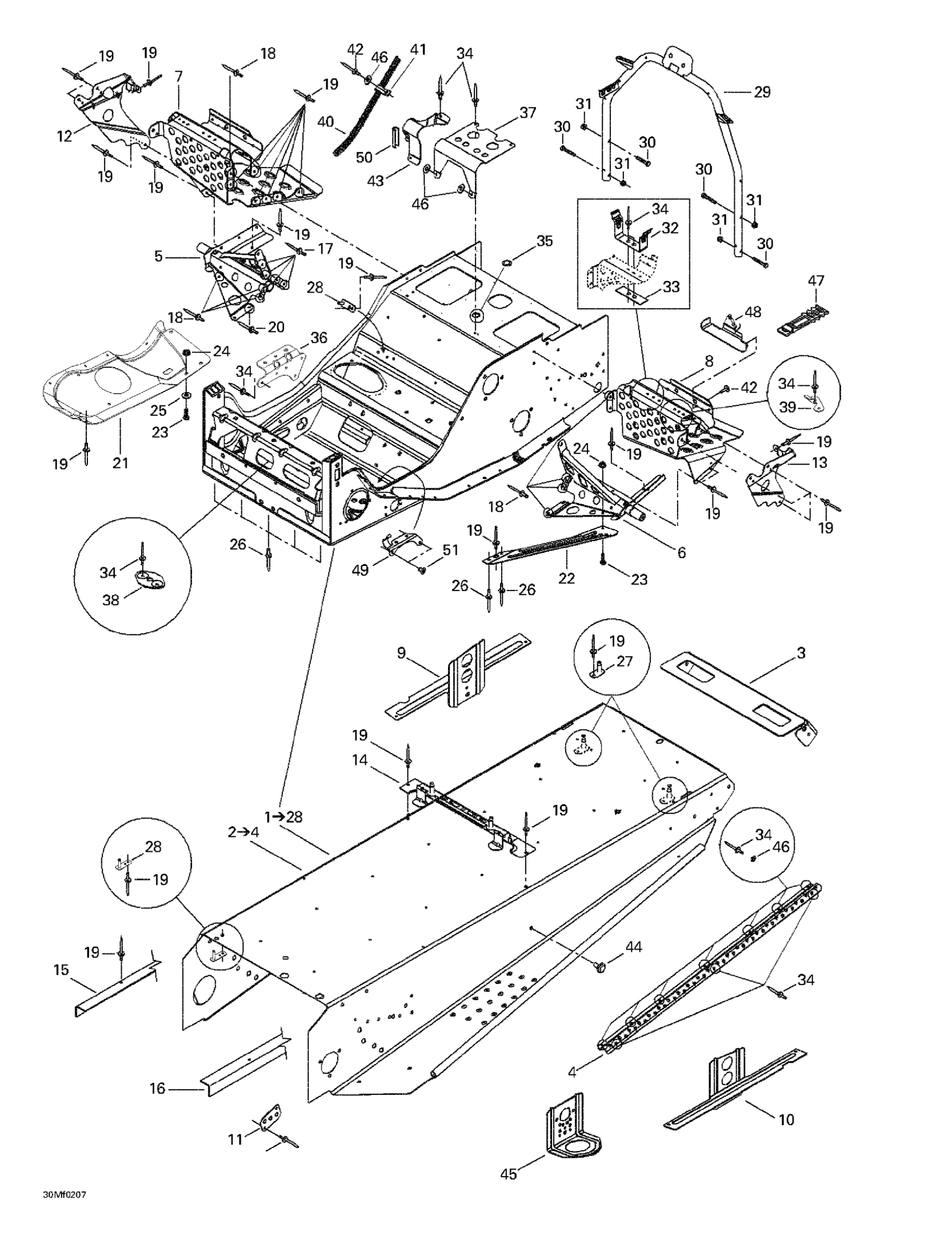

Ski-Doo Summit 500 F, 2002 09- Frame And Accessories Diagram

#

Description
Price

1

Frame | Includes 1 - 34.

518323014

Unavailable

2

Forming Frame | Includes 2 - 5.

518323024

Unavailable

3

REAR CAP - Call your local BRP dealership

518321303

Unavailable

4

STRIP - Call your local BRP dealership

518319405

Unavailable

5

RH Footrest Support

518320506

Unavailable

6

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

7

RH Footrest

518322393

Unavailable

8

LH Footrest

518322394

Unavailable

9

RH Slide Bracket | (RENEGADE) MX Z 600. MX Z 700. MX Z 800.

518322627

Unavailable

10

LH Slide Bracket | (RENEGADE) MX Z 600. MX Z 700. MX Z 800.

518322628

Unavailable

11

Reinforcement Plate

518321321

Unavailable

12

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

13

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

14

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

15

RH Frame Reinforcement

518316769

Unavailable

16

LH Frame Reinforcement

518316768

Unavailable

17

Avex Rivet

390909200

$0.30

18

Avex Rivet

390909100

$0.30

19

Pop Rivet 3/16"

390402200

$0.35

20

Pop Rivet 3/16"

390402300

$0.75

21

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

22

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

23

Hex. Screw M5 X 20

207152044

$0.90

24

Hex. Flange Elastic Nut M5

233251414

$1.04

25

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Guide

518319730

Unavailable

28

Double Bracket

518322391

Unavailable

29

Handle Support

518322755

Unavailable

30

Hex. Flange Screw M6 X 35

207663544

$0.90

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Belt Guard Bracket

518202100

$17.49

33

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

34

Pop Rivet 3/16"

390402200

$0.35

35

CAP - Call your local BRP dealership

414859400

Unavailable

36

Muffler Support

518322635

Unavailable

37

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

38

Plate Bracket

518201307

Unavailable

39

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

40

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

41

Open Clamp

518321570

$7.69

42

Pop Rivet 3/16"

390406500

$0.88

43

Hose Support

518322699

Unavailable

44

Panel Fastener

518321954

$7.69

45

Front Bracket

518321495

Unavailable

46

Flat Washer

517225900

$0.18

47

LATCH - Call your local BRP dealership

570069700

Unavailable

48

Tool Kit Support

518321999

Unavailable

49

Cable Support

515175254

Unavailable

50

Was 271000110 Protection Trim

219704353

$15.99

51

Pop Rivet 3/16"

390402300

$0.75
