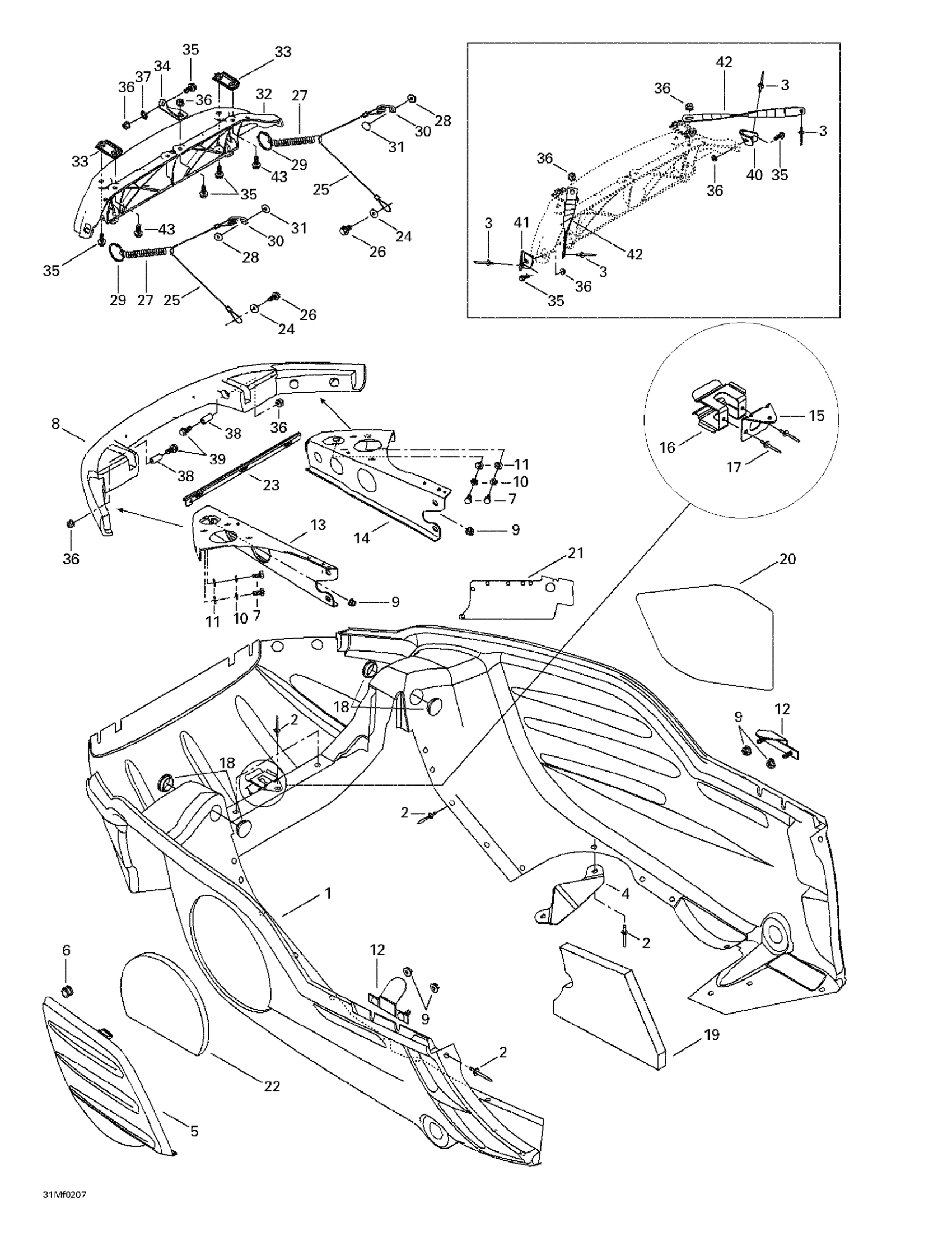

Ski-Doo Summit 500 F, 2002 09- Bottom Pan Diagram

#

Description
Price

1

Deep Black, Bottom Pan

502006633

Unavailable

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3

Pop Rivet 3/16"

390406500

$0.88

4

Snow Deflector | RENEGADE MX Z 600. MX Z 800.

502006637

Unavailable

5

BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership

502006506

Unavailable

6

Grommet

414036300

$2.79

7

Hex. Screw M6 X 14

207161444

$0.58

8

Bumper, Black

502006719

$101.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Lock Washer M6, Black

234161471

$0.53

11

Flat Washer

224061121

$0.53

12

LH Bracket

502006645

Unavailable

13

LH SUPPORT - Call your local BRP dealership

502006597

Unavailable

14

RH Support

502006596

Unavailable

15

Belt Support

502006599

Unavailable

16

Bracket

517281905

$18.49

17

Pop Rivet 3/16"

390402400

$0.35

18

Black, Nylon Cap

414916600

$4.69

19

Bottom Foam

502006558

Unavailable

20

Reflective Sheet

514052718

Unavailable

21

REFLECTIVE SHEET - Call your local BRP dealership

514053390

Unavailable

22

Bottom Pan Door Foam

502006559

Unavailable

23

Bottom Pan Reinforcement

502006647

Unavailable

24

Washer | DS 650 X

391301600

$0.48

25

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Spring

415043300

Unavailable

28

Washer

517124300

$0.19

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Bracket

517262800

Unavailable

31

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

32

Hinge

517302631

$48.99

33

HINGE SIDE PLATE - Call your local BRP dealership

517302176

Unavailable

34

Hinge Center Plate

517302045

Unavailable

35

Hex. Flange Screw M6 X 16

207661654

$2.11

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Lock Washer Serrated M6

250200041

$1.15

38

BUSHING - Call your local BRP dealership

517302179

Unavailable

39

Hex. Flange Screw M6 X 35

207663544

$0.90

40

RH Corner Support

517302254

Unavailable

41

LH Corner Support

517302255

Unavailable

42

Hood Clamp

517302256

Unavailable

43

Hex. Flange Screw M6 X 25

207662544

$0.64
