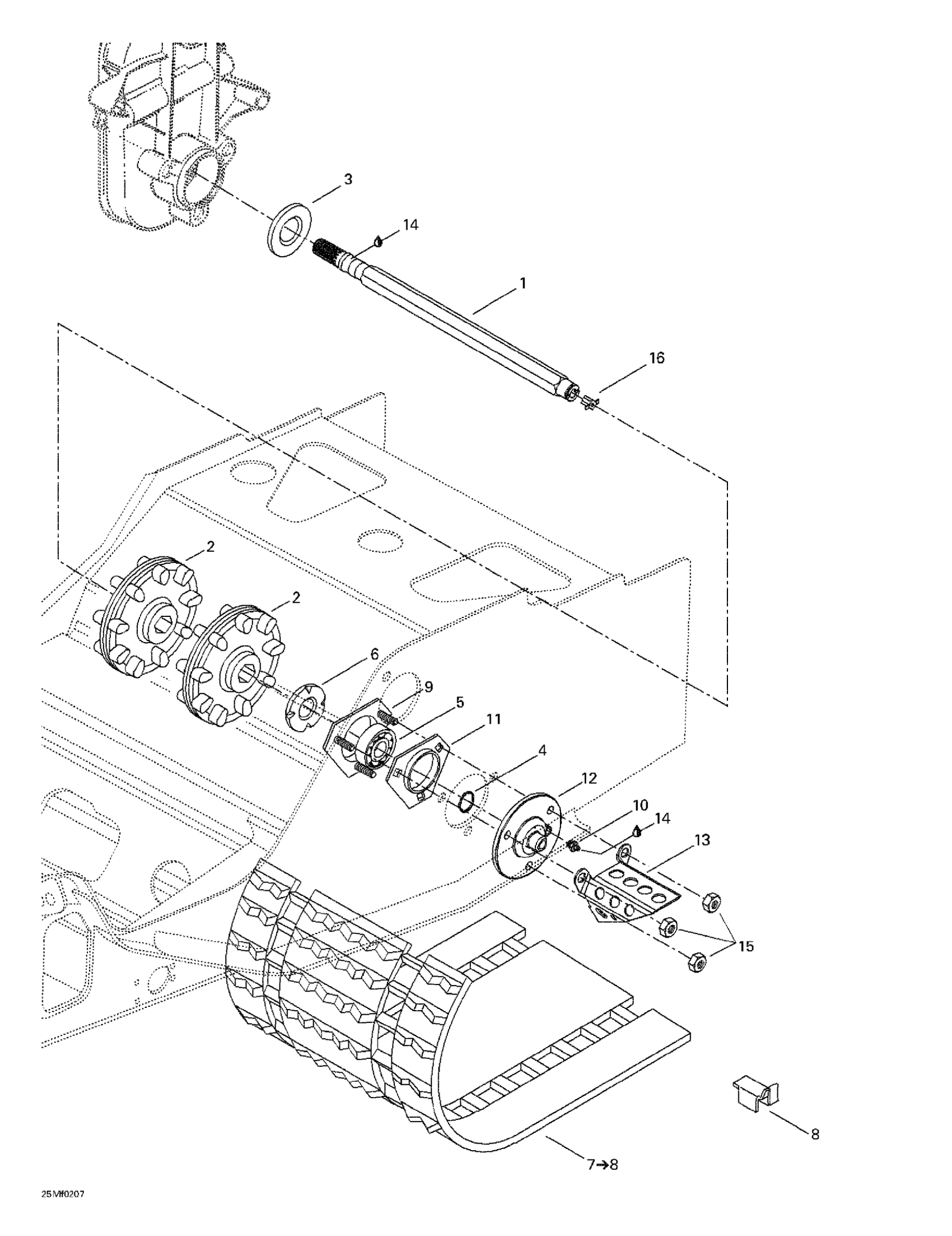

Ski-Doo Summit 500 F, 2002 05- Drive Axle And Track Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

Oil Seal Ass'y

504151918

$20.49

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track Ass'y | Includes 7 - 8.

570211100

Unavailable

8

Track Guide | Track Width 16''

415129528

$3.29

9

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

10

Grease Fitting

408200700

$3.49

11

FLANGE - Call your local BRP dealership

501025000

Unavailable

12

Flange, Speedo Drive Insert

504151836

Unavailable

13

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable
