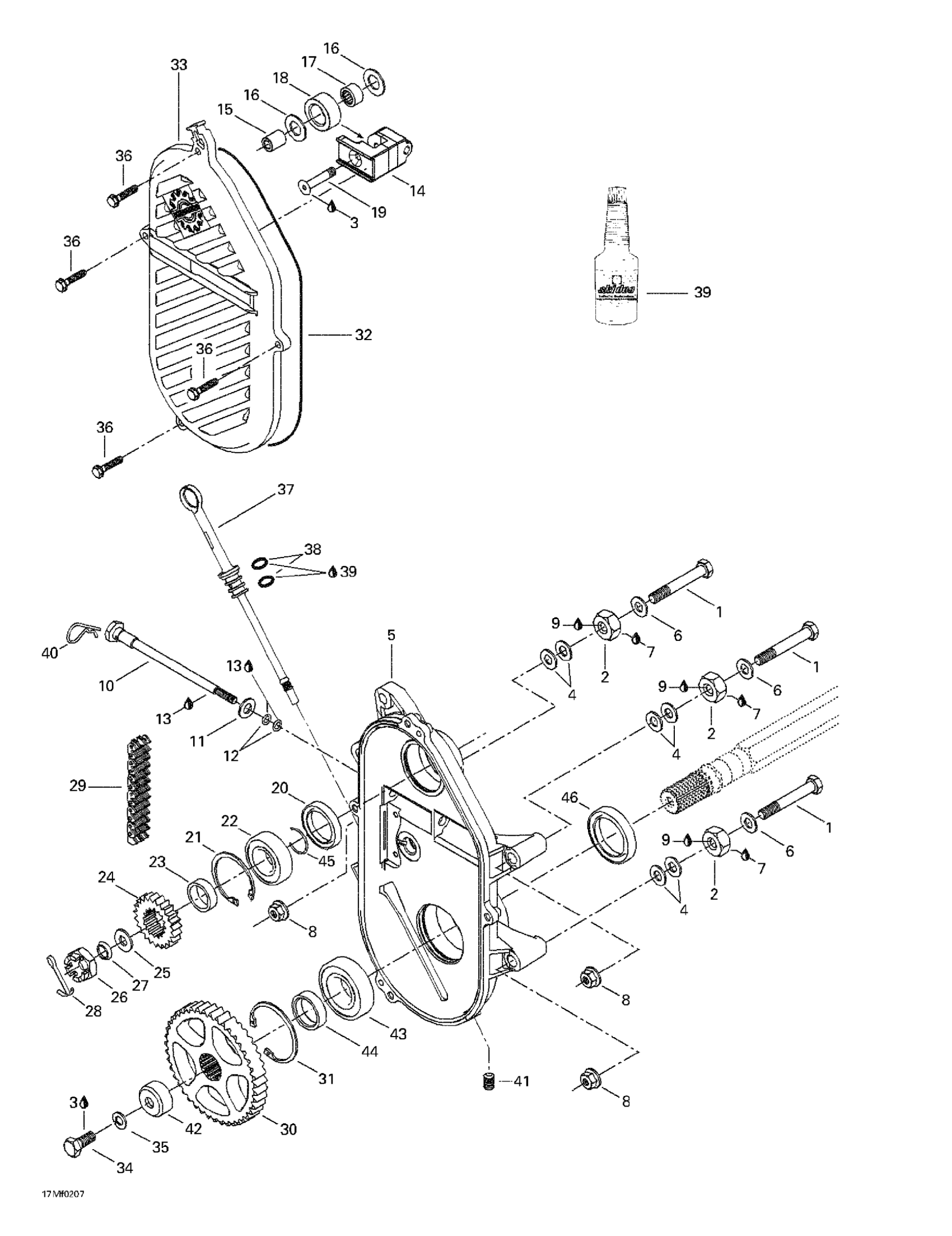

Ski-Doo Summit 500 F, 2002 05- Chaincase Diagram

#

Description
Price

1

HEX. SCREW M10 X 80 - Call your local BRP dealership

207108044

Unavailable

2

Spacer

504083800

Unavailable

3

Loctite 271, 10 ml

293800005

$26.99

4

WASHER - Call your local BRP dealership

504073700

Unavailable

5

CHAINCASE - Call your local BRP dealership This part replaces 504152064.

504153562

Unavailable

6

Washer

503183800

$3.28

7

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

8

Hex. Flange Elastic Nut M10

233201414

$1.58

9

Loctite 243, 10 ml

293800060

$21.49

10

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

11

Flat Washer 10 mm

234001410

$1.26

12

O-Ring

414484400

$7.51

13

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

14

Chain Tensioner

504151951

Unavailable

15

SPACER - Call your local BRP dealership

504080200

Unavailable

16

WASHER - Call your local BRP dealership

504080300

Unavailable

17

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

18

ROLLER - Call your local BRP dealership

414531300

Unavailable

19

SCREW - Call your local BRP dealership

732601144

Unavailable

20

SEAL - Call your local BRP dealership

504151927

Unavailable

21

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

22

Ball Bearing

293350115

$12.11

23

SHIM - Call your local BRP dealership

504147200

Unavailable

24

Sprocket 17 Th

504071800

Unavailable

25

SPACER - Call your local BRP dealership

504152049

Unavailable

26

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

27

Spring Washer

417000900

Unavailable

28

Cotter Pin

371801300

Unavailable

29

DRIVING CHAIN (72 LINKS, NARROW) - Call your local BRP dealership | 380F

504151883

Unavailable

30

43 TEETH SPROCKET, LARGE - Call your local BRP dealership

504148600

Unavailable

31

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

32

O-Ring

415046400

$24.99

33

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

34

Hex. Screw M10 X 25

207102544

$1.37

35

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

36

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

37

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

38

O-RING - Call your local BRP dealership

414969400

Unavailable

39

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

40

Hair Pin

414575600

$1.89

41

Plug 1/8”-27

504151921

$4.19

42

Cap

501022400

Unavailable

43

Ball Bearing

504152005

$46.49

44

Inner Shim

501021800

Unavailable

45

Circlip

371910000

$1.19

46

Oil Seal Ass'y

504151918

$20.49
