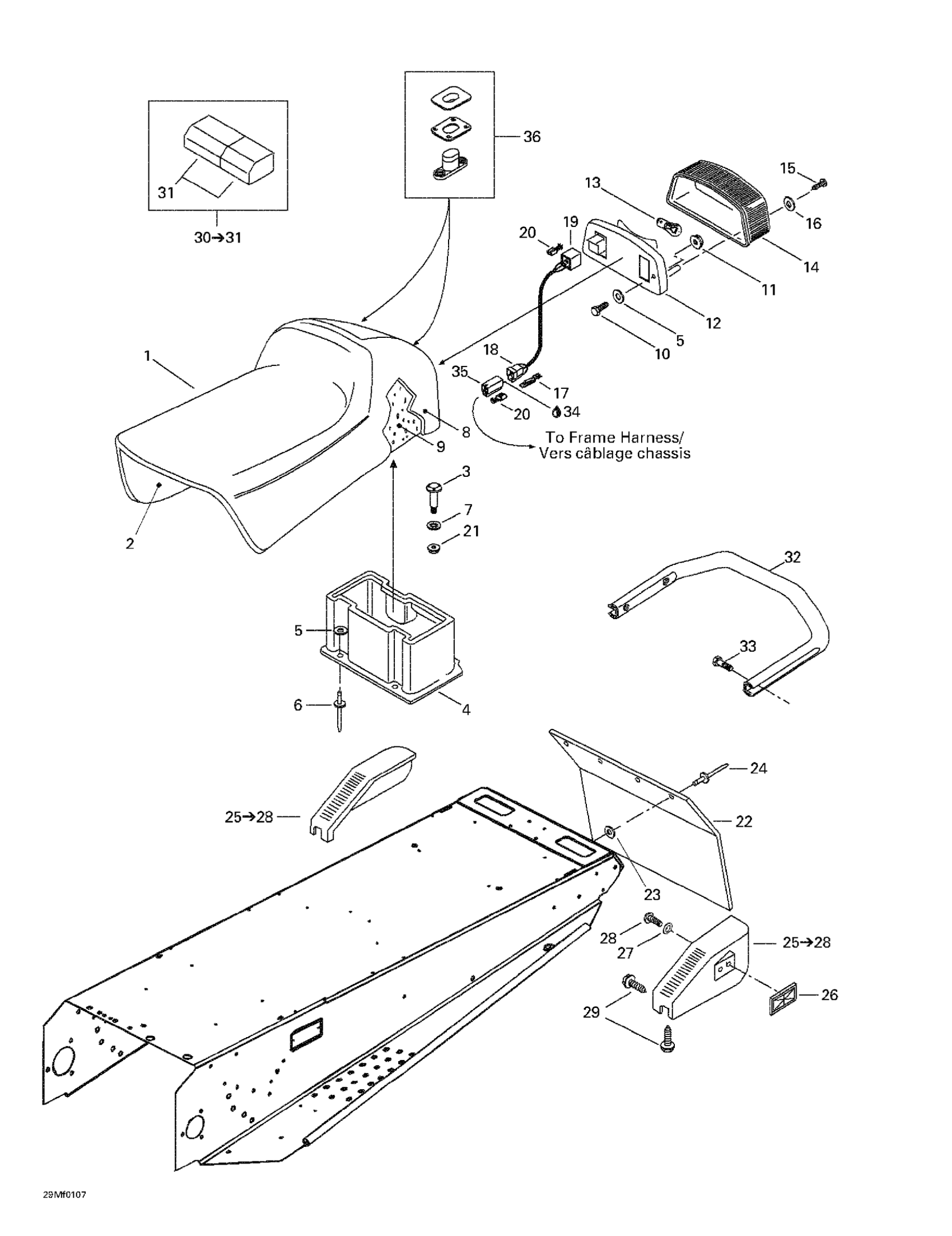

Ski-Doo Summit 500 F, 2001 09- Seat And Accessories Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Sub Seat
510003597
Unavailable
3
«T» Bolt
732601221
Unavailable
4
Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.
572106300
Unavailable
5
WASHER - Call your local BRP dealership | MX Z X 600RS
517297900
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
8
Seat Cover | MX Z 380 F.
510003891
Unavailable
9
Foam Seat
414837100
Unavailable
12
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
16
Washer - Call your local BRP dealership
414516400
Unavailable
17
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
18
FEMALE HOUSING - Call your local BRP dealership
409204200
Unavailable
19
Female Terminal Housing, 3 Circuits
515175250
Unavailable
22
Snow Guard | MX Z 380 F.
572099100
Unavailable
25
RH Moulding Ass'y | Includes 25 - 28.
580641600
Unavailable
LH Moulding Ass'y
580641700
Unavailable
26
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
27
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
28
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
29
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
30
TOOL KIT - Call your local BRP dealership
529035500
Unavailable
31
TOOLS BOX - Call your local BRP dealership
708200043
Unavailable
32
REAR BUMPER - Call your local BRP dealership
518322438
Unavailable
35
Female Housing
409204300
Unavailable
36
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
