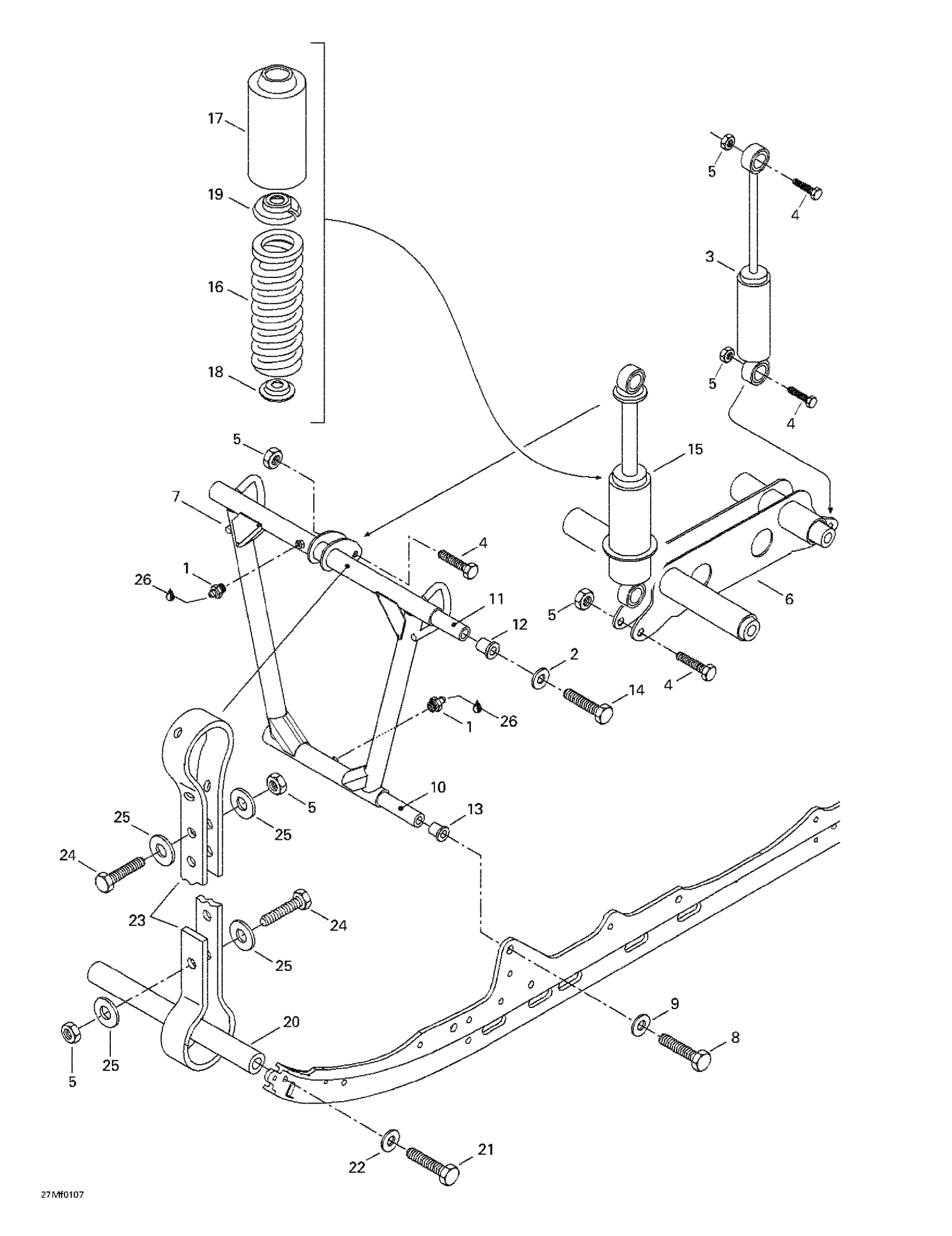

Ski-Doo Summit 500 F, 2001 08- Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

$3.49

2

Washer

732900049

$0.58

3

Rear Shock

503189612

Unavailable

4

Hex. Screw M8 X 40

207084044

$1.15

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Shock Support

503189466

Unavailable

7

Welded Front Arm

503189311

Unavailable

8

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

9

Washer

503189276

$3.28

10

SHAFT - Call your local BRP dealership

503189313

Unavailable

11

SHAFT - Call your local BRP dealership

503190387

Unavailable

12

Bushing

503189324

$14.15

13

CUSHION - Call your local BRP dealership

503189323

Unavailable

14

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

15

Shock

503189611

Unavailable

16

Spring

503189000

Unavailable

17

Protector

503193663

$37.99

18

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

19

Spring Stopper

706200881

$12.99

20

Axle

503151600

$18.49

21

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

22

Washer

503189157

$3.28

23

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

24

Hex. Screw M8 X 25

207182544

$0.90

25

Flat Washer

224081301

$0.88

26

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
