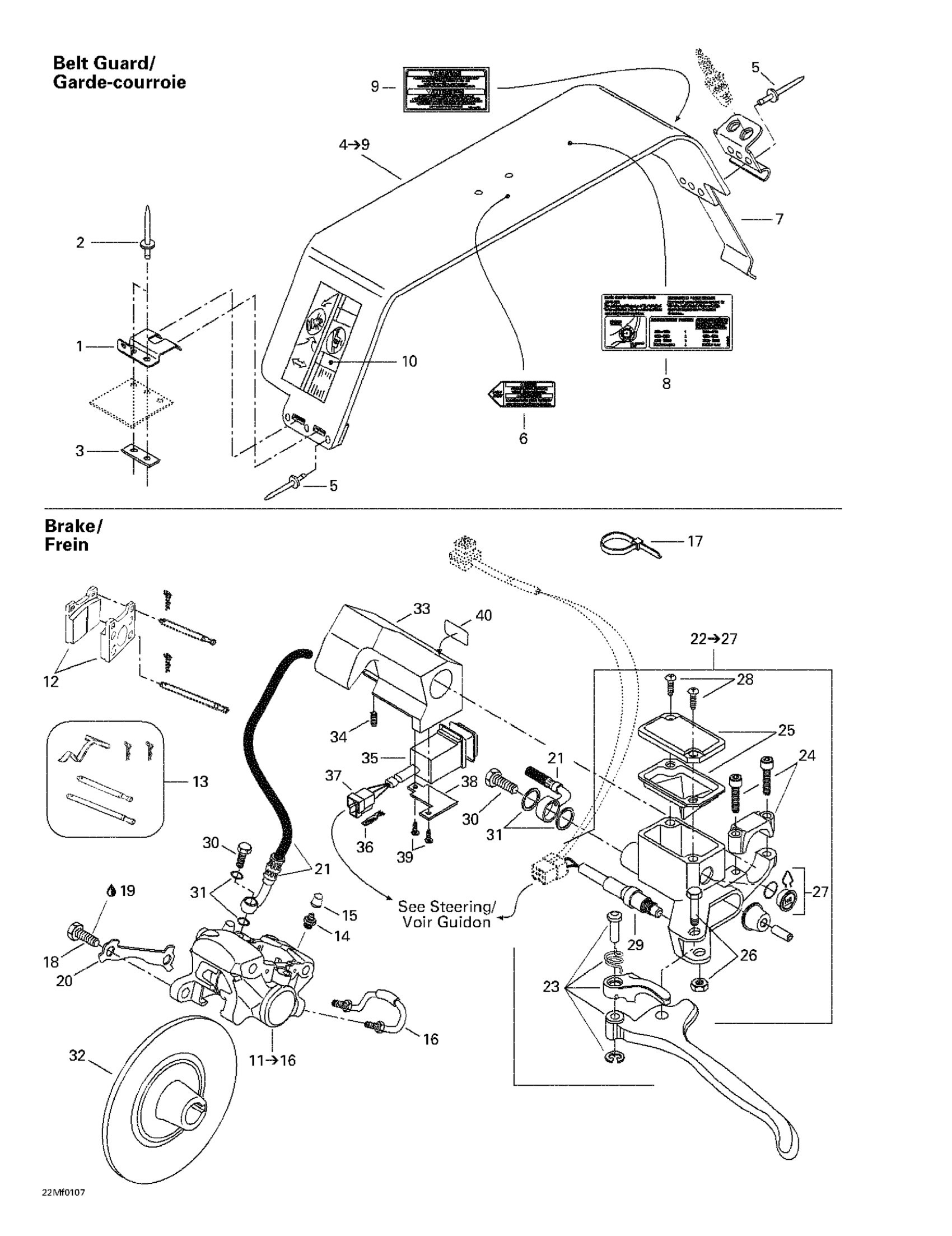

Ski-Doo Summit 500 F, 2001 Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Pulley Guard Bracket

518314200

Unavailable

2

Pop Rivet 3/16"

390402200

$0.26

3

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

4

Belt Guard Ass'y | Includes 4 - 9.

417300177

Unavailable

5

Pop Rivet 3/16"

390402200

$0.26

6

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

7

Tool Box Spring

414941800

Unavailable

8

Label Calibration

516001202

Unavailable

9

Label Caution

516000681

Unavailable

10

Suspension Adjustment Decal

418001706

Unavailable

11

Caliper | Includes 6 - 11. 500 F.

415034500

Unavailable

12

Brake Pad Kit

415129172

$50.74

13

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

14

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

15

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

16

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

17

Tie-Rap 180 mm

414115200

$0.09

18

Hex. Screw M10 X 35

207103544

$1.42

19

Loctite 243, 10 ml

293800060

$20.77

20

Locking Tab

507029900

Unavailable

21

HOSE - Call your local BRP dealership

507032219

Unavailable

22

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$346.12

23

LEVER - Call your local BRP dealership

507032428

Unavailable

24

Clamp And Screw Kit

507032477

$22.79

25

Cap

415029900

$41.51

26

Pin Ass'y

415030000

$17.66

27

WINDOW - Call your local BRP dealership

414990600

Unavailable

28

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

29

Microswitch

507032366

$104.58

30

Banjo Bolt

414920500

$8.49

31

Washer

414920600

$1.52

32

Brake Disk

507032203

Unavailable

33

DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550

572079500

Unavailable

34

Socket Set Screw M8 X 10

414440800

$4.00

35

Dimmer Switch

515175371

Unavailable

36

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

37

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

38

Plate | SWT 550

517283800

Unavailable

39

Screw

414473200

Unavailable

40

Switch Decal

415025500

Unavailable
