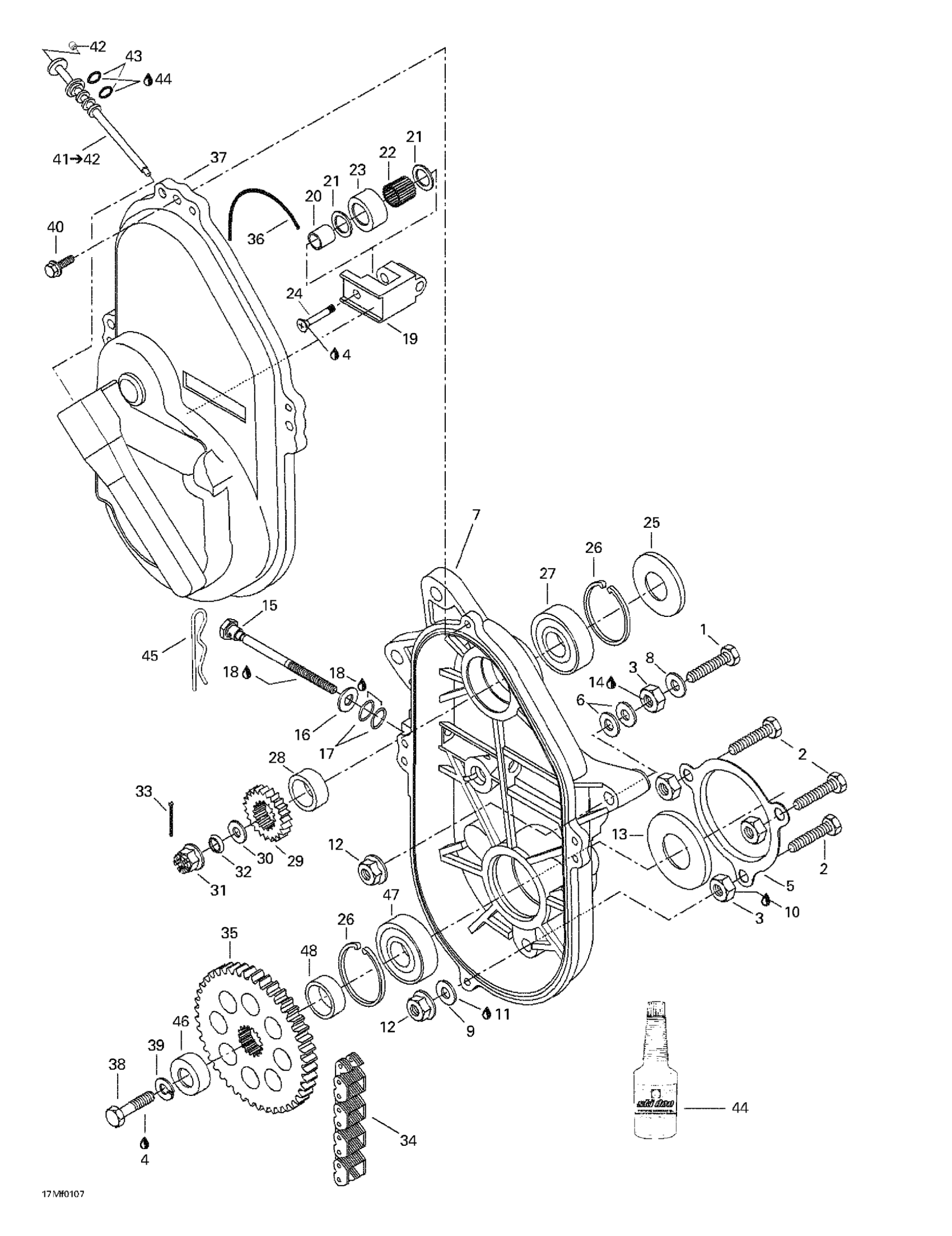

Ski-Doo Summit 500 F, 2001 05- Chaincase Diagram

#

Description
Price

1

Hex. Screw M10 x 70

207107044

Unavailable

2

Hex. Screw M10 x 45

207104544

Unavailable

3

Spacer

504083800

Unavailable

4

Loctite 271, 10 ml

293800005

$26.99

5

Protector

501022100

Unavailable

6

WASHER - Call your local BRP dealership

504073700

Unavailable

7

Chaincase

504151785

Unavailable

8

Washer

503183800

$3.28

9

Copper Flat Washer 10 mm

234001460

Unavailable

10

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

11

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

12

Hex. Flange Elastic Nut M10

233201414

$1.58

13

Seal Oil Ass'y

504152076

$27.99

14

Loctite 243, 10 ml

293800060

$21.49

15

ADJUSTING SCREW - Call your local BRP dealership

732601311

Unavailable

16

Flat Washer 10 mm

234001410

$1.26

17

O-Ring

414484400

$7.51

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

20

SPACER - Call your local BRP dealership

504080200

Unavailable

21

WASHER - Call your local BRP dealership

504080300

Unavailable

22

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

23

ROLLER - Call your local BRP dealership

414531300

Unavailable

24

SCREW - Call your local BRP dealership

732601144

Unavailable

25

OIL SEAL - Call your local BRP dealership

414882800

Unavailable

26

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

27

Ball Bearing

293350115

$12.11

28

Shim

504093400

Unavailable

29

Sprocket 17 Th

504071800

Unavailable

30

Washer

504087100

Unavailable

31

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

32

Spring Washer

417000900

Unavailable

33

Cotter Pin

371801300

Unavailable

34

DRIVING CHAIN 70 M - Call your local BRP dealership

504151882

Unavailable

35

Sprocket 44Th

504070900

Unavailable

36

O-Ring

414362300

Unavailable

37

CASTING COVER - Call your local BRP dealership

080037100

$134.99

38

Hex. Screw M10 X 25

207102544

$1.37

39

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

40

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

41

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

42

SCREW-SET SOCKET DIN.916 - Call your local BRP dealership

206540490

Unavailable

43

O-RING - Call your local BRP dealership

414969400

Unavailable

44

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

45

Hair Pin

414575600

$1.89

46

CAP - Call your local BRP dealership

501026200

Unavailable

47

Ball Bearing

293350115

$12.11

48

Spacer

504146400

Unavailable
