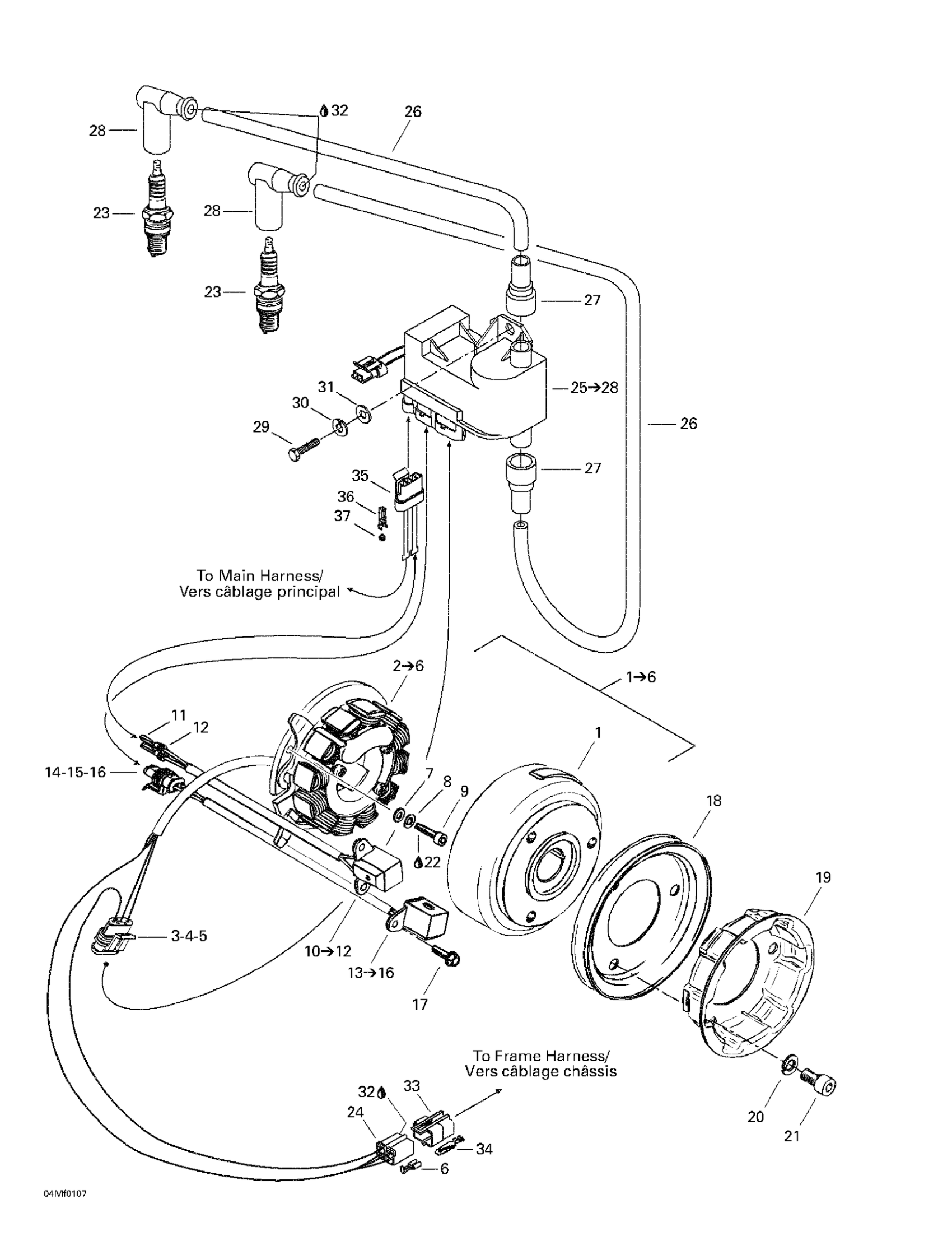

Ski-Doo Summit 500 F, 2001 03- Magneto Diagram

#

Description
Price

1

Ducati Magneto | Includes 1 to 2

420887654

Unavailable

1

Flywheel

420996824

Unavailable

2

STATOR PLATE A - Call your local BRP dealership

420886603

Unavailable

3

Female Housing, 3 Circuits

409209600

$35.99

4

Female Terminal

278001014

$3.28

5

Wire Seal

278001013

$3.28

6

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

7

Washer 5.3

420927574

$1.90

8

Lock Washer

420945750

Unavailable

9

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

10

Pick-Up

420665163

$164.99

11

Female Terminal

278001014

$3.28

12

Wire Seal

278001013

$3.28

13

PICK-UP - Call your local BRP dealership

420665160

Unavailable

14

Female Housing, 2 Circuits

409209500

$15.27

15

Female Terminal

278001014

$3.28

16

Wire Seal

278001013

$3.28

17

Taptite Screw M5 X 16

420941928

Unavailable

18

V-Belt Pulley

420980486

$37.99

19

Rope Sheave

420852414

$29.49

20

Lock Washer

420845311

$1.90

21

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

24

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

25

Calibration Module | Includes 25 - 28.

512059336

Unavailable

26

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

27

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

28

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

29

Hex. Screw M6 X 16

207161644

$0.74

30

Lock Washer M6, Black

234161471

$0.53

31

Flat Washer 6 mm

234061410

$1.36

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

34

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

35

Female Housing, 4 Circuits

409209700

$16.18

36

Female Terminal

278001014

$3.28

37

Wire Seal

278001013

$3.28
