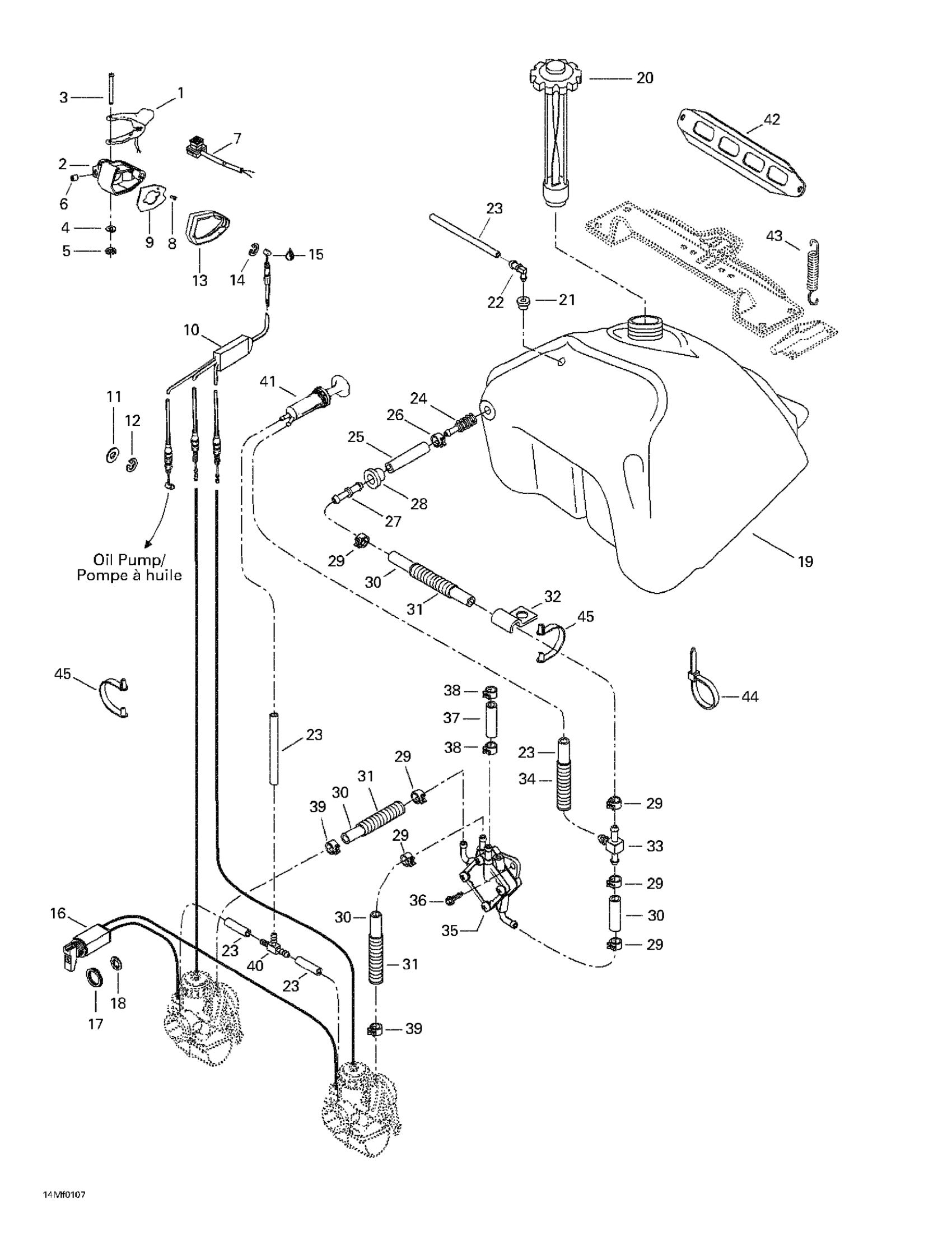

Ski-Doo Summit 500 F, 2001 02- Fuel System Diagram

#

Description
Price

1

Handle Ass'y

512060214

$124.99

2

Throttle Housing

512060603

$12.49

3

Lever Pin

414438700

$11.64

4

Flat Washer M5, Stainless

234051600

$0.77

5

Circlip | Model-RS

414439000

$4.23

6

Socket Set Screw M8 X 10

414440800

$4.12

7

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

8

Screw

414473200

Unavailable

9

Plate

512060390

$10.33

10

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

11

Flat Washer 8 mm, Nylon

234081100

$1.39

12

Circlip

414753500

$0.71

13

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

14

Circlip

414274500

$0.90

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

17

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

18

Lock Washer, Interior Teeth

394103300

Unavailable

19

Fuel Tank

572108900

Unavailable

20

Fuel Tank Cap

572161200

$38.99

21

Grommet

709200285

$9.69

22

Male Connector

414814100

$2.22

23

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

24

Fuel Filter

414865700

$10.99

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Clamp

513033011

Unavailable

27

Male Connector

414518500

$4.23

28

Grommet

570045500

$6.69

29

Spring Clamp

414554800

$0.88

30

Polyurethane Hose 10000Mm Long

219704410

$56.99

31

Tubing 10 MM 1000MM Long

219704407

$2.79

32

CLIP - Call your local BRP dealership

415018200

Unavailable

33

T-fitting

414222500

$1.69

34

Tubing 6 Mm 3000Mm Long

219704425

$13.75

35

Fuel Pump

403801000

Unavailable

36

Hex. Flange Screw M6 X 16

210261650

$1.67

37

Hose

219704549

$50.99

38

Spring Clamp

414415200

$0.88

39

Spring Clamp

414420700

$0.72

40

T-Fitting

414222400

$1.69

41

Primer

415060500

$34.99

42

Fuel Tank Bracket

517249200

Unavailable

43

SPRING - Call your local BRP dealership

517182100

Unavailable

44

Tie-Rap 180 mm

414115200

$0.11

45

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable
