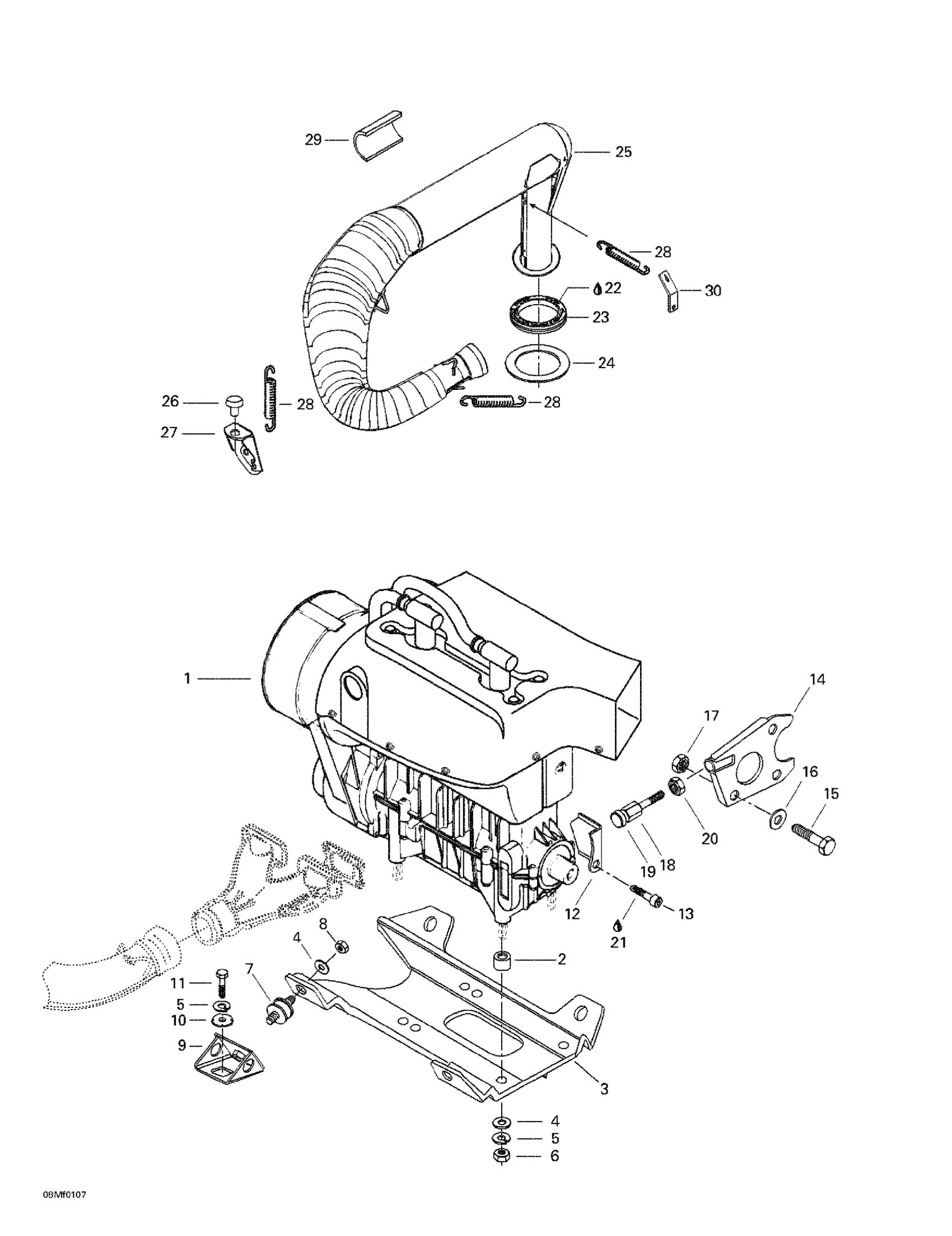

Ski-Doo Summit 500 F, 2001 01- Engine Support And Muffler Diagram

#

Description
Price

1

<<503>> Engine | MX Z 500 F. Formula DLX 500 F.

400509721

Unavailable

2

SPACER - Call your local BRP dealership

512051800

Unavailable

3

Engine Support

512059134

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.37

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Elastic Locking Nut M10 X 1.5

233601416

$1.69

9

Engine Support

512050900

Unavailable

10

Lock Washer

512056700

$3.17

11

Hex. Screw M10 X 25

207102544

$1.37

12

Stopper Plate

512059198

Unavailable

13

Hex. Screw M8 X 20

236282084

$1.48

14

Support Plate

517271800

Unavailable

15

Hex. Screw M8 X 25

207182544

$0.90

16

Flat Washer 8 mm

234081410

$0.83

17

Hex. Elastic Stop Nut M8

232581414

$0.56

18

Screw

517244200

Unavailable

19

Rod retainer

570025100

Unavailable

20

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

21

Loctite 271, 10 ml

293800005

$26.99

22

Grease, Super Lube

293550030

$28.99

23

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

24

Aluminum Washer

514049300

Unavailable

25

Muffler-Pipe | MX Z 500 F.

514046700

Unavailable

26

Rubber Bumper

514053654

$50.99

27

Muffler Support

514044100

Unavailable

28

Spring

415107100

$6.35

29

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

30

Spring Bracket

514054522

$8.45
