Description

Price

1

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

420888493

$755.99

2

Washer-Lock Din.128

420945832

$1.15

3

Hex. Screw M8 X 70

420841201

$3.06

4

Hex. Screw M8 X 45

207084544

$1.48

5

Socket Head Screw M8 X 45

420841561

Unavailable

6

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

7

Cable Grommet

420860962

$13.16

8

Stud M10 X 29/20

420940190

Unavailable

9

Stud M8 X 173.5

420840556

$15.89

10

Loctite 243, 10 ml

293800060

$21.49

11

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

12

Flat Washer 10 mm

243001410

Unavailable

13

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

14

Hex. Nut M10 X 1.5

232006414

$1.37

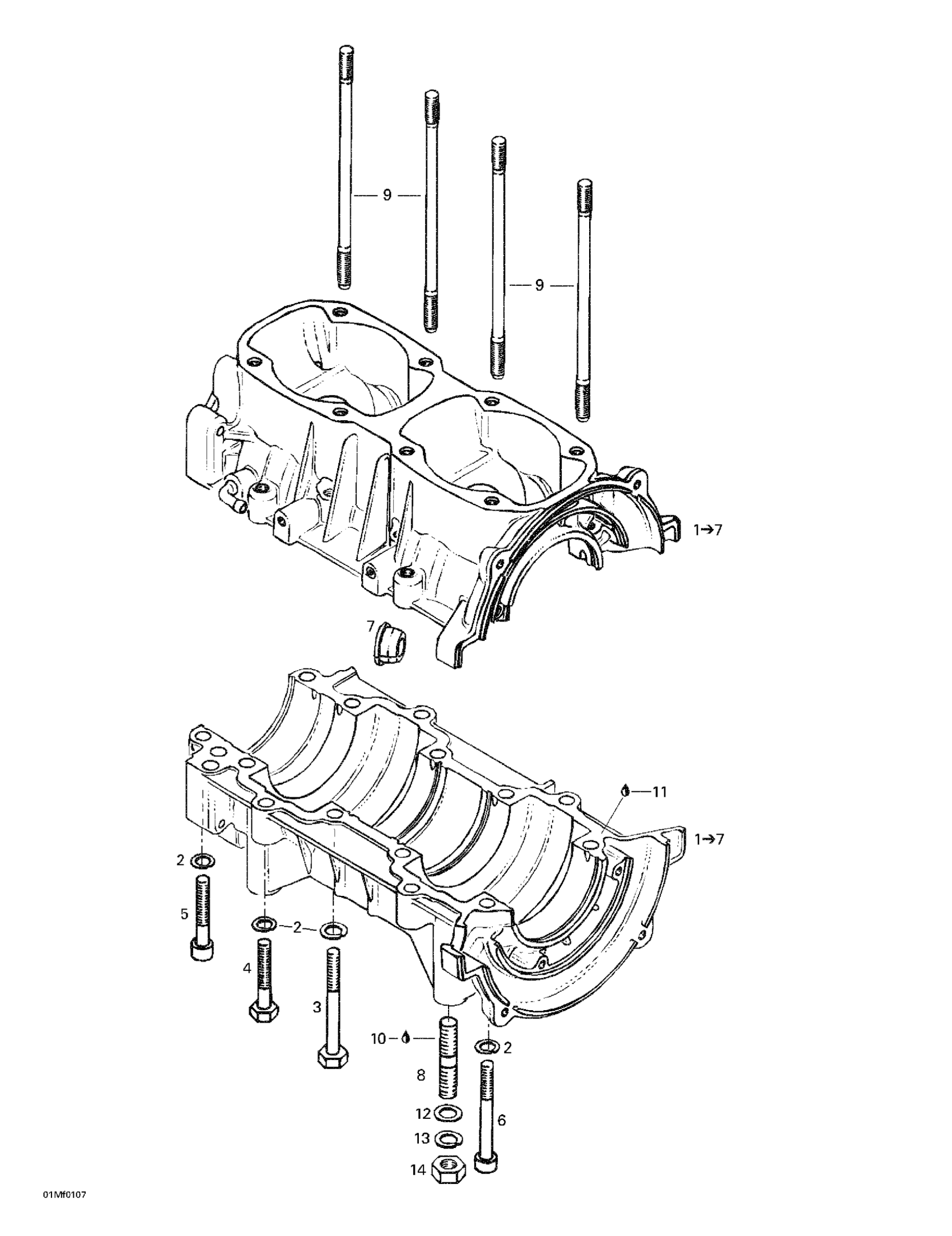

Ski-Doo Summit 500 F, 2001 01- Crankcase Diagram

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

Washer-Lock Din.128

Hex. Screw M8 X 70

Hex. Screw M8 X 45

Socket Head Screw M8 X 45

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

Cable Grommet

Stud M10 X 29/20

Stud M8 X 173.5

Loctite 243, 10 ml

Was 413702700 Loctite 515, 50 ml

Flat Washer 10 mm

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

Hex. Nut M10 X 1.5
