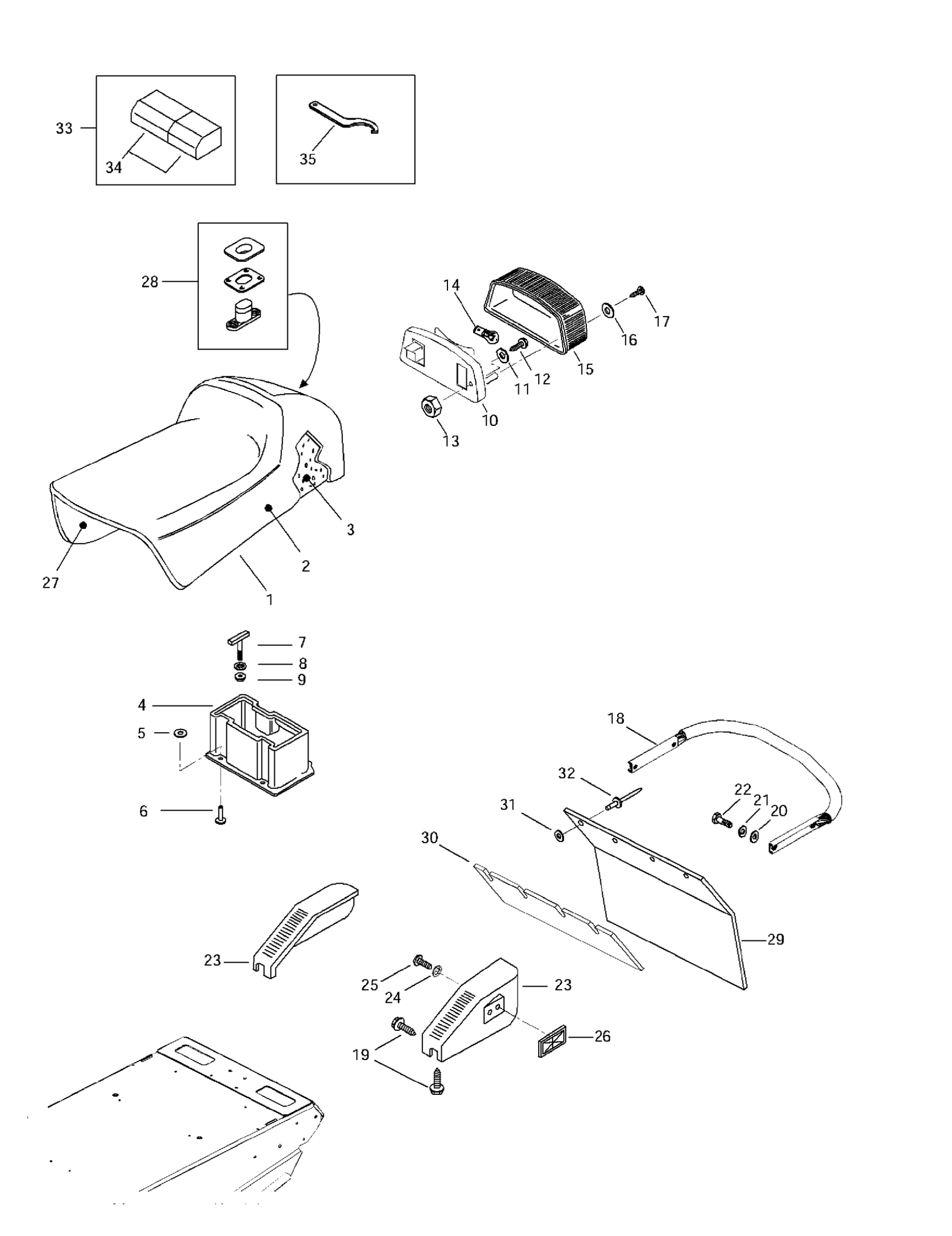

Ski-Doo Summit 500/583/670, 1997 09- Seat And Accessories Diagram

Not Available As Spare Part - Friction Washer

Unavailable

Seat Cover

415041703

Unavailable

Foam Seat

414837100

Unavailable

Rear Trunk

572039802

Unavailable

Flat Washer

517225900

$0.18

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

«T» Bolt

732601221

Unavailable

Push Nut

732610072

$2.19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

Flat Washer

517225900

$0.18

Hex. Screw M5 X 30

207053044

$1.16

Hex. Flange Elastic Nut M5

233251414

$1.04

Bulb

520000758

$9.10

Lens

414513700

$28.99

Washer - Call your local BRP dealership

414516400

Unavailable

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

REAR BUMPER - Call your local BRP dealership

518314000

Unavailable

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

Flat Washer 8 mm

234081410

$0.83

Lock Washer 8 mm

234181401

$0.92

Hex. Screw M8 X 20

207182044

$0.74

RH Moulding Ass'y | Includes 25 - 28.

580641600

Unavailable

LH Moulding Ass'y

580641700

Unavailable

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

Sub-Seat

572059600

Unavailable

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

Snow Guard

572085100

Unavailable

Reinforcement | Formula Z. Formula 583.

572097000

Unavailable

Flat Washer

517225900

$0.18

Rivet (Black) 3/16 | Formula 500 LC.

390909600

Unavailable

Tool Kit

529027900

Unavailable

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

Unavailable
