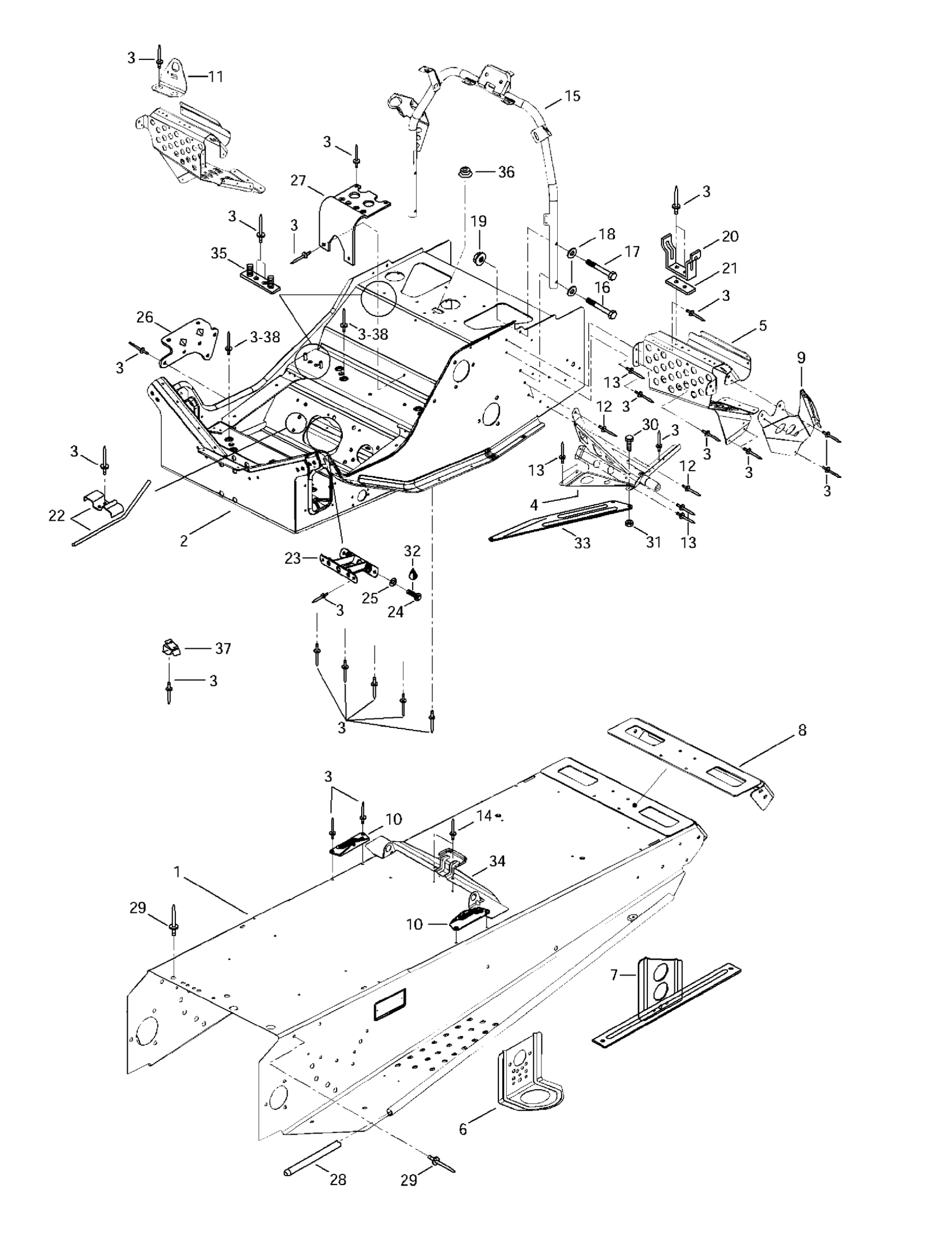

Ski-Doo Summit 500/583/670, 1997 09- Frame And Accessories Diagram

Tunnel

518316857

Unavailable

Front Member | Grand Touring 583.

518316244

Unavailable

Pop Rivet 3/16"

390402200

$0.35

LH Support

518316702

Unavailable

RH Support

518316703

Unavailable

RH Front Footrest

518313804

Unavailable

LH Front Footrest

518313805

Unavailable

Front Bracket

518312910

Unavailable

LH Rear Bracket | Formula III-LT.

518316733

Unavailable

RH Rear Bracket | Formula III-LT.

518316734

Unavailable

Cap-End

518308717

Unavailable

Upper Plate L.H

518308714

Unavailable

Upper Plate R.H

518308715

Unavailable

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

Valve Bracket | MX Z 670 HO.

518310206

Unavailable

Avex Rivet

390909200

$0.30

Avex Rivet

390909100

$0.30

Pop Rivet 3/16"

390402400

$0.35

Handle Steering Support

518309200

Unavailable

Hex. Screw M6 X 40

207064044

$1.48

Hex. Flange Screw M6 X 35

207063544

$1.37

Flat Washer 6 mm

234061410

$1.36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Belt Guard Bracket

518202100

$17.49

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

Guide Rope

518313700

Unavailable

Reinf. Plate

518304741

Unavailable

Hex. Screw M8 X 20

207182044

$0.74

Lock Washer 8 mm

234181401

$0.92

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

Pop Rivet 3/16"

390402300

$0.75

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Hex. Flange Elastic Nut M5

233251414

$1.04

Loctite 271, 10 ml

293800005

$26.99

RH Reinforcement Plate

518316709

Unavailable

LH Reinforcement. Plate

518316710

Unavailable

Seat Bracket

518310208

Unavailable

Support Plate

518315300

Unavailable

CAP - Call your local BRP dealership

414859400

Unavailable

Clip

414227300

$1.67

Plate Bracket

518201307

Unavailable
