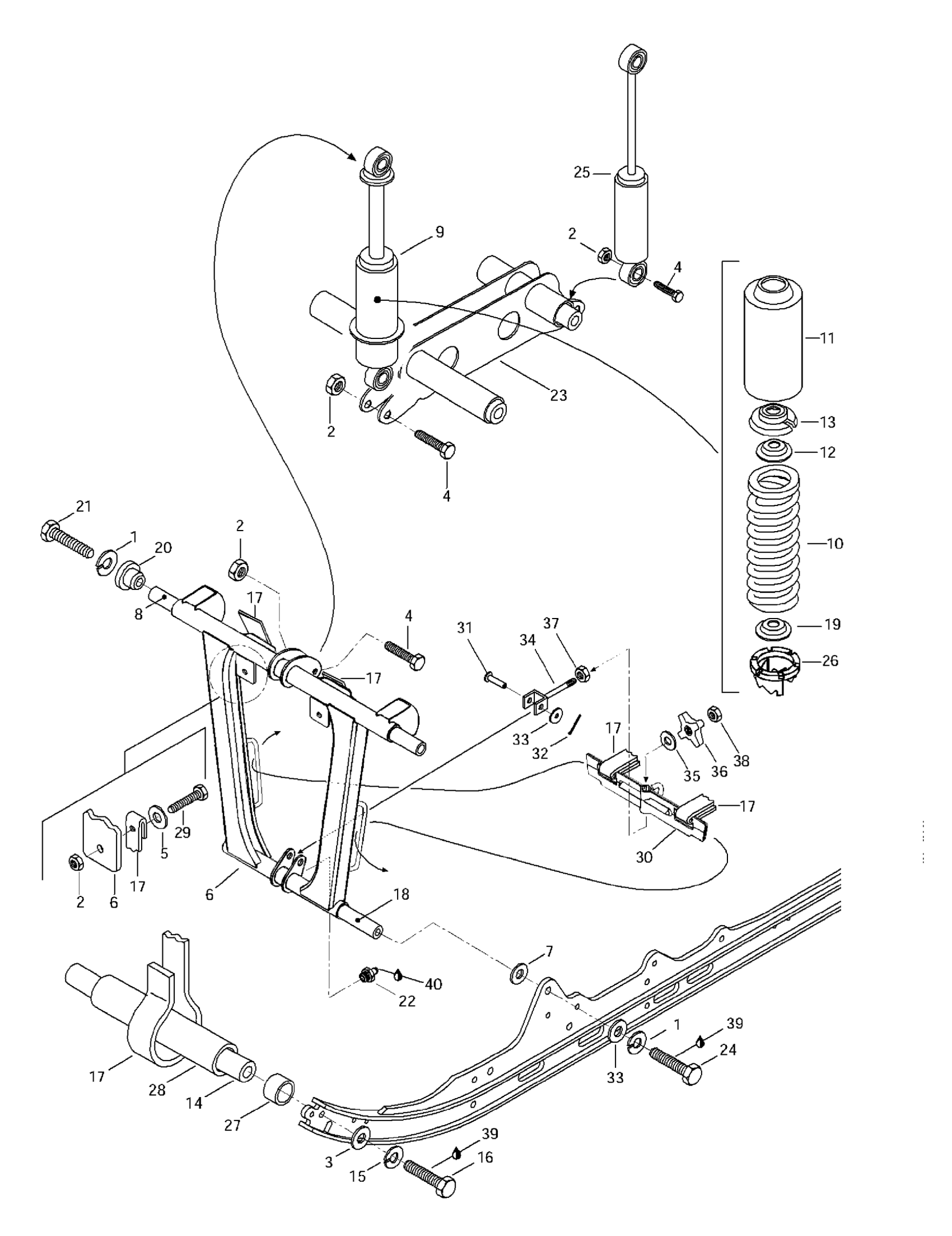

Ski-Doo Summit 500/583/670, 1997 08- Front Arm, Rear Suspension 136“ Diagram

#

Description
Price

1

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Flat Washer 8 mm

234081410

$0.83

4

Hex. Screw M8 X 40

207084044

$1.15

5

Washer

503183100

$3.17

6

Welded Front Arm

503168000

Unavailable

7

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock | Summit 500.

414975700

Unavailable

10

Center Shock Spring

415070000

Unavailable

11

Protector

503193663

$37.99

12

Cap

706200785

$4.69

13

Spring Stopper

706200881

$12.99

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap

503166400

Unavailable

18

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

19

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

20

Cushion | Formula 500. Formula 500 Deluxe.

414894900

Unavailable

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Shock Support | Summit 700 HM.

503173300

Unavailable

24

Hex. Screw M10 X 35

207103544

$1.58

25

Shock | Formula 500. Formula 500 Deluxe. Formula 583.

415040500

Unavailable

26

Cam

503169000

Unavailable

27

Spacer

572080600

Unavailable

28

Plastic Spacer

572059300

Unavailable

29

Hex. Screw M8 X 25

207182544

$0.90

30

Stap Bracket

503166200

Unavailable

31

Clevis Pin

415016200

Unavailable

32

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

33

Flat Washer 10 mm

234001410

$1.26

34

Stopper

503169300

Unavailable

35

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

36

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

37

Hex. Nut M10 X 1.5

232006414

$1.37

38

Elastic Locking Nut M10 X 1.5

233601416

$1.69

39

Loctite 271, 10 ml

293800005

$26.99

40

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable
