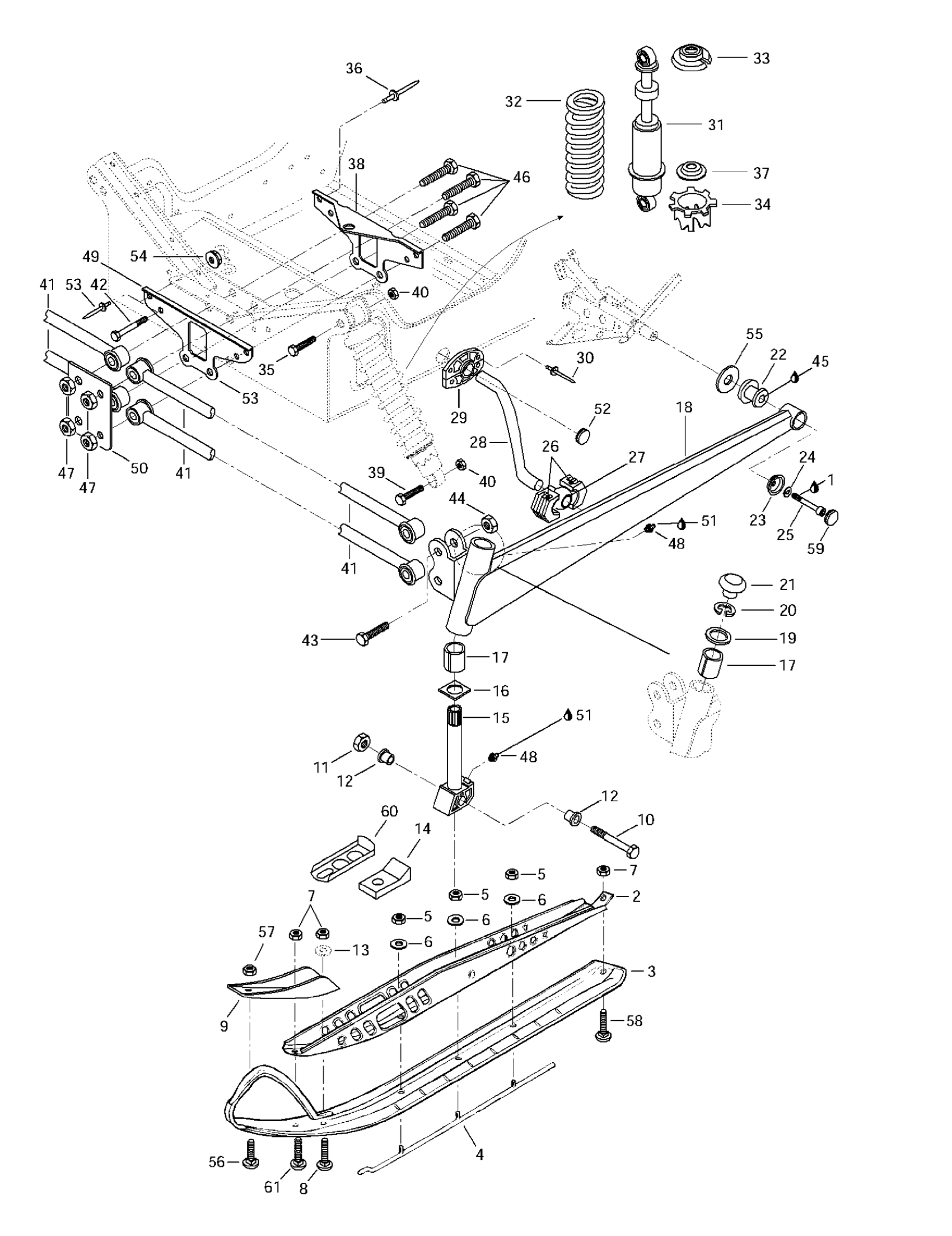

Ski-Doo Summit 500/583/670, 1997 07- Front Suspension And Ski Diagram

#

Description
Price

1

Loctite 243, 10 ml

293800060

$21.49

2

Ski Support | Formula Z.

505067500

Unavailable

Ski Support | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505068100

Unavailable

3

Ski Plastic | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

572085700

Unavailable

4

Runner Carbide (5) | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067320

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.69

6

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

222284065

Unavailable

9

Ski Reinforcement | Formula Z.

505063700

Unavailable

Ski Reinforcement | Formula 500 Deluxe.

505068000

Unavailable

10

Hex. Screw M12

732601176

Unavailable

11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

570046800

Unavailable

15

Ski Leg

506139200

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

LH Swing Arm

506133410

Unavailable

RH Swing Arm

506133510

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$12.99

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

$7.89

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Block Sliding

572069800

Unavailable

27

Ball Joint

506127300

Unavailable

28

Stabilizator | Summit X670.

506127400

Unavailable

29

Half-Bushing | Formula Deluxe 500.

572077600

Unavailable

30

Pop Rivet 3/16"

390402300

$0.75

31

Front Shock

415040300

Unavailable

32

Shock Spring (Blue)

415035600

Unavailable

33

Spring Stopper

706200881

$12.99

34

Cam

503169000

Unavailable

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

36

Avex Rivet

390909200

$0.30

37

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

38

Rear Link Plate

517254900

Unavailable

39

Hex. Screw M10 X 55

207005544

$2.22

40

Elastic Locking Nut M10 X 1.5

233601416

$1.69

41

Arm Ass'y

580649500

Unavailable

42

Hex. Screw M6 X 55

207065544

$2.11

43

Hex. Screw M12 x 50

222025075

Unavailable

44

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

45

Grease, Super Lube

293550030

$28.99

46

Hex. Screw M12 x 100

732601113

Unavailable

47

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

48

Grease Fitting

408200700

$3.49

49

Front Link Plate

517254800

Unavailable

50

Support

518306700

Unavailable

51

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

52

Black, Nylon Cap

414916600

$4.69

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

55

WASHER - Call your local BRP dealership

503146700

Unavailable

56

Carriage Bolt M6 X 25

207762544

$1.69

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

58

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

59

CAP - Call your local BRP dealership

572045900

Unavailable

60

Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067509

Unavailable

61

Carriage Bolt M8 X 30

207783044

$2.11
