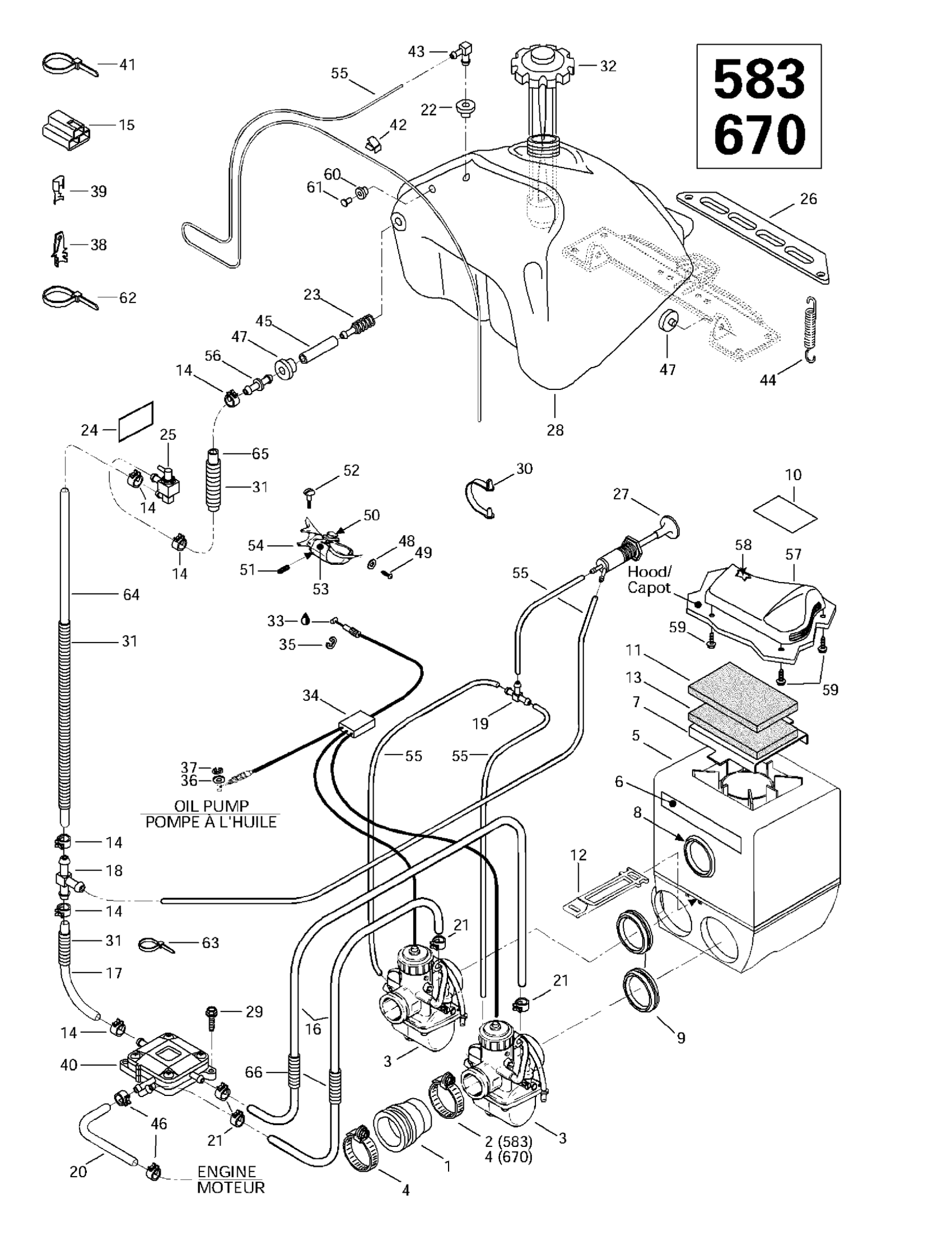

Ski-Doo Summit 500/583/670, 1997 02- Fuel System (583, 670) Diagram

Adaptor Caburetor (38 mm)

570048100

Unavailable

Adaptor Caburetor | Formula Deluxe 670.

570048400

Unavailable

Clamp (50 mm)

415038400

Unavailable

VM 38-365 Carburetor (PTO) | Includes 1 - 34. Summit 583.

403131100

Unavailable

VM 38-366 Carburetor (MAG) | Includes 1 - 34. Summit 583.

403131200

Unavailable

VM 40-90 Carburetor (PTO) | Includes 1 - 33. Summit 670.

403131500

Unavailable

VM 40-91 Carburetor (MAG) | Includes 1 - 33. Summit 670.

403131600

Unavailable

Collar | Skandic 600.

414532800

Unavailable

Air Silencer Ass'y | Summit 500. Summit 583.

580638601

Unavailable

Air Silencer Ass'y | Summit 670.

580638604

Unavailable

H.A.C. Decal

414857500

Unavailable

Grill Intake

517283900

Unavailable

H.A.C. Adaptor

570044000

Unavailable

Intake Adaptor VM 38

570048900

Unavailable

Intake Adaptor VM 40 | Formula Deluxe 670.

570049000

Unavailable

Warning Decal

414161500

Unavailable

Exterior Foam | Formula 500. Formula 500 Deluxe.

415012700

Unavailable

LATCH - Call your local BRP dealership

570069700

Unavailable

Air Filter

415014800

$12.49

Spring Clamp

414655700

$0.72

Female Terminal Housing (3 circuits)

409008500

Unavailable

Polyurethane Hose 10000Mm Long

219704410

$56.99

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

T-Fitting

415119300

$3.17

T-Fitting

414222400

$1.69

Hose

219704549

$50.99

Spring Clamp

414554800

$0.88

Grommet

709200285

$9.69

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

Security Label | MX Z 670 HO.

414931500

Unavailable

Shut Off Valve | MX Z 670 HO.

414872200

Unavailable

Fuel Tank Bracket

517249200

Unavailable

Primer

415060500

$34.99

Fuel Tank | Formula 500. Formula 500 Deluxe.

572093000

Unavailable

Hexagonal Head Screw

210262050

$2.11

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Fuel Tank Cap

572161200

$38.99

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

Throttle Cable and Housing (38 mm)

414968801

Unavailable

Throttle Cable and Housing (40 mm) | Formula Deluxe 670.

414966201

Unavailable

Circlip

414274500

$0.90

Flat Washer 8 mm, Nylon

234081100

$1.39

Circlip

414753500

$0.71

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

Female Terminal PACKARD

561503200

Unavailable

Fuel Pump Ass'y | MX Z 670 HO.

403901200

Unavailable

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

Male Connector

414814100

$2.22

SPRING - Call your local BRP dealership

517182100

Unavailable

Hose

415005700

$11.58

Spring Clamp

414415200

$0.88

Grommet | Europe

707800347

$10.49

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

Screw

414473200

Unavailable

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

Socket Set Screw M8 X 10

414440800

$4.12

Flange Screw

732601143

$4.12

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

Handle Ass'y

512059348

$93.99

Heat Throttle Handle Ass'y (40 mm) | Formula Deluxe 670.

572057000

Unavailable

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

Male Connector

414872700

$1.90

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

Air Filter

414972600

$63.99

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

Grommet

570045500

$6.69

Cap

572092900

$20.49

Tie Wrap 368 mm

293750008

$1.04

Tie Wrap 142 mm

293750002

$1.25

Hose | Formula Z. Formula 583.

414933900

Unavailable

Hose Formed | Formula Z. Formula 583.

415060400

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable
