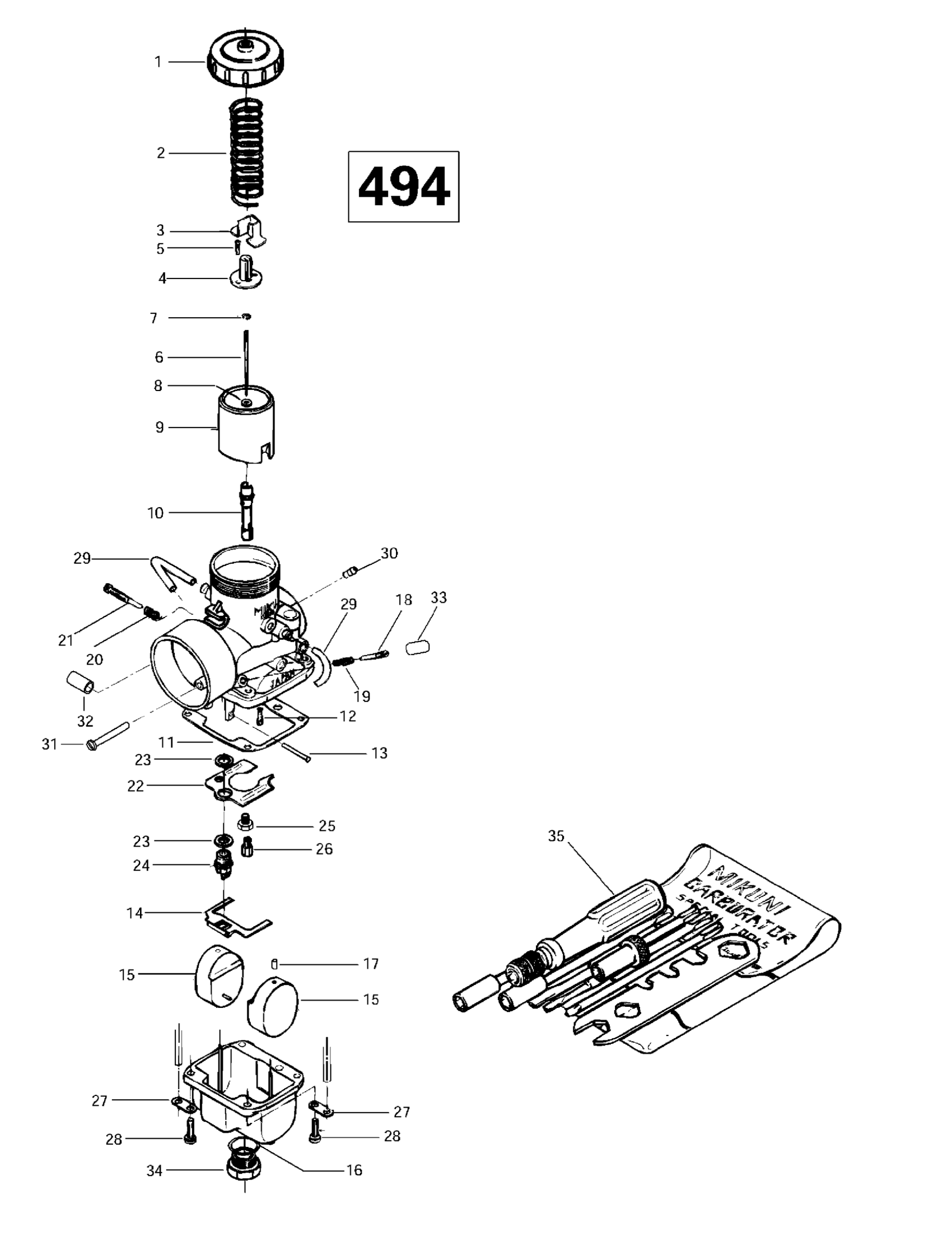

Ski-Doo Summit 500/583/670, 1997 02- Carburetors (494) Diagram
#
Description
Price
1
VM 38-363 Carburetor (PTO) | Includes 1 - 34. Summit 500.
403130900
Unavailable
1
VM 38-364 Carburetor (MAG) | Includes 1 - 34. Summit 500.
403131000
Unavailable
1
COVER - Call your local BRP dealership
404105100
Unavailable
4
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
6
Jet Needle J8 6FEY1 | Summit 583.
404156800
Unavailable
8
NEEDLE JET - Call your local BRP dealership
404107000
Unavailable
9
Piston Valve CA 2.5
404131300
Unavailable
10
Needle Jet NJ-480 | Summit 500.
404157000
Unavailable
11
GASKET - Call your local BRP dealership
404104700
Unavailable
12
Pilot Jet PJ 75 | Summit 500.
404148100
Unavailable
14
FLOAT LEVER - Call your local BRP dealership
404105000
Unavailable
15
FLOAT - Call your local BRP dealership
404105400
Unavailable
16
O-RING - Call your local BRP dealership
404101500
Unavailable
18
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
19
SPRING - Call your local BRP dealership
404139800
Unavailable
21
IDLE SPEED SCREW - Call your local BRP dealership
404102800
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
27
PLATE - Call your local BRP dealership
404103000
Unavailable
29
Hose | Grand Touring SE.
404109800
Unavailable
31
Plug Screw
404131700
Unavailable
33
Cap
404155200
Unavailable
34
DRAIN PLUG SCREW - Call your local BRP dealership
404105600
Unavailable
35
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
