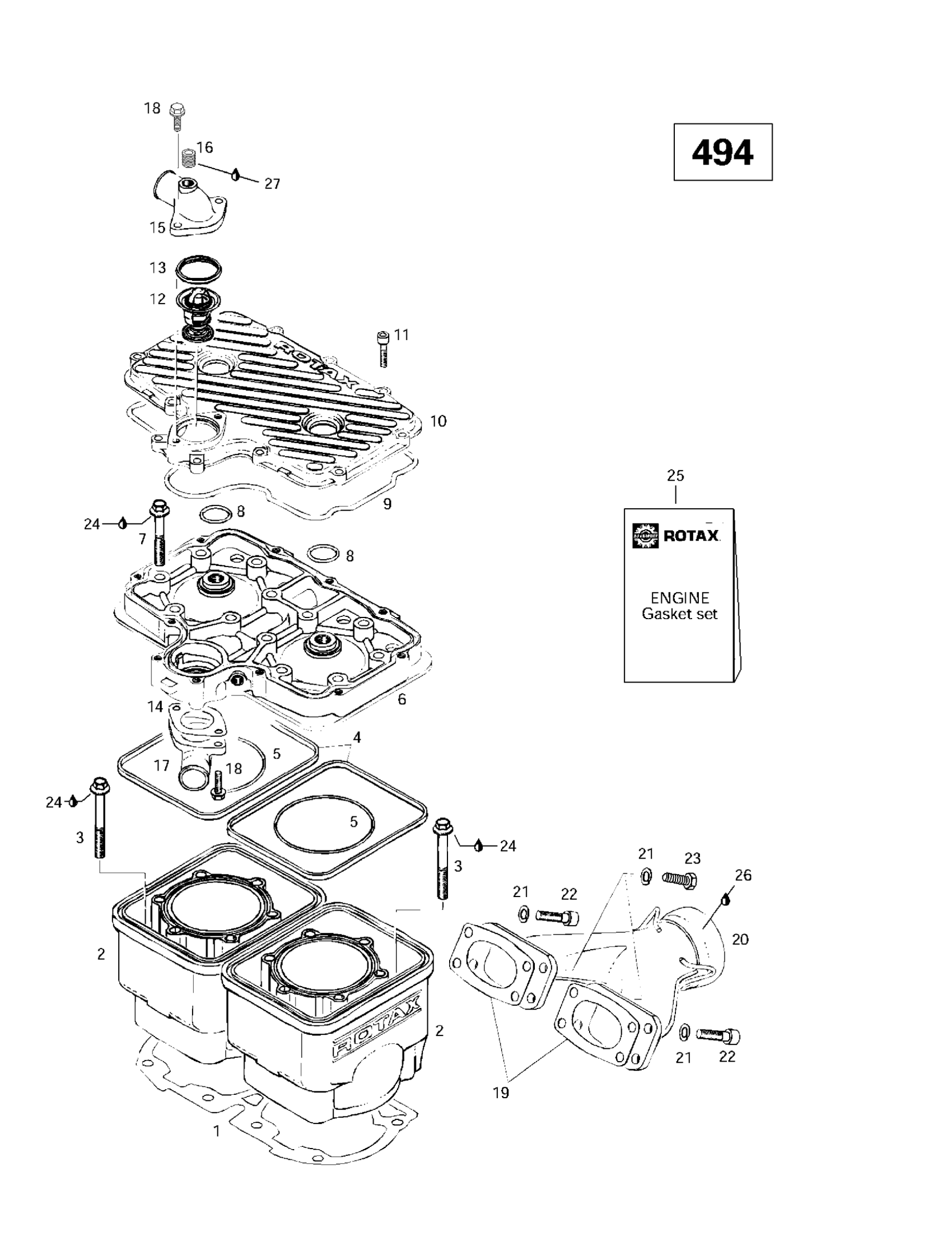

Ski-Doo Summit 500/583/670, 1997 01- Cylinder, Exhaust Manifold (494) Diagram

#

Description
Price

1

Double Gasket 0.3 mm

420931360

Unavailable

Gasket Double 0.4 mm

420931361

Unavailable

Double Gasket 0.6 mm

420931362

Unavailable

2

Cylinder With Sleeve Ass'y | Formula 500. Formula 500 Deluxe.

420923148

Unavailable

3

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

4

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

420850040

Unavailable

5

O-Ring | Grand Touring 500.

420831792

$15.89

6

Cylinder Head (Yellow) | Skandic Wide Track LC.

420923160

Unavailable

7

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

8

O-Ring

420430782

$5.39

9

O-Ring

420931260

Unavailable

10

Cylinder Head (Yellow) | Skandic Wide Track LC.

420913838

Unavailable

11

Socket Head Screw M6 X 25

205062544

$1.15

12

Thermostat This part replaces 414834100.

420922519

$63.99

13

SEALING RING - Call your local BRP dealership

420931270

Unavailable

14

Gasket

420850338

$11.60

15

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

16

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

17

Bent Outlet Socket

420922480

Unavailable

18

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

19

Gasket

420850535

Unavailable

20

Exhaust Manifold

420973228

Unavailable

21

Lock Washer 8 mm

234181401

$0.92

22

Socket Head Screw M8 X 30

205083044

$1.15

23

Hex. Screw M8 X 25

207182544

$0.90

24

Dow Corning 111, 150 g

413707000

$59.99

25

Gasket Set | Formula Deluxe 500 LC.

420994226

Unavailable

26

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

27

Sealant, 100 gr

413707100

Unavailable
