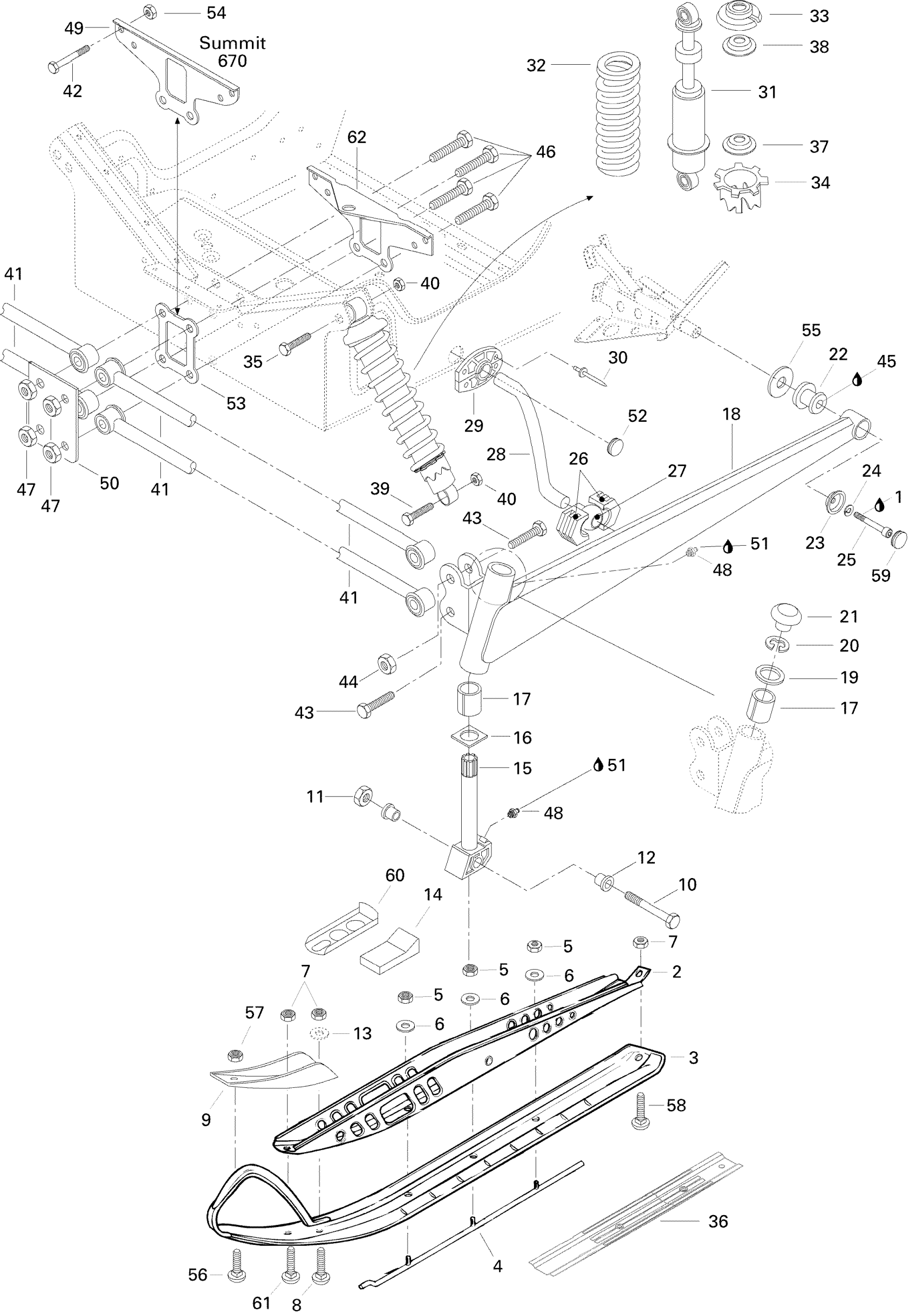

Ski-Doo Summit 500, 1996 07- Front Suspension And Ski 500 Diagram

#

Description
Price

1

Loctite 243, 10 ml

293800060

$21.49

2

Ski Support

505062400

Unavailable

3

Plastic Ski

572047400

Unavailable

4

Carbide Runner (2) Kit | Includes 4 to 5

505066920

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.69

6

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

222284065

Unavailable

9

Ski Reinforcement | Formula Z.

505063700

Unavailable

10

Hex. Screw M12

732601176

Unavailable

11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

570046800

Unavailable

15

Ski Leg

506130900

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

LH Swing Arm

506127110

Unavailable

18

RH Swing Arm

506127010

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

CAP - Call your local BRP dealership

572079100

Unavailable

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

$7.89

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Shock

414969900

Unavailable

32

Shock Spring (Green)

414968600

Unavailable

33

Spring Stopper

706200881

$12.99

34

Cam

503169000

Unavailable

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

36

Ski Shim

572077500

Unavailable

37

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

38

Cap

706200785

$4.69

39

Hex. Screw M10 X 55

207005544

$2.22

40

Elastic Locking Nut M10 X 1.5

233601416

$1.69

41

Arm Ass'y

580623000

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Hex. Screw M12 x 50

222025075

Unavailable

44

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

45

Grease, Super Lube

293550030

$28.99

46

Hex. Screw M12 x 100

732601113

Unavailable

47

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

48

Grease Fitting

408200700

$3.49

49

Not Available As Spare Parts

XXX

Unavailable

50

Support

518306700

Unavailable

51

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

52

Black, Nylon Cap

414916600

$4.69

53

Link Plate

506113000

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

WASHER - Call your local BRP dealership

503146700

Unavailable

56

Carriage Bolt M6 X 25

207762544

$1.69

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

58

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

59

CAP - Call your local BRP dealership

572045900

Unavailable

60

Stopper

505065900

Unavailable

61

Carriage Bolt M8 X 30

207783044

$2.11

62

Rear Link Plate

517254900

Unavailable
