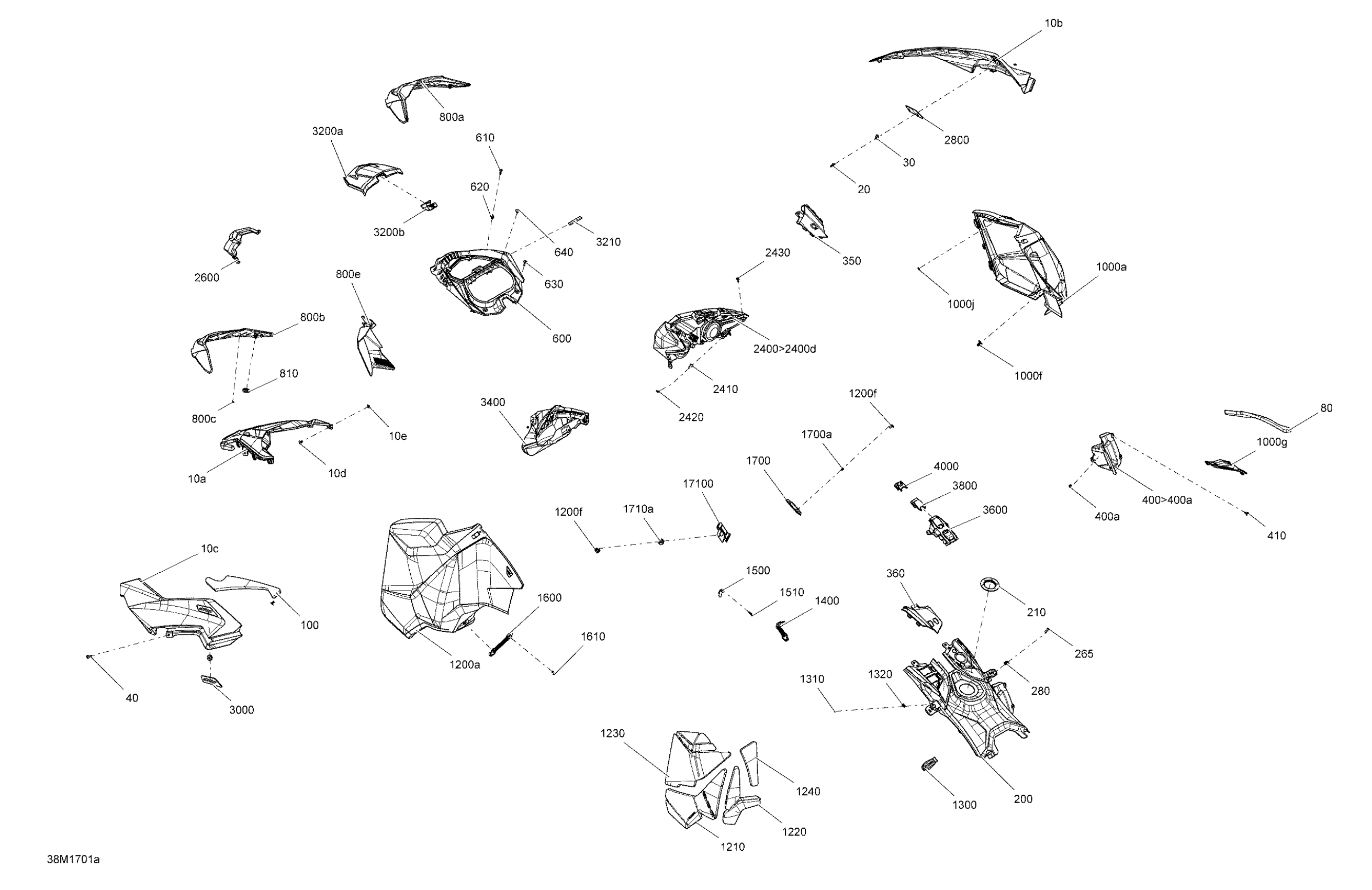

Ski-Doo SUMMIT - 2-STROKE - 800R E-TEC 000CDHB00 000CDHC00 000CDHD00 000CDHE00 000CKHA00 000CKHB00 000CKHC00 000CKHD00 000TEHA00 000TEHB00 000TEHD00 000TEHE00 000TEHF00 000TJHA00 000TJHB00 000TJHC00 Hood - Package SP-T3 Diagram

Deep Black, Center Hood

517304796

$198.43

Deep Black, RH Hood

517305239

$183.82

HOOD RH B-354 - Call your local BRP dealership

517305575

$174.58

Deep Black, LH Hood

517305240

$183.82

HOOD LH B-354 - Call your local BRP dealership

517305576

Unavailable

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

Washer

517124300

$0.16

Torx Screw M5 X 20

250000528

$1.74

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M5 X 26

250000587

$3.61

RH Rear Hood Foam

517305090

$12.69

LH Rear Hood Foam

517305091

$12.69

Deep Black, Rear Console

517305641

$212.28

Yellow Sunburst, Rear Console | Package X

517306133

$196.12

Console Nut

517304518

$13.78

Torx Truss Screw M6 X 20

250000705

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

Deep Black, RH Front Console

517305549

$18.43

Deep Black, LH Front Console

517305128

$29.97

Deep Black RH Console | Package XRS

517305060

$33.82

Black, Cap

275500241

$2.76

Screw M4 X 16

250000725

$2.87

Deep Black, Indicator Support

517305512

$61.51

Torx Screw M5 X 20

250000528

$1.74

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M5 X 26

250000587

$3.61

Black, Dart

414644300

$0.78

Windshield 235mm | Package X

517304921

$159.97

Enjo Pare-Brise*Windshield Tri | Package X This part replaces 517304922.

860200937

$26.89

Push Nut

732610072

$1.72

Grommet

517303756

$3.15

Deep Black - RH Panel | Electric Start

517305507

$286.12

Deep Black - RH Panel | Manual Start

517305508

$286.12

Pin

517305734

$3.40

Push Nut

250100158

$1.74

RH Rear Panel Foam

517305085

$18.43

RH Upper Panel Foam

517305082

$40.74

Deep Black LH Panel

517305510

$189.20

Pin

517305734

$3.40

LH CENTER PANEL FOAM - Call your local BRP dealership

517305087

Unavailable

LH Lower Panel Foam

517305088

$18.43

LH Upper Panel Foam

517305086

$18.43

LH REAR PANEL FOAM - Call your local BRP dealership

517305089

Unavailable

Panel Latch

517305279

$14.85

Hexalob Screw M4 X 10

250000565

$1.74

Weld Nut M4

250100156

$4.25

RH Panel Latch

517303612

$9.49

Latch Support

517304221

$6.49

Torx Screw M5 X 20

250000792

$1.74

LH Panel Latch

517303808

$9.91

Pop Rivet 3/16”

293150108

$1.23

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$12.69

Ring

517305723

$3.31

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$12.69

Ring

517305723

$3.31

Headlamp

517306180

$233.05

Cap

219400070

$16.89

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

Holder Bracket

219800282

$5.49

Spring

219800281

$3.23

Torx Screw M5 X 20

250000528

$1.74

Jack Nut M5

250100035

$6.03

Screw M4 X 16

250000725

$2.87

Headlight Trim Cap

517305010

$35.35

RH Hood Filler Plate, SKI-DOO | Package XRS

517305137

$12.45

LH Hood Filler Plate, SKI-DOO | Package XRS

517305138

Unavailable

Deep Black, Upper Storage Access Cover

517304912

$15.35

Cover Latch

517304917

$10.23

Seal Joint

517305157

$2.28

Deep Black, Trunk

517305095

$18.43

Deep Black, Console Support

517304970

$11.45

Deep Black, Support Console Cap

517305148

$4.66

Deep Black, Support Console Cap

517305147

$4.57
