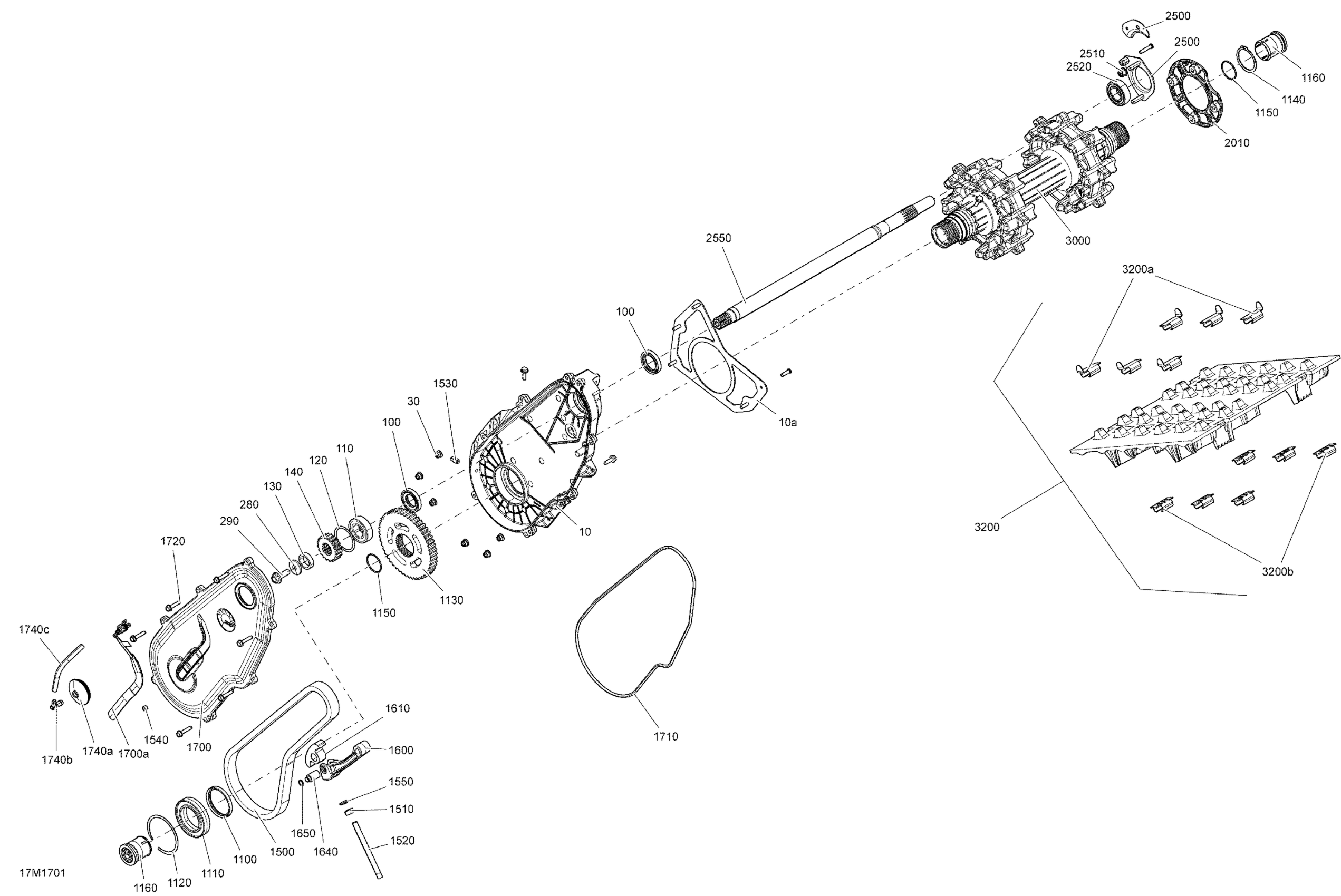

Ski-Doo SUMMIT - 2-STROKE - 600 CARB 000CYHA00 05- Drive System Diagram

Chaincase

504153181

$349.99

Plate | Not Shown

518325816

$79.99

Oil Seal

293200168

$14.49

Ball Bearing

293350115

$12.11

Circlip

504152576

$9.99

Shim

504152628

$10.99

Sprocket, 19 Teeth

504152031

$109.99

Spring Washer M10

504152784

$7.65

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

Oil Seal

293200159

$16.25

Ball Bearing

293350059

$30.99

Circlip

504152582

$9.99

Kit Sprocket This part replaces 504152581.

861805539

$159.99

Circlip

504152572

$6.95

O-Ring

293300122

$2.11

Magnetic Cap

504152619

$23.49

Drive Chain, 104 Links

504152629

$179.99

Hex. Nut M10 X 1.5

232006414

$1.37

Adjustment Screw

504152602

$12.49

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

Not Available As Spare Part - Friction Washer

Unavailable

Bonded Washer

250200100

$2.11

Tensioner chain

504153429

$15.99

Slider Chain

504152739

$65.99

Tensioner Axle

504152841

$16.34

Circlip

504152282

$3.17

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$349.99

Rotation Sensor

504152896

$37.99

Tight Seal

293300130

$7.51

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.11

Cap

504152860

$20.49

Male Connector

414580700

$4.12

Polyurethane Hose 10000Mm Long

219704410

$56.99

Retaining Ring

504153886

$21.99

Bearing Housing

504153185

$29.49

Hex. Flange Elastic Nut M8

233281414

$1.47

Ball Bearing

293350074

$38.49

Countershaft

504153000

$593.49

Drive Axle Ass'y

504154054

$529.99

Track Ass'y 16" X 146" X 2.2"PSH | Includes 3200 to 3200b

504153222

$1.00

Track Guide | Track Width 16''

415129528

$3.29

Cleat

504152651

$9.69
