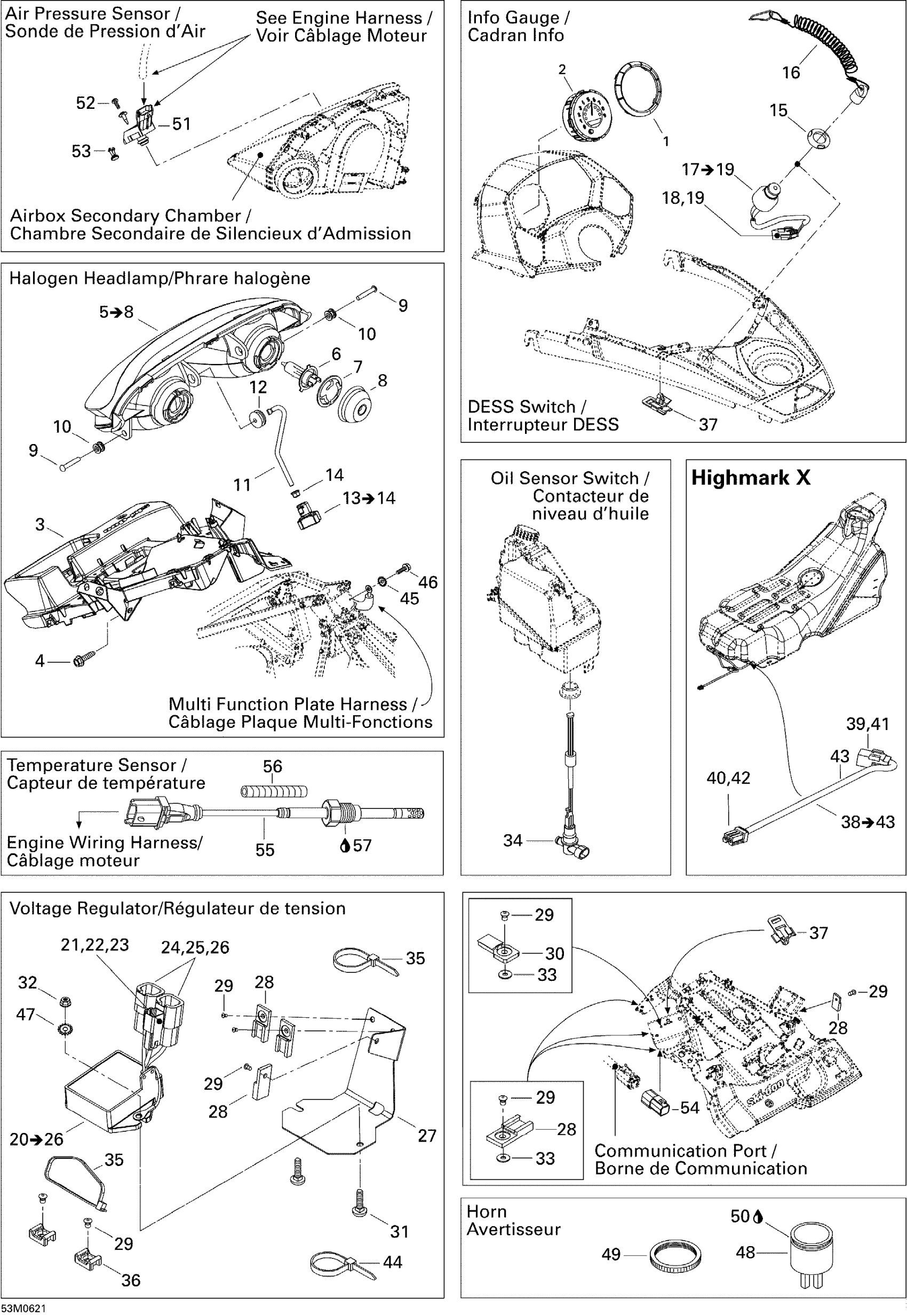

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 Electrical Accessories Diagram

#

Description
Price

1

Gauge Ring This part replaces 515176242.

515179005

$12.69

2

Tachometer

515176305

Unavailable

3

MULTI FUNCTION PLATE - Call your local BRP dealership

515176104

Unavailable

4

Hex. Flange Screw M6 X 16

210261650

$1.22

5

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

6

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

7

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

9

RIVET M6 X 35 - Call your local BRP dealership

293150128

Unavailable

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Safety Nut (DESS Switch)

278002963

$2.72

16

DESS

515178284

$81.51

17

DESS Switch

515177249

$106.12

18

Male Terminal

515175232

$1.49

19

Male Housing, 3 Circuits

515175494

$15.35

20

Voltage Regulator | Includes 32 to 38

515176243

$345.35

21

Male Housing, 2 Circuits

409206900

$8.98

22

Male Terminal

278000631

$4.12

23

Male Lock, 2 Circuits

409207500

$3.02

24

Female Housing, 4 Circuits

278000635

$14.02

25

Male Terminal

515175568

$7.48

26

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

27

Housing Support

515176167

Unavailable

28

Clip

270000141

$8.33

29

Avdel Rivet 3/16"

293150037

$0.47

30

DEUTSCH GRAY CLIP - Call your local BRP dealership

515176209

Unavailable

31

Carriage Bolt M6 X 25

207762544

$1.39

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Flat Washer

517225900

$0.17

34

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

35

Tie Wrap 368 mm

293750008

$0.85

36

Tie Rap Mount (screwable)

515176795

$5.11

37

Housing Support

515175283

$8.43

38

TAIL LIGHT HARNESS - Call your local BRP dealership | Includes 2 to 7

515176380

Unavailable

39

Male Terminal

515175232

$1.49

40

Female Terminal

515175231

$4.12

41

Male Housing, 3 Circuits

515175494

$15.35

42

Female Housing, 3 Circuits

515175495

$15.35

43

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

44

Tie-Rap 180 mm

414115200

$0.09

44

Tie Wrap 142 mm

293750002

$0.88

44

Tie-Rap 173 mm

293750009

$0.85

45

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

46

Hex. Flange Screw M6 X 12

210261250

$1.56

47

Lock Washer Serrated M6

250200041

$0.92

48

HORN - Call your local BRP dealership

515176035

Unavailable

49

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

50

Silicone Sealant 51388, 300 ml

296000309

$35.72

51

Pressure Sensor

270600040

$157.92

52

Tuflock Phillips Plastic Screw

414745900

$1.30

53

CAP - Call your local BRP dealership

508000465

Unavailable

54

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

55

Temperature Sensor

515176132

Unavailable

56

Tubing 6 Mm 3000Mm Long

219704425

$13.14

57

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
