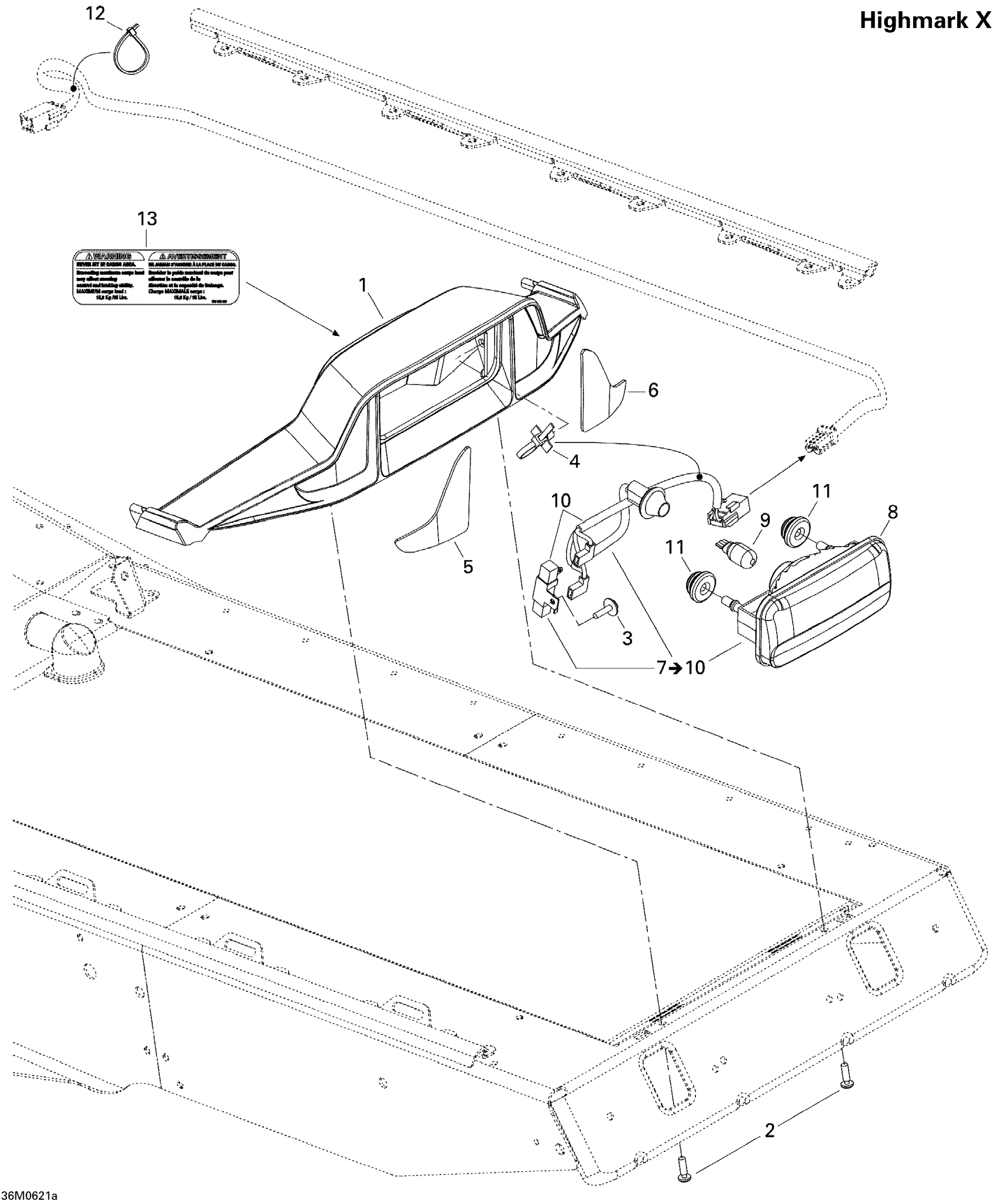

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 Luggage Rack HMX Diagram

#

Description

Price

1

Light Support

511000447

Unavailable

2

Torx Screw K50 X 16

250000720

$1.60

3

Screw M4 X 16

250000725

$3.30

4

Tie-Rap 173 mm

293750009

$0.97

5

REAR REFLECTOR - Call your local BRP dealership

511000459

Unavailable

6

REAR REFLECTOR - Call your local BRP dealership

511000460

Unavailable

7

REAR LIGHT ASS'Y - Call your local BRP dealership | Includes 12 to 15

511000446

Unavailable

8

Rear Lens Box | MX Z X 600RS

710000652

Unavailable

9

BULB - Call your local BRP dealership | MX Z X 600RS

710000653

Unavailable

10

Wiring Harness

511000445

Unavailable

11

Stopper Rubber

705014429

$6.09

12

Tie Wrap 94 mm | 4X4

293750001

$0.96

13

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
