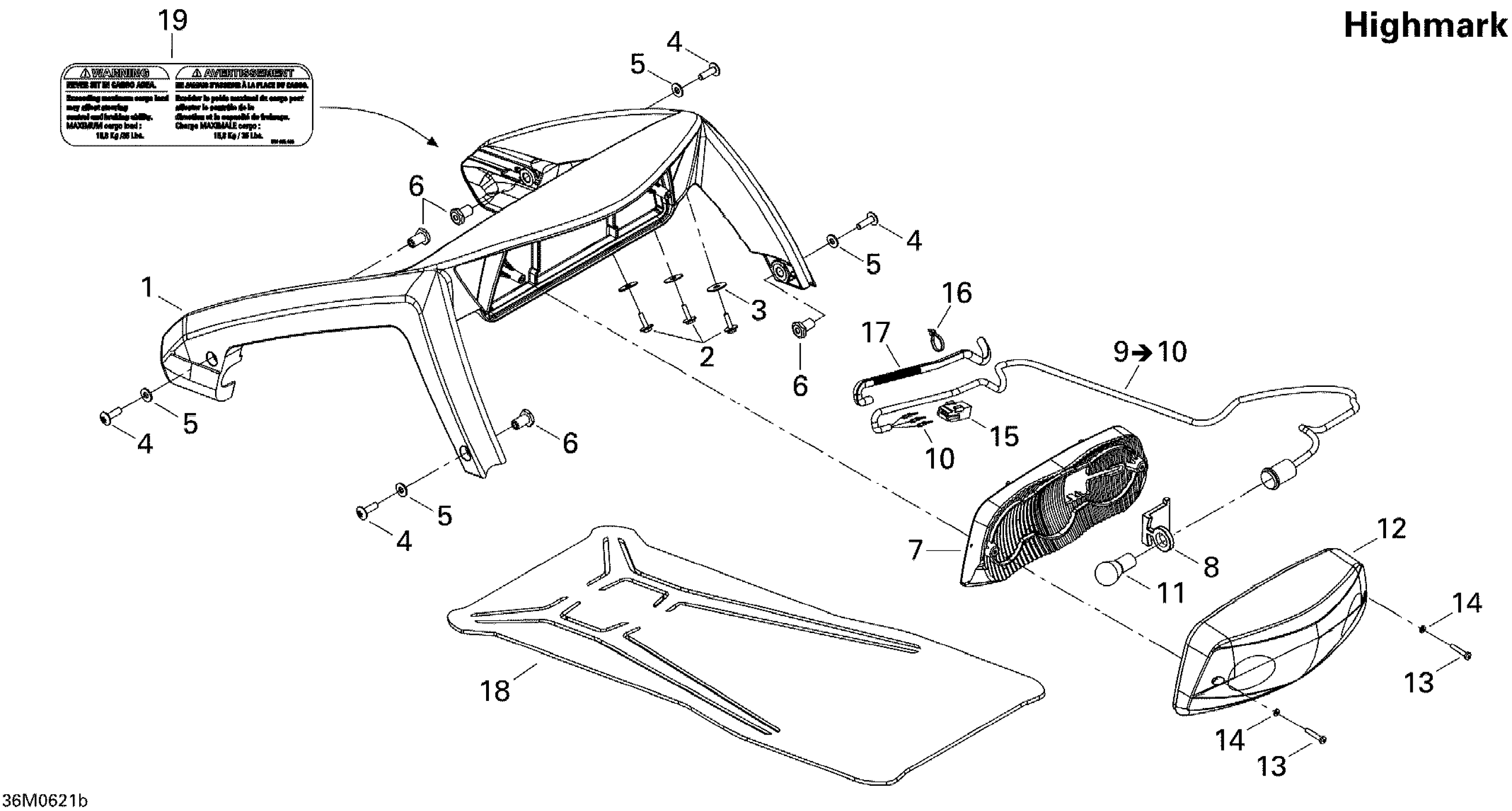

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 09- Luggage Rack HM Diagram

#

Description
Price

1

Luggage Rack

511000425

Unavailable

2

Self Tapping Screw #8 X 5/8

250000202

$1.48

3

Flat Washer

250200040

$1.90

4

Torx Screw M6 X 20

250000722

$1.68

5

Flat Washer

250200039

$0.74

6

INSERT - Call your local BRP dealership

511000398

Unavailable

7

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

8

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

9

BULB SOCKET - Call your local BRP dealership | Includes 9 to 10

511000466

Unavailable

10

Male Terminal

515175232

$1.58

11

Bulb

520000758

$9.10

12

Lens

511000315

$36.99

13

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

14

Washer - Call your local BRP dealership

414516400

Unavailable

15

Male Housing, 3 Circuits

515175494

$16.18

16

Tie Wrap 94 mm | 4X4

293750001

$1.03

17

Tubing 6 Mm 3000Mm Long

219704425

$13.75

18

Carpet | Model RT-162

511000371

Unavailable

18

Carpet | Model RT-151

520000529

Unavailable

19

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable
