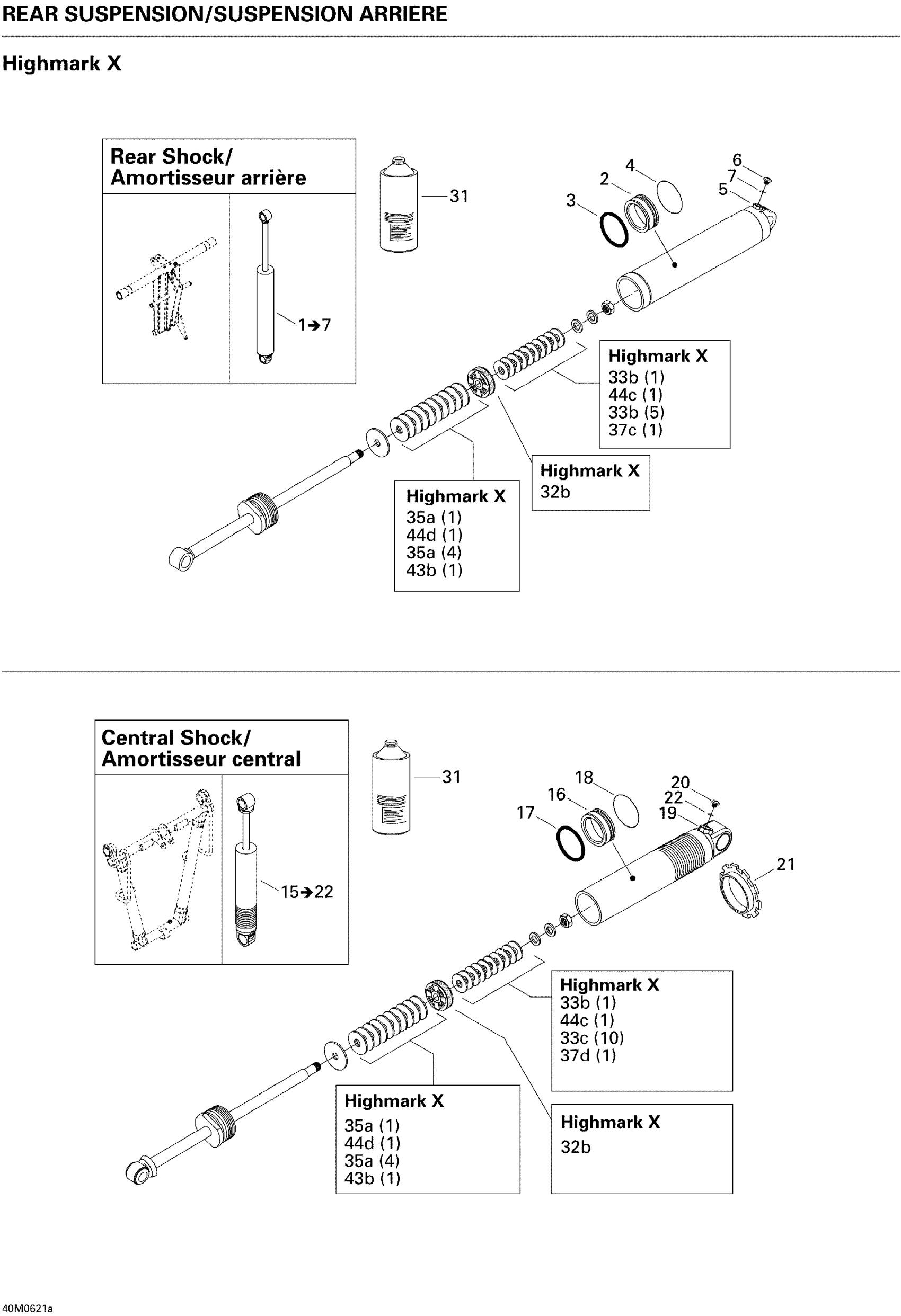

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 08- Take Apart Shock, Rear HMX Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership | Europe

503190990

Unavailable

2

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

3

O-Ring

414888312

$17.29

4

Piston Ring

503189308

$79.49

5

Air Valve

505070398

$20.99

6

Screw | Not Shown

505070399

$4.12

7

O-Ring

505070400

$4.54

15

CENTER SHOCK - Call your local BRP dealership | Europe

503190662

Unavailable

16

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

17

O-Ring

414888312

$17.29

18

Piston Ring

503189308

$79.49

19

Air Valve

505070398

$20.99

20

Screw | Not Shown

505070399

$4.12

21

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

22

O-Ring

505070400

$4.54

31

Shock Oil, 1 Liter

293600035

$73.99

32a

Piston (C36)

414888304

Unavailable

32b

Not Available As Spare Part - Friction Washer

Unavailable

32c

Piston (2 X 0.3-2) (C36)

414888305

Unavailable

32d

Not Available As Spare Part - Friction Washer

Unavailable

32e

Piston (2 X 0.3-4) (C36)

414888306

Unavailable

32f

Not Available As Spare Part - Friction Washer

Unavailable

32g

Piston (2 X 0.3-6) (C36)

414888307

Unavailable

33a

Leaf Valve Ø30 X 0.254 (C36)

415039100

Unavailable

33b

Leaf Valve Ø30 X 0.203 (C36)

414888318

Unavailable

33c

Leaf Valve Ø30 X 0.152 (C36)

414888319

Unavailable

33d

Not Available As Spare Part - Friction Washer

Unavailable

34a

Not Available As Spare Part - Friction Washer

Unavailable

34b

Leaf Valve Ø28 X 0.203 (C36)

414888320

Unavailable

34c

Leaf Valve Ø28 X 0.152 (C36)

414888321

Unavailable

34d

Not Available As Spare Part - Friction Washer

Unavailable

35a

Leaf Valve Ø26 X 0.254 (C36)

415039000

Unavailable

35b

Leaf Valve Ø26 X 0.203 (C36)

414888322

Unavailable

35c

Leaf Valve Ø26 X 0.152 (C36)

414888323

Unavailable

35d

Not Available As Spare Part - Friction Washer

Unavailable

36a

Not Available As Spare Part - Friction Washer

Unavailable

36b

Not Available As Spare Part - Friction Washer

Unavailable

36c

Not Available As Spare Part - Friction Washer

Unavailable

36d

Not Available As Spare Part - Friction Washer

Unavailable

37a

Not Available As Spare Part - Friction Washer

Unavailable

37b

Leaf Valve Ø22 X 0.203 (C36)

414888324

Unavailable

37c

Leaf Valve Ø22 X 0.152 (C36)

414888325

Unavailable

37d

Not Available As Spare Part - Friction Washer

Unavailable

38a

Not Available As Spare Part - Friction Washer

Unavailable

38b

Not Available As Spare Part - Friction Washer

Unavailable

38c

Not Available As Spare Part - Friction Washer

Unavailable

38d

Leaf Valve Ø21 X 0.114 (C36)

414888340

Unavailable

39a

Not Available As Spare Part - Friction Washer

Unavailable

39b

Leaf Valve Ø20 X 0.203 (C36)

414888326

Unavailable

39c

Leaf Valve Ø20 X 0.152 (C36)

414888327

Unavailable

39d

Leaf Valve Ø20 X 0.114 (C36)

414888328

Unavailable

40a

Not Available As Spare Part - Friction Washer

Unavailable

40b

Not Available As Spare Part - Friction Washer

Unavailable

40c

Not Available As Spare Part - Friction Washer

Unavailable

40d

Not Available As Spare Part - Friction Washer

Unavailable

41a

Not Available As Spare Part - Friction Washer

Unavailable

41b

Leaf Valve Ø18 X 0.203 (C36)

414888329

Unavailable

41c

Leaf Valve Ø18 X 0.152 (C36)

414888330

Unavailable

41d

Not Available As Spare Part - Friction Washer

Unavailable

42a

Not Available As Spare Part - Friction Washer

Unavailable

42b

Not Available As Spare Part - Friction Washer

Unavailable

42c

Not Available As Spare Part - Friction Washer

Unavailable

42d

Not Available As Spare Part - Friction Washer

Unavailable

43a

Leaf Valve Ø16 X 0.254 (C36)

414888331

Unavailable

43b

Leaf Valve Ø16 X 0.203 (C36)

414888332

Unavailable

43c

Leaf Valve Ø16 X 0.152 (C36)

414888333

Unavailable

43d

Leaf Valve Ø16 X 0.114 (C36)

415038900

Unavailable

44a

Leaf Valve Ø15 X 0.254 (C36)

414888334

Unavailable

44b

Leaf Valve Ø15 X 0.203 (C36)

414888335

Unavailable

44c

Leaf Valve Ø15 X 0.152 (C36)

414888336

Unavailable

44d

Leaf Valve Ø15 X 0.114 (C36)

414888337

Unavailable

45a

Not Available As Spare Part - Friction Washer

Unavailable

45b

Not Available As Spare Part - Friction Washer

Unavailable

45c

Not Available As Spare Part - Friction Washer

Unavailable

45d

Not Available As Spare Part - Friction Washer

Unavailable

46a

Not Available As Spare Part - Friction Washer

Unavailable

46b

Not Available As Spare Part - Friction Washer

Unavailable

46c

Not Available As Spare Part - Friction Washer

Unavailable

46d

Not Available As Spare Part - Friction Washer

Unavailable

47a

Leaf Valve Ø12 X 0.254 (C36)

503189538

Unavailable

47b

Leaf Valve Ø12 X 0.203 (C36)

414888338

Unavailable

47c

Leaf Valve Ø12 X 0.152 (C36)

414888339

Unavailable

47d

Leaf Valve Ø12 X 0.114 (C36)

415038800

Unavailable
