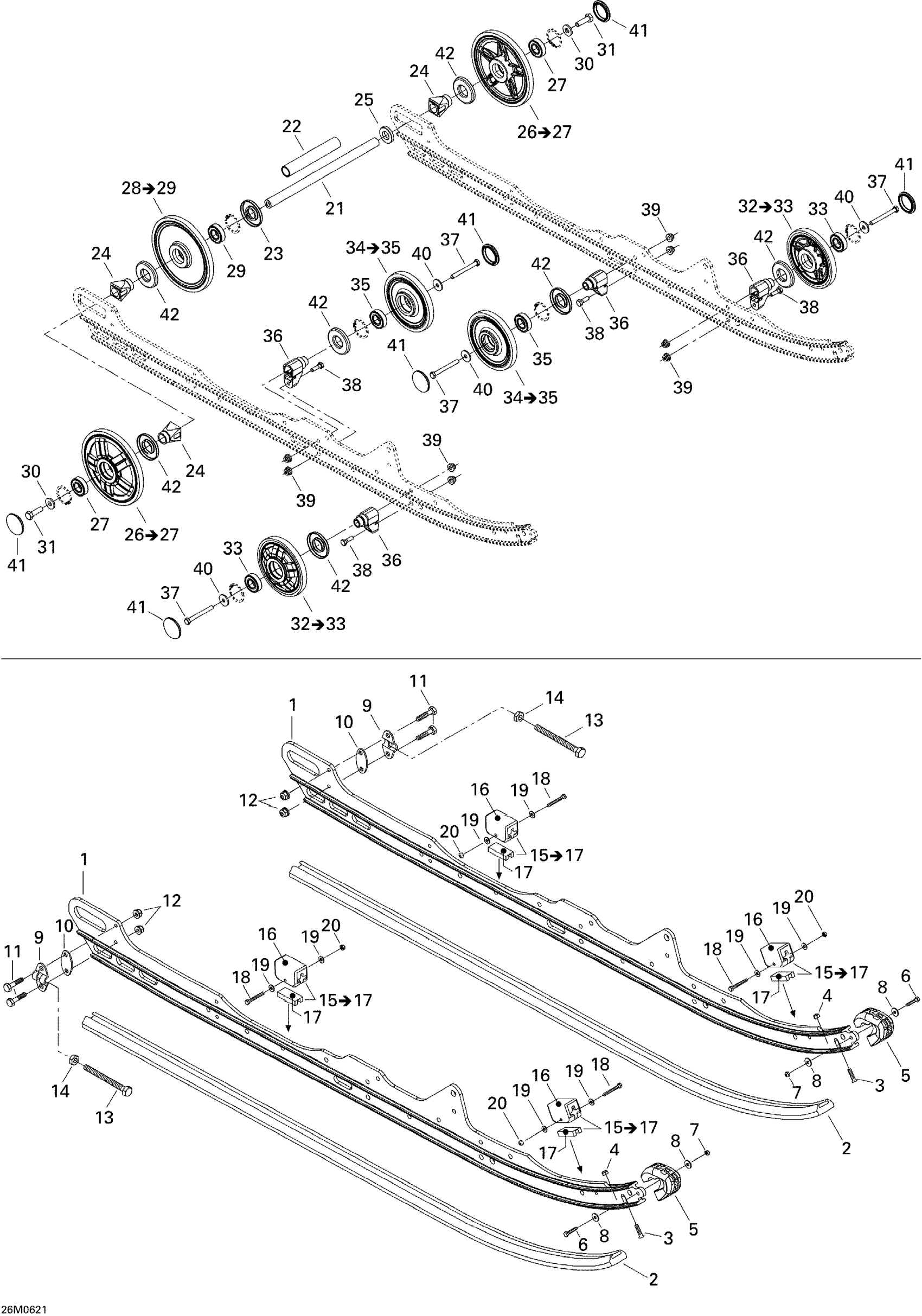

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 Rear Suspension Diagram

#

Description
Price

1

RUNNER 162 - Call your local BRP dealership

503190818

Unavailable

1

RUNNER 151 - Call your local BRP dealership

503191050

Unavailable

2

Rail 151", Black

503190368

Unavailable

2

RAIL 151, YELLOW - Call your local BRP dealership

503190383

Unavailable

2

Shoe Slider 162", Yellow | 162" Track

503190864

Unavailable

2

SHOE SLIDER 162, BLACK - Call your local BRP dealership

503190866

Unavailable

3

Phillips Screw M6 X 25

208562560

$1.92

4

Elastic Stop Nut M6

232561414

$1.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.72

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$0.98

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.68

15

RUBBER STOPPER ASS'Y - Call your local BRP dealership

503190905

Unavailable

16

Rubber Stopper

570063000

Unavailable

17

Reinforcement Stopper

572084800

$5.25

18

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

19

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

20

Elastic Stop Nut M5

232551414

$0.72

21

Rear Axle

503190429

$59.97

22

Spacer

503196317

$15.35

23

Labyrinth Seal

503190682

$5.85

24

Rear Wheel Spacer

503190428

$6.06

25

Washer

503190432

$12.52

26

Wheel 180 With Pattern Ass'y, Yellow | Includes 34 to 35

503190342

$49.97

26

WHEEL 180, FULL MOON - Call your local BRP dealership | Includes 34 to 35

503190752

Unavailable

26

WHEEL 180 WITH PATTERN ASS'Y, RED - Call your local BRP dealership | Includes 34 to 35

503191103

Unavailable

27

Ball Bearing | Package-STD

503190396

$7.12

28

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$49.97

29

Ball Bearing | Package-STD

503190396

$7.12

30

Washer

503190439

$5.82

31

Hex. Screw With Nylon

250000019

$1.42

32

WHEEL 147 WITH PATTERN ASS'Y, FULL MOON - Call your local BRP dealership | Includes 15 to 16

503191317

Unavailable

32

WHEEL 147 WITH PATTERN ASS'Y, YELLOW - Call your local BRP dealership | Includes 15 to 16

503191319

Unavailable

32

WHEEL 147 WITH PATTERN ASS'Y, RED - Call your local BRP dealership | Includes 32 to 33

503191320

Unavailable

33

Ball Bearing | Package-STD

503190396

$7.12

34

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

35

Ball Bearing | Package-STD

503190396

$7.12

36

Support

503190580

Unavailable

37

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

38

Hex. Screw M8 X 25

207182544

$0.74

39

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Washer

211200041

$2.63

41

Wheel Cap

570063600

$3.28

42

Labyrinth Seal

503190434

$4.29
