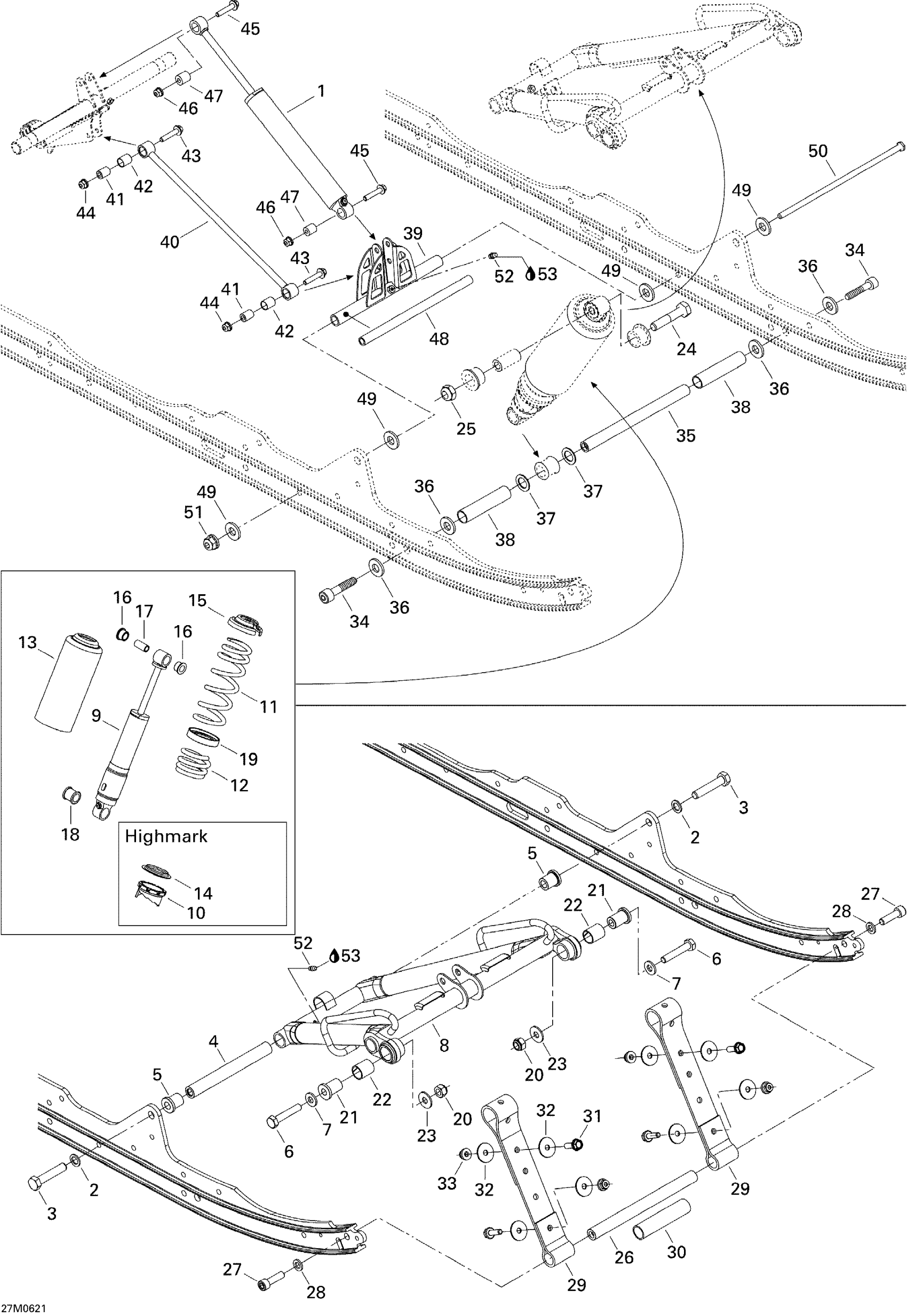

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 08- Front Arm Diagram

#

Description
Price

1

Rear Shock | Highmark

503190989

Unavailable

1

REAR SHOCK - Call your local BRP dealership | Europe

503190990

Unavailable

1

REAR SHOCK - Call your local BRP dealership | Europe

503190990

Unavailable

2

Washer

503189276

$3.28

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$2.22

7

Washer

732900049

$0.58

8

FRONT ARM - Call your local BRP dealership

503191142

Unavailable

9

CENTER SHOCK - Call your local BRP dealership | Europe

503190662

Unavailable

9

CENTER SHOCK - Call your local BRP dealership | Europe

503190662

Unavailable

9

Center Shock

503190981

Unavailable

10

Adjustment Cam

505073625

$12.99

11

Spring

503190854

$67.99

12

Spring

503190982

$30.49

13

Protector

503193663

$37.99

14

Spring Guide

503191872

$2.29

15

Spring Stopper

706200881

$12.99

16

Urethane Bushing

503189117

$8.19

17

Bushing | Includes 240d to 240d1

503189282

$4.34

18

Bushing

503189271

$13.99

19

Spring Spacer

505071685

Unavailable

20

Elastic Locking Nut M10 X 1.5

233601416

$1.69

21

EXTENSION - Call your local BRP dealership

503190373

Unavailable

22

EXTENDED BUSHING - Call your local BRP dealership

503190474

$11.99

23

Flat Washer M10 | 4X4

250200014

$1.49

24

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

25

Elastic Stop Nut M10

232500416

$1.90

26

AXLE - Call your local BRP dealership

503189562

Unavailable

27

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

28

Washer

503189564

$0.74

29

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

30

Spacer

503189265

$4.99

31

Hex. Flange Screw M8 X 25

207682544

$1.35

32

Flat Washer

224081301

$0.88

33

Hex. Flange Elastic Nut M8

233281414

$1.47

34

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

35

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

36

Washer

503189276

$3.28

37

Washer

503189273

$3.28

38

SPACER - Call your local BRP dealership

503189274

Unavailable

39

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

40

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

41

BUSHING - Call your local BRP dealership

503189133

Unavailable

42

CUSHION - Call your local BRP dealership

503189625

Unavailable

43

Hex. Flange Screw M8 X 40

207684044

$1.48

44

Elastic Flange Nut M8

250100025

$1.48

45

Hex. Flange Screw M8 X 40

207684044

$1.48

46

Elastic Flange Nut M8

250100025

$1.48

47

Bushing

414936000

$13.99

48

Pivot Arm Axle

503189156

$21.99

49

Washer

503189157

$3.28

50

Bolt M8 X 248mm

503192440

$30.49

51

Elastic Flange Nut M8

250100025

$1.48

52

Grease Fitting

408200700

$3.49

53

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
