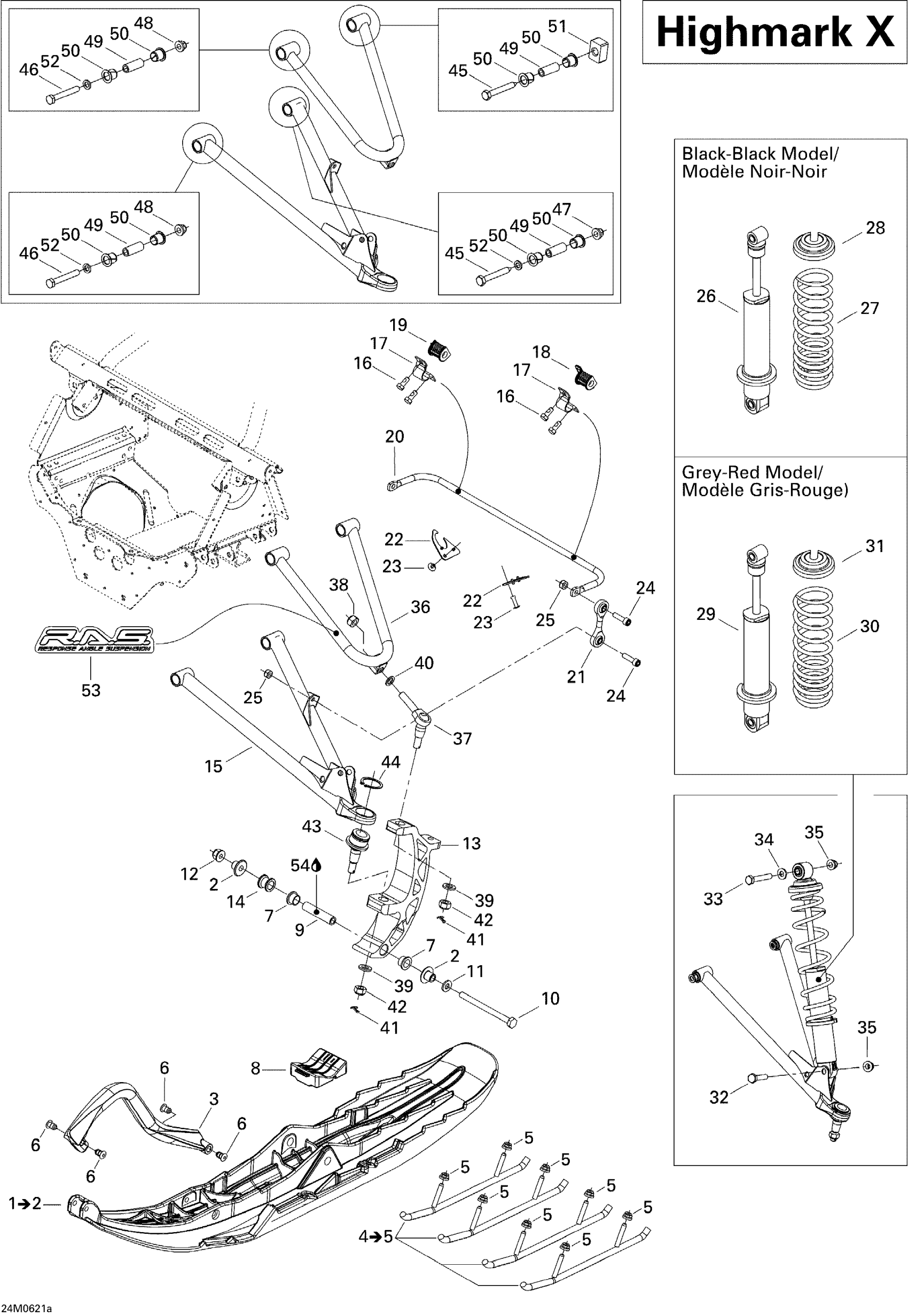

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 Front Suspension And Ski HMX Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$170.12

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$170.12

2

Ski Bushing

505071781

$14.90

3

Black, Handle

505070963

$34.30

3

Viper Red Handle

505071059

$35.79

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$130.57

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Retainer 17mm long

505071812

$4.30

7

Leg Bushing

505072690

$5.75

8

Ski Stopper

505071779

$15.64

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

11

Washer

732900049

$0.55

12

Flange Nut M10

732610084

$6.30

13

SKI LEG - Call your local BRP dealership

505071248

Unavailable

14

SPACER - Call your local BRP dealership

505071215

Unavailable

15

RH LOWER ARM - Call your local BRP dealership

505071742

Unavailable

15

LH Lower Arm

505071745

Unavailable

16

Hex. Screw With Nylon

250000118

Unavailable

17

CLAMP - Call your local BRP dealership

506095800

Unavailable

18

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

19

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

20

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

21

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

22

PLUG - Call your local BRP dealership

505071253

Unavailable

23

Pop Rivet 3/16"

293150103

$0.52

24

Socket Head Screw M8 X 30

205083044

$1.06

25

Hex. Elastic Stop Nut M8

232581414

$0.54

26

Front Shock | Includes 34 to 36, Europe

505071457

Unavailable

27

SPRING - Call your local BRP dealership | Black-Black

505071647

Unavailable

28

Spring Stopper

706200881

$11.82

29

Front Shock | Includes 34 to 36, Europe

505071457

Unavailable

30

SPRING - Call your local BRP dealership | Highmark X

505071840

Unavailable

31

Spring Stopper

706200881

$11.82

32

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

33

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

34

Washer

503189564

$0.70

35

Hex. Flange Elastic Nut M10

233201414

$1.45

36

RH UPPER ARM - Call your local BRP dealership

505071857

Unavailable

36

LH UPPER ARM - Call your local BRP dealership

505071859

Unavailable

37

Upper Ball Joint

505071872

Unavailable

38

Hex. Flange Elastic Nut M12

250000047

$1.79

39

Flat Washer 12 mm

234021410

$0.66

40

Washer

503189276

$3.10

41

Cotter Pin

211400017

$0.28

42

Hex. Flange Elastic Nut M12

250000047

$1.79

43

Ball Joint

505073636

$48.48

44

Circlip

293370035

$2.48

45

Hex. Screw M10 X 75

250001063

$11.18

46

Hex. Screw M10 X 75

250001063

$11.18

47

Hex. Flange Elastic Nut M10

250100165

$0.81

48

Hex. Flange Elastic Nut M10

250100165

$0.81

49

Aluminium Bushing

505070960

$10.84

50

Arm Bushing

505070566

$3.04

51

RECTANGULAR NUT - Call your local BRP dealership

505071695

Unavailable

52

Washer

503189564

$0.70

53

R.a.s. Suspension Decal

516002747

Unavailable

54

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
