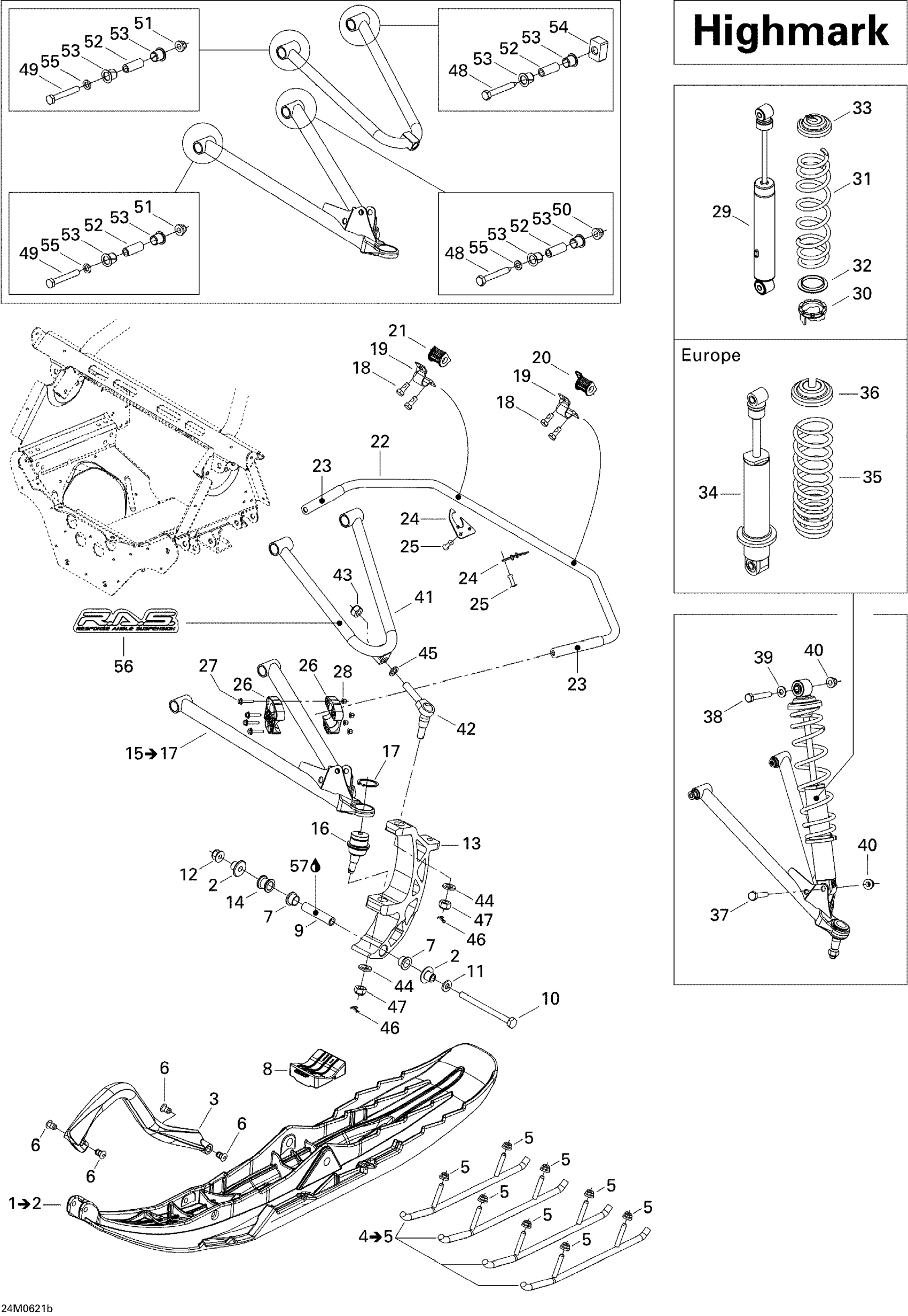

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 07- Front Suspension And Ski HM Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$179.99

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$179.99

2

Ski Bushing

505071781

$16.18

3

Black, Handle

505070963

$35.99

3

Viper Red Handle

505071059

$37.99

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$92.99

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Retainer 17mm long

505071812

$5.95

7

Leg Bushing

505072690

$12.49

8

Ski Stopper

505071779

$18.78

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

11

Washer

732900049

$0.58

12

Flange Nut M10

732610084

$6.79

13

SKI LEG - Call your local BRP dealership

505071248

Unavailable

14

SPACER - Call your local BRP dealership

505071215

Unavailable

15

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512900

Unavailable

15

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512800

Unavailable

16

Ball Joint

505073636

$51.99

17

Circlip

293370035

$2.64

18

Hex. Screw With Nylon

250000118

Unavailable

19

CLAMP - Call your local BRP dealership

506095800

Unavailable

20

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

21

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

22

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

23

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

24

PLUG - Call your local BRP dealership

505071253

Unavailable

25

Pop Rivet 3/16"

293150103

$0.55

26

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

26

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

27

Hex. Flange Screw M5 X 25

207652544

$0.50

28

Hex. Flange Elastic Nut M5

233251414

$1.04

29

FRONT SHOCK - Call your local BRP dealership

505071455

Unavailable

30

Adjustment Cam

505073625

$12.99

31

SPRING - Call your local BRP dealership | Red-Black

505071838

Unavailable

31

FULL MOON SPRING - Call your local BRP dealership

505071849

Unavailable

32

Spring Guide

503191872

$2.29

33

Spring Stopper

706200881

$12.99

34

Front Shock | Includes 34 to 36, Europe

505071457

Unavailable

35

SPRING - Call your local BRP dealership | Highmark X

505071840

Unavailable

36

Spring Stopper

706200881

$12.99

37

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

38

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

39

Washer

503189564

$0.74

40

Hex. Flange Elastic Nut M10

233201414

$1.58

41

RH UPPER ARM - Call your local BRP dealership

505071857

Unavailable

41

LH UPPER ARM - Call your local BRP dealership

505071859

Unavailable

42

Upper Ball Joint

505071872

Unavailable

43

Hex. Flange Elastic Nut M12

250000047

$1.90

44

Flat Washer 12 mm

234021410

$0.72

45

Washer

503189276

$3.28

46

Cotter Pin

211400017

$0.33

47

Hex. Flange Elastic Nut M12

250000047

$1.90

48

Hex. Screw M10 X 75

250001063

$13.16

49

Hex. Screw M10 X 75

250001063

$13.16

50

Hex. Flange Elastic Nut M10

250100165

$0.85

51

Hex. Flange Elastic Nut M10

250100165

$0.85

52

Aluminium Bushing

505070960

$14.15

53

Arm Bushing

505070566

$3.28

54

RECTANGULAR NUT - Call your local BRP dealership

505071695

Unavailable

55

Washer

503189564

$0.74

56

R.a.s. Suspension Decal

516002747

Unavailable

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
