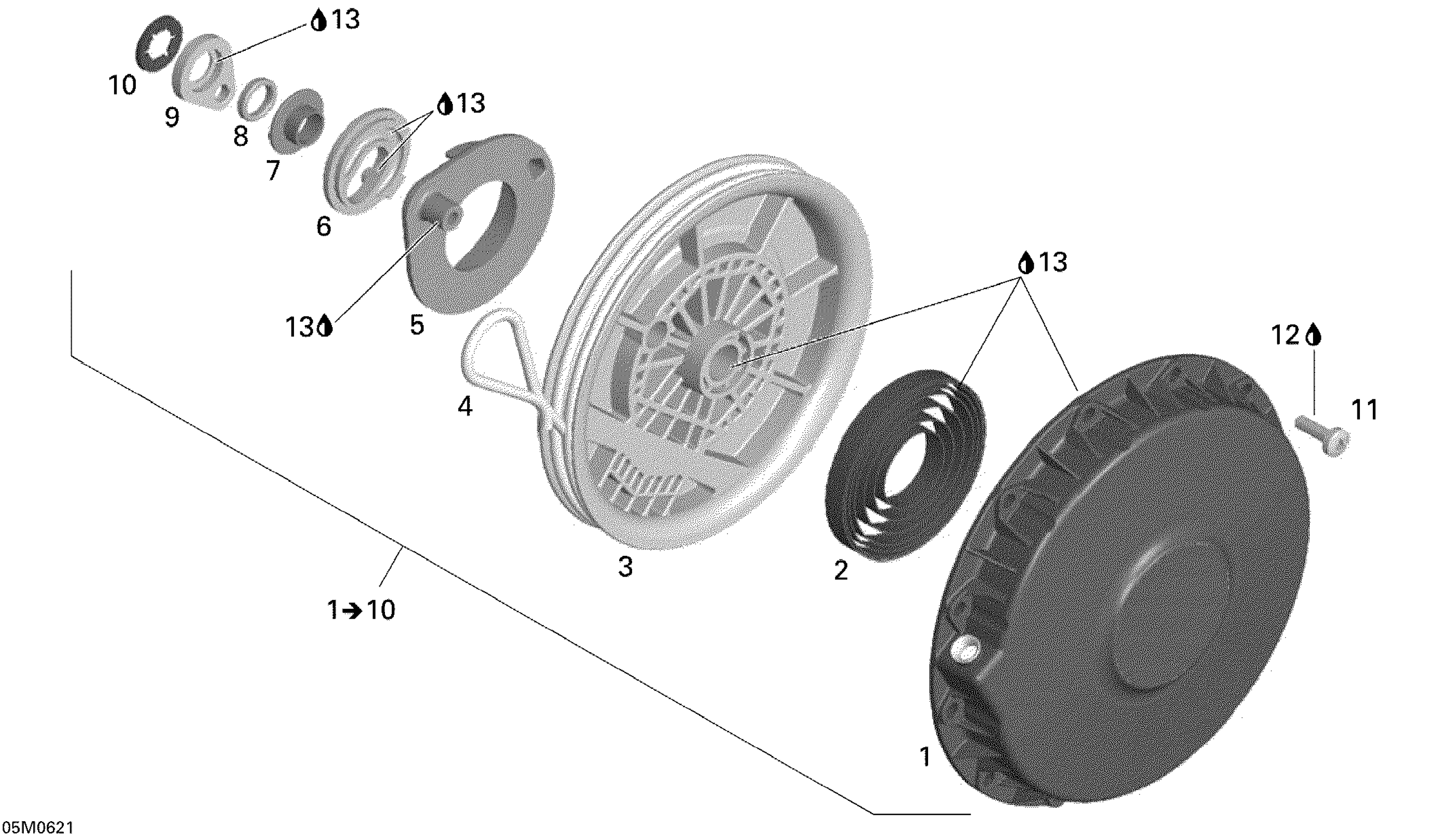

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2006 Rewind Starter Diagram

#

Description

Price

1

REWING STARTER ASS'Y - Call your local BRP dealership | Includes 1 to 10

420889767

Unavailable

1

Starter Housing

420910256

$89.20

2

Rewind Spring

420939115

$25.32

3

Rope Sheave

420852288

$39.97

4

Was 412500100 Rope-Starter

219704403

$10.15

5

Pawl

420852610

$29.20

6

PAWL LOCK - Call your local BRP dealership

420852304

Unavailable

7

Stage Sleeve

420847926

$14.54

8

O-Ring

420250407

$1.85

9

Lock Ring

420852520

$8.34

10

Locking Element

420845560

$2.03

11

Torx Flange Screw M6 X 20

420441386

$2.06

12

Loctite 243, 10 ml

293800060

$20.77

13

Molykote PG 54, 10 g

420899763

$18.82
